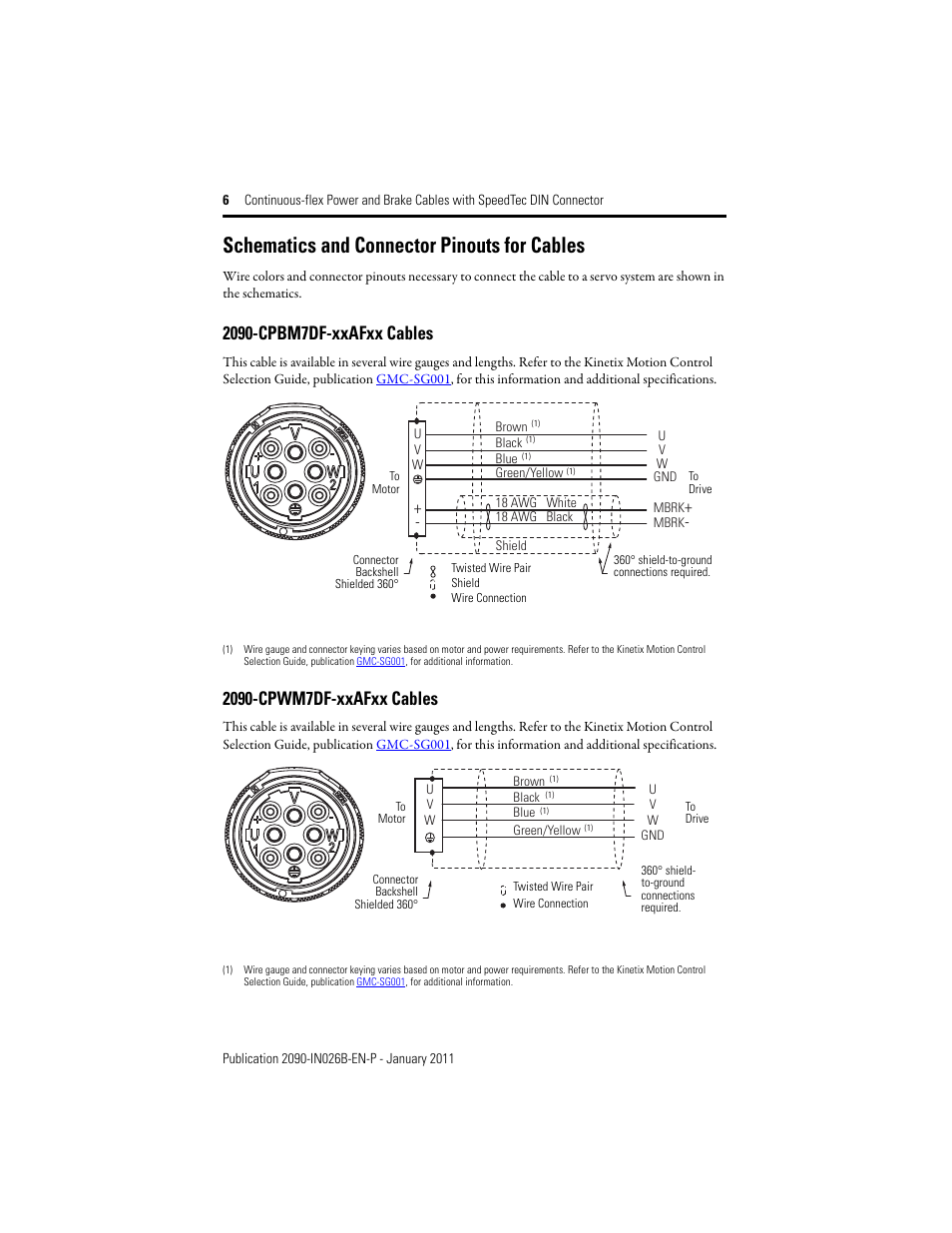

Schematics and connector pinouts for cables, 2090-cpbm7df-xxafxx cables, 2090-cpwm7df-xxafxx cables – Rockwell Automation 2090-CPBM7DF-08AF Continuous-flex Power Cables with SpeedTec DIN Connector Installation Instruction User Manual

Page 6
