Fan Replacement (5, 7, 11, and 15-inch)
5
Publication 2300-5.10 - January 1999
Replacing 15-inch Fans
1. Using a meter, verify that there is no voltage remaining in the
unit. Check for voltage across the fan terminal block
.
2. Disconnect the fan power leads from the terminal block (as
shown in Figure 3, step 2).
3. Remove the four mounting screws from the fan mounting
brackets (as shown in Figure 3, step 3) and remove the fan.
4. Feed the power leads for the new fan through the hole in the
door.
5. Secure the new fan to the door with the four mounting
screws.
6. Connect the fan power leads to the terminal block (see
Figure 3, step 6).

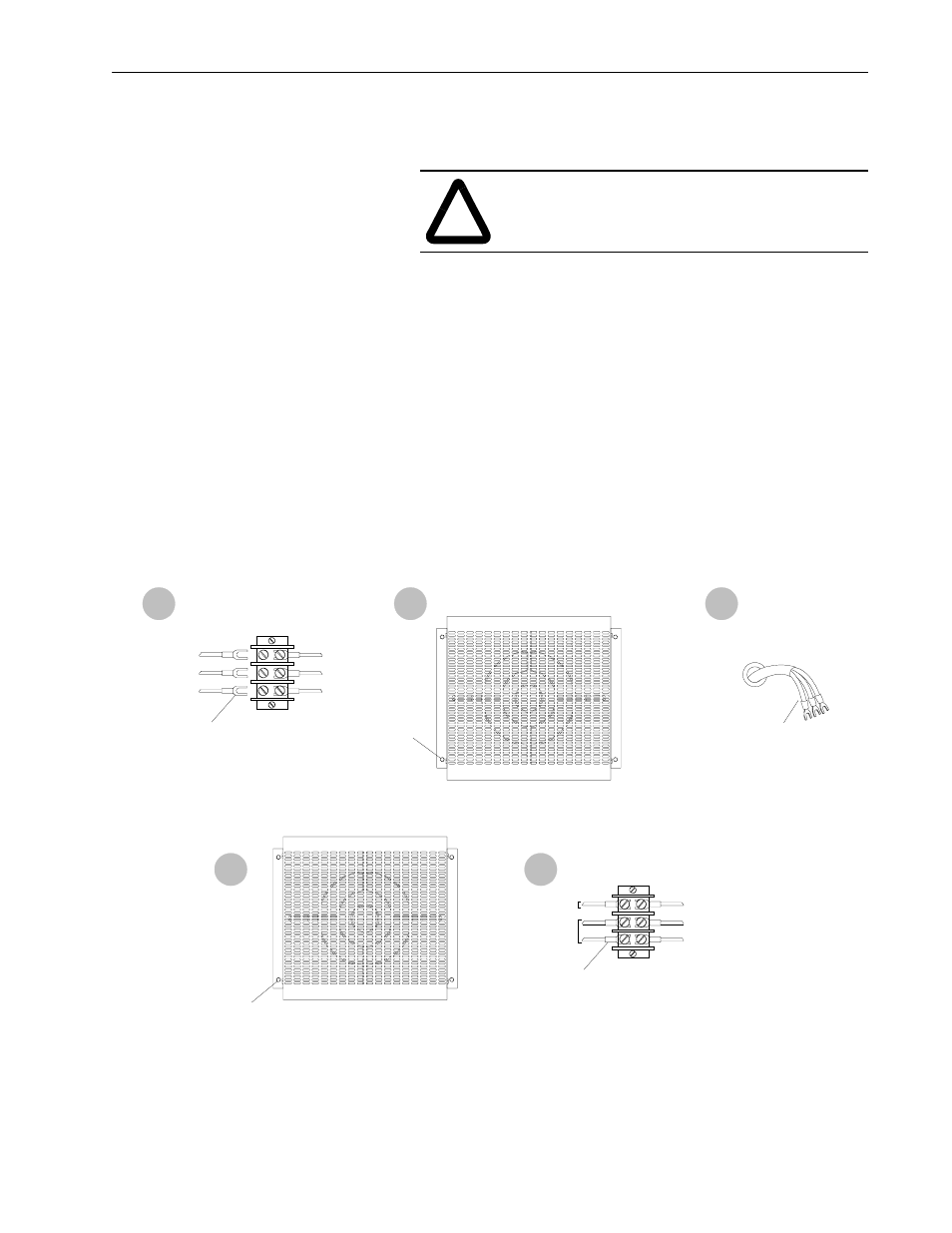

Figure 3
Replacing 15-inch Fans
!
ATTENTION: If there is any voltage present,
remove the source of the voltage and check for
voltages again before proceeding to the next step.
To
F
a
n
To
S
o
u
rc
e
Remove
leads
115V AC
Gn
d
2
To
F
an
To
S
o
u
rc
e
Secure
leads
Remove
screws
Secure
screws
3
4
5
6
Wire polarity of the 115V AC wiring does not affect
the fan operation. However, the ground wire must
be connected to ground.
Feed leads
through door
