Fuse replacement – Rockwell Automation 2706 Dataliner 10 Message Display User Manual
Page 13
Dataliner DL10 Message Display
13
Fuse Replacement
The four line Series B and later DL10 display has two fuses. To determine if one
of the fuses is bad, remove power to the display and then remove the top cover of
the display by loosening the three cover screws. Check and replace one or both
fuses if necessary.
Main Fuse – 1.5 Amp, Type MDL, 250V ac
FU1 on Auxiliary Power Supply – 0.375 Amp, Type MDL, 250V ac.

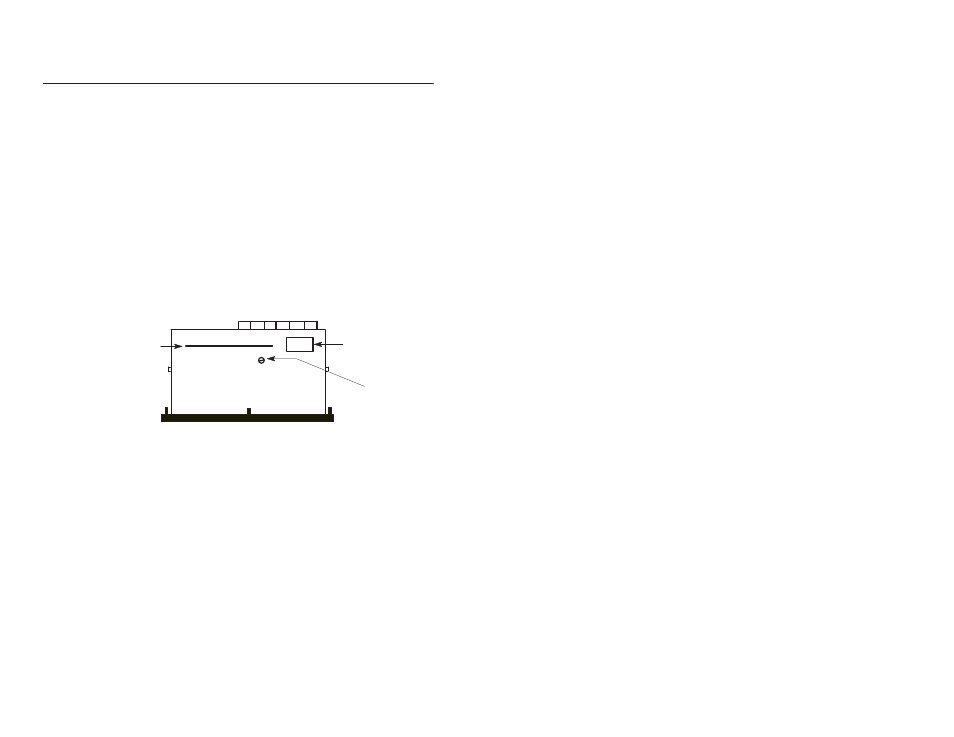

Top View (cover off)
Main Fuse
Auxiliary Power
Supply Board
Auxiliary Power
Supply Fuse
(FU1)
Display Front
