Page 10

6
Re-installing a Separately Shipped Common Mode Choke (CMC) • Installation Instructions
Publication 7000-IN003B-EN-P – June 2013

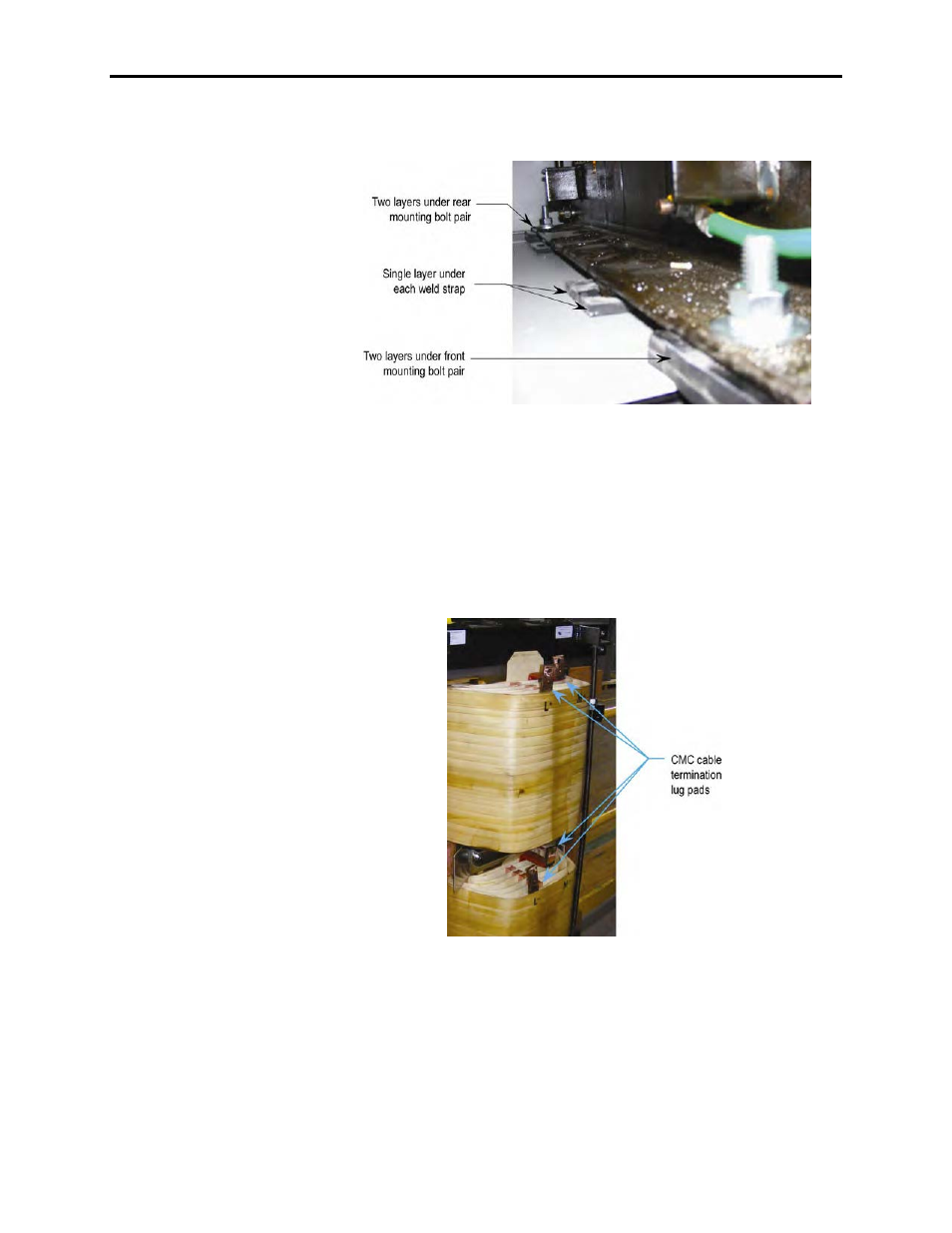

Figure 6 – CMC Isolation Mounting Strip positions under installed CMC
Installing the CMC
Ensure that the CMC is oriented correctly so the four side-mounted
electrical termination lug pads (designated M+, M-, L+, and L-) on the
CMC (see Figure 7) are facing towards the four power cables in the CMC
Cabinet (with the same designations). These electrical connections will
be made after the CMC is installed in the CMC Cabinet.
Fig. 7 – Position of the cable termination lug pads on CMC
Ensure to leave a minimum of a 3-inch clearance between the right hand
side sheet and the right side of the CMC (referenced from the front).
Use the Air Baffles as a template to ensure proper orientation of the
CMC in the CMC Cabinet.
Preparing the CMC Cabinet
(cont.)
