DRAM Memory Modules
5

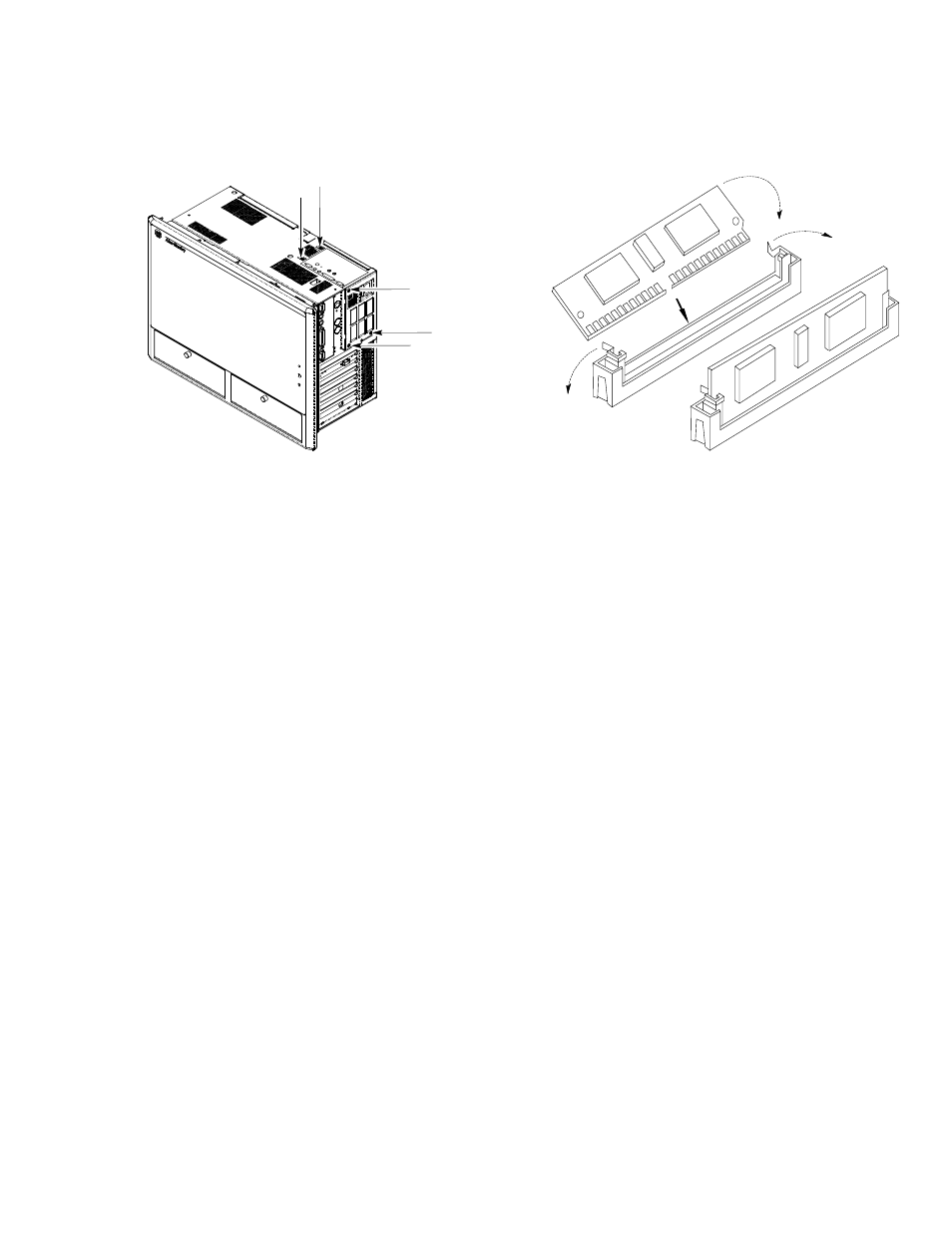

4. Holding the SIMM only by the edges, remove it from its anti–
static package.
SIMM
Socket
Arrows Show Location
of Five Power Supply
Mounting Screws
5. Position the SIMM at about a 45 angle relative to the processor
board. Make sure the small notch in the middle of the bottom
edge of the SIMM aligns with the notch in the SIMM socket.
6. Insert the bottom edge of the SIMM into the SIMM socket and
make sure it is firmly seated.
7. Push down on the ends towards the retaining clips until the
SIMM snaps into place.
8. To remove memory, gently press down on the retaining clips, so
that the SIMM can be removed.
9. After the SIMMs are installed, return the power supply to its
mounting position in the chassis. Dress the cables to their original
position and ensure that the air diverting flap(s) are installed near
the processor heat sink, as originally positioned.
10. Secure the power supply and install back panel.
