DRAM Memory Modules
2
The minimum memory size is 8MB (two 4MB SIMMs) for both
boards. The maximum memory size is 256MB (four 64MB SIMMs)
for Pentium II boards and 128MB (four 32MB SIMMs) for Pentium
boards. Four SIMM sockets are arranged in two banks of two
sockets.

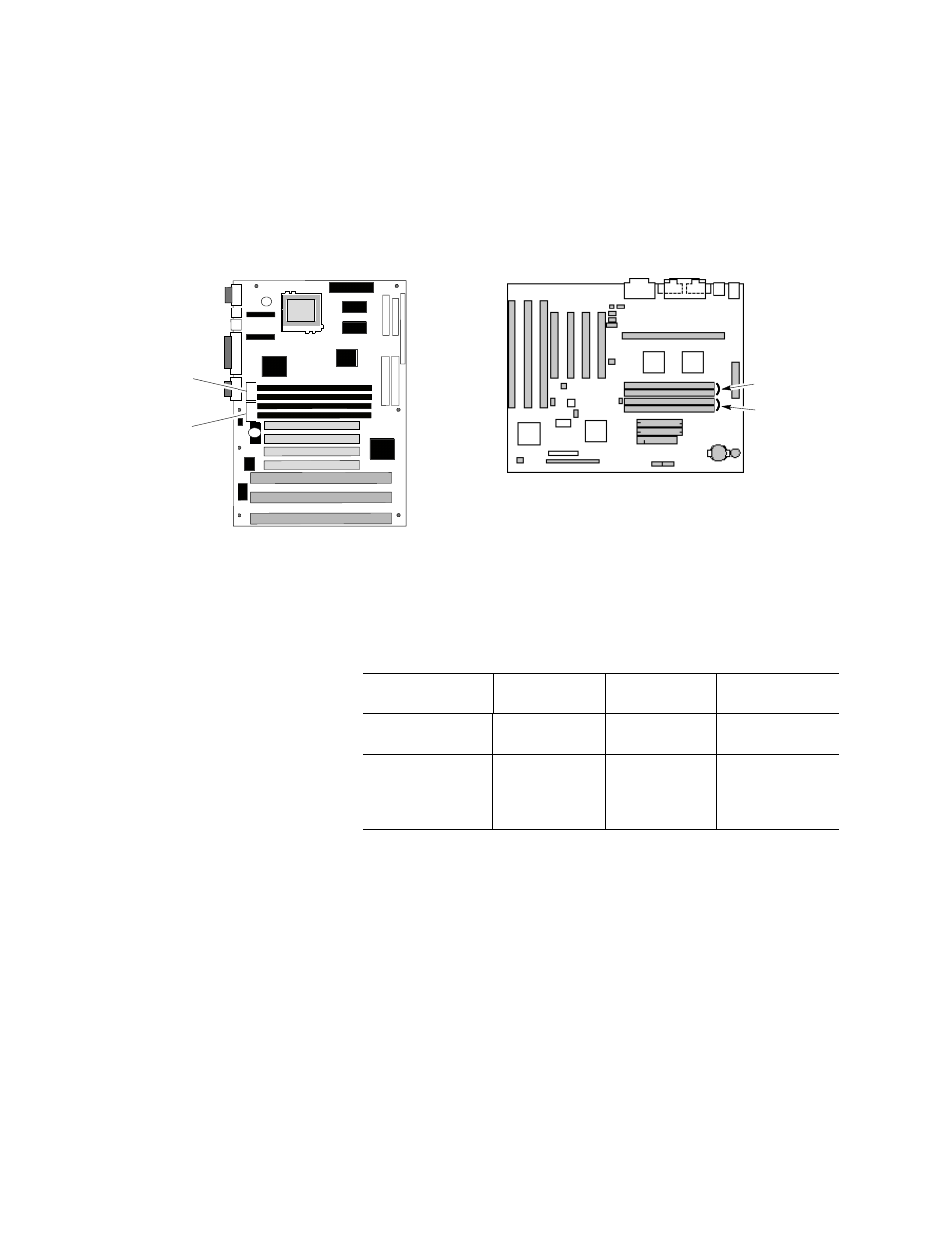

Processor Boards
Bank 1
Bank 0
Pentium II
Bank 0
Bank 1
Pentium
Both parity and non–parity SIMMs are supported. If exclusively
parity SIMMs are installed in the system, the user can configure one
of several memory error-detection modes within the CMOS setup
utility. The options are “Disabled” (BIOS default), “Parity,” and
“ECC.” These modes are described in the table below.
Setup Utility
Mode Option
Disabled Parity ECC
Non-parity SIMMs No error
detection
N/A N/A
Parity SIMMs No error
detection
Single-bit error
detection
Single-bit error
correction
Double-bit error
detection
NOTE: If any non–parity SIMMs are added, system parity is
disabled for all banks (even if one bank contains parity SIMMs).
When adding memory to the 6180 Computer processor board, follow
these guidelines:
Guidelines for
Adding/Removing Mem
