10 Optical Disc Drive (ODD)
Publication 6177R-IN004B-EN-P - November 2009
Reinstall the Cover
After completing any removal or replacement procedure of internal components, reinstall the
side cover.
1. Make sure the computer is in its normal upright position.
2. Perform steps 1…3 of the post-installation procedure.
3. Reinstall the side cover.
a. Position the lower edge of the side cover at an angle to the hinge tabs along the
bottom of the chassis.
b. Rest the cover on the hinge tabs, tilting it up until it engages the locking
mechanism at the top of the chassis.
c. Slide the cover towards the front panel to position it into place.
d. Secure the cover once it is attached to the chassis by replacing the two screws
located on the rear edge of the side cover.
XX.XXXXX.XX
XX.XXXXX.XX

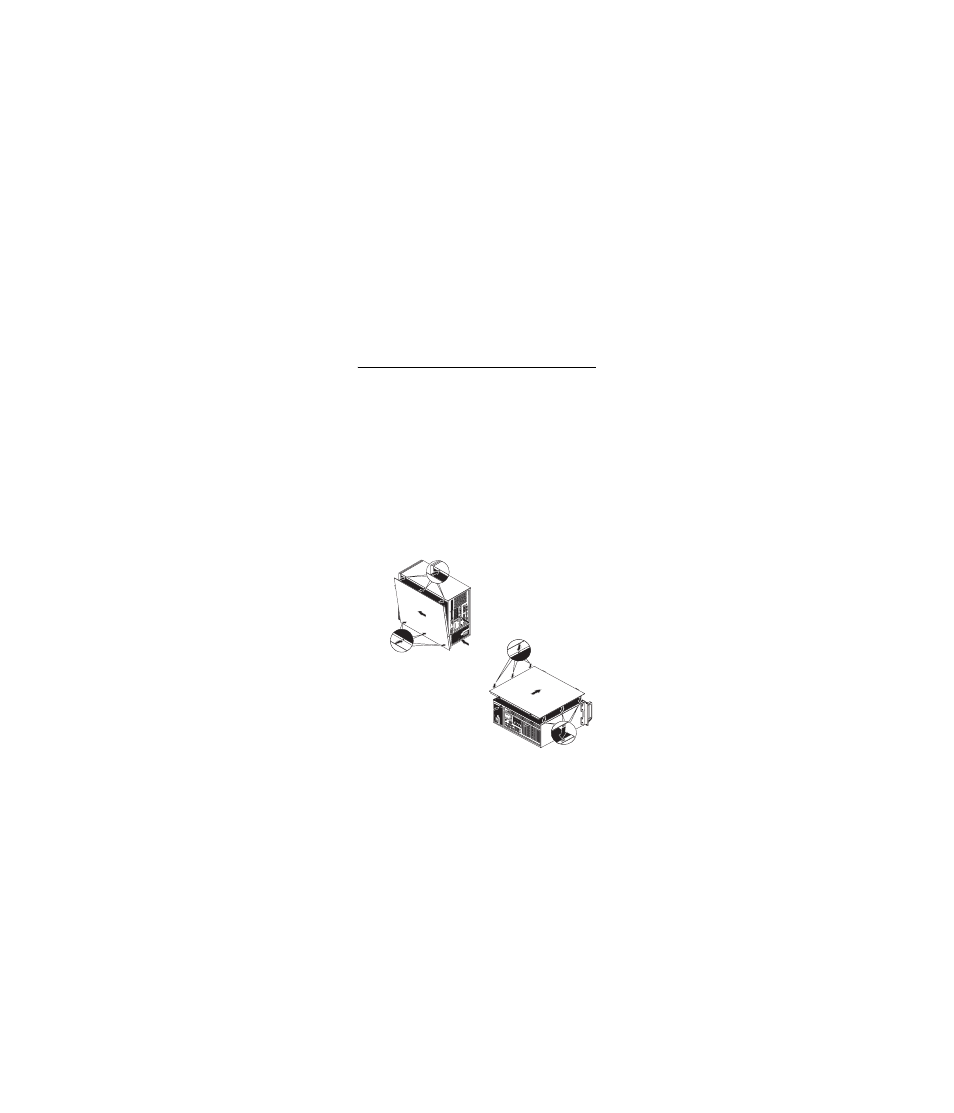

Reinstalling the Side Cover on the 750R Computer
Reinstalling the Side Cover on the 14750R Computer
