Step 4: reconnecting the wires to lamp terminals – Rockwell Automation 2364 NRU/RGU DC Bus Energized Pilot Light and Legend Plate Replacement User Manual
Page 4
Publication 2364-5.14 – May, 2005
P/N 372579-9
Copyright © 2005 Rockwell Automation. All rights reserved. Printed in USA.
Step 4: Reconnecting the
Wires to Lamp Terminals

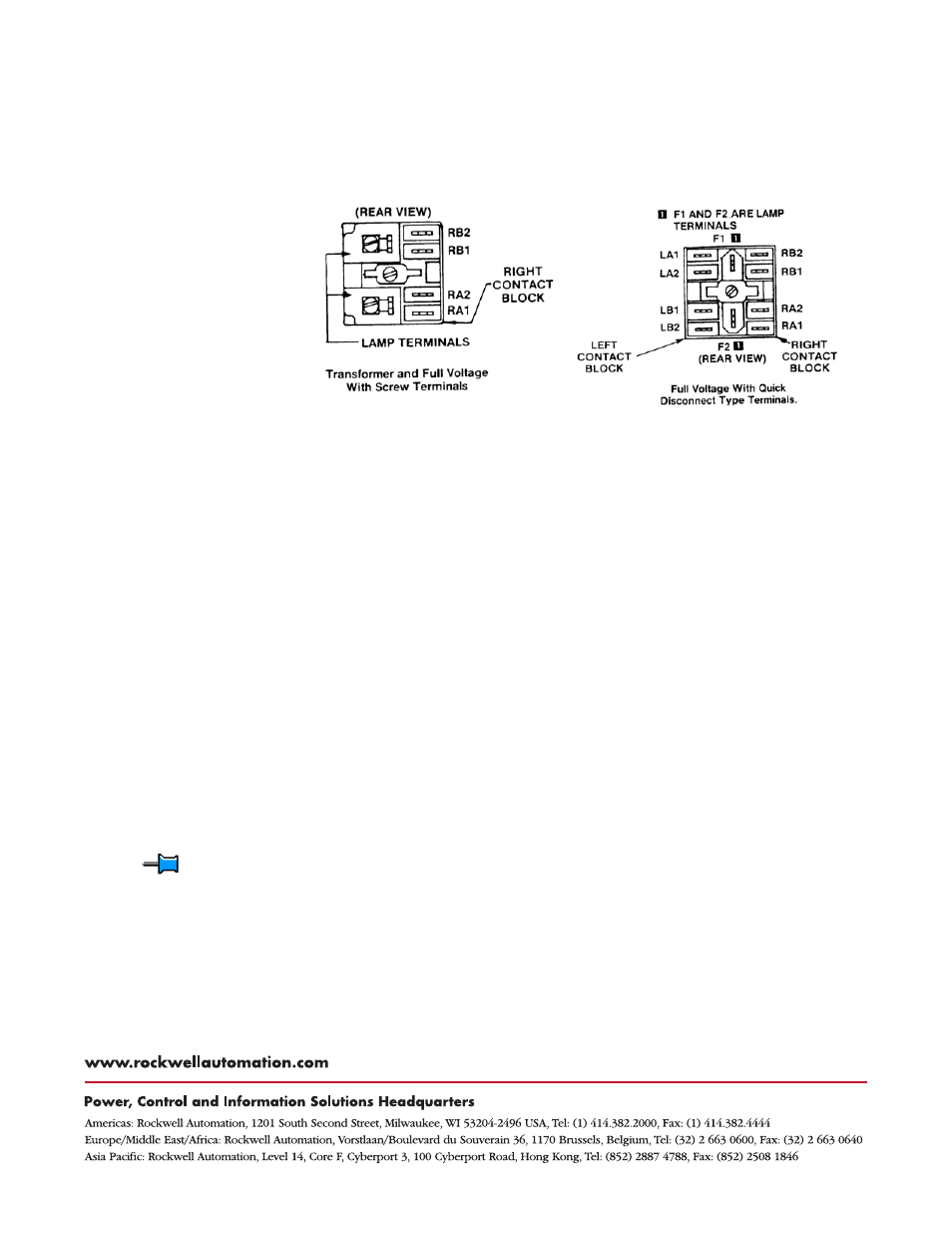

1. Reconnect the existing wires to the lamp terminals as indicated below.
Note that the polarity of the wire connections is not critical to lamp
operation.
2. Close the cabinet door and re-apply power to the NRU/RGU to verify
that the pilot light indicates that the DC Bus is energized.
