Mounting bracket dimensions – Rockwell Automation 2094 2094 Mounting Bracket Installation Instructions User Manual
Page 2

2 2094 Mounting Brackets
Publication 2094-IN008B-EN-P — November 2004

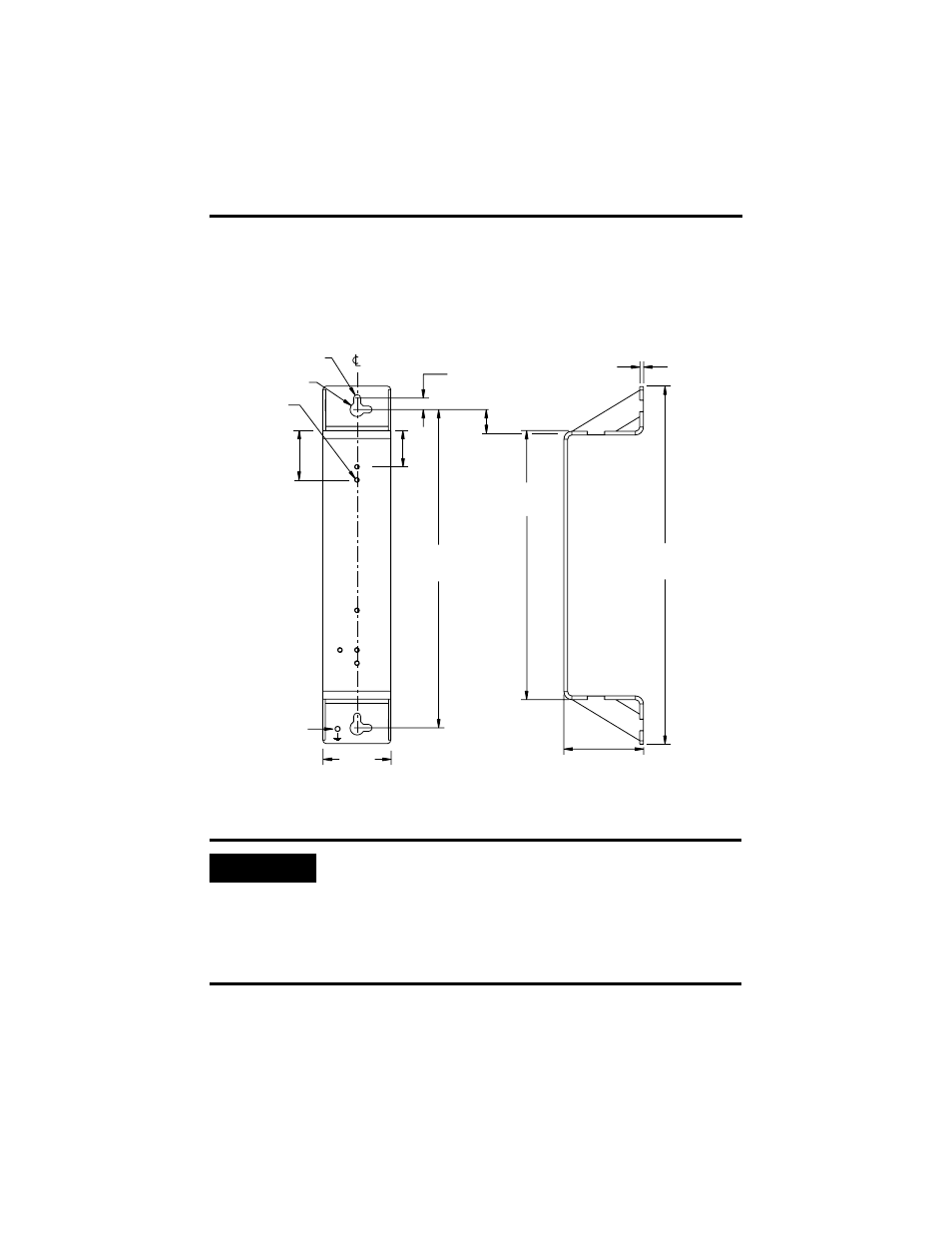

Mounting Bracket Dimensions
Figure 1
Mounting Bracket Dimensions
IMPORTANT
To improve the bond between the brackets and
subpanel, construct your subpanel out of zinc plated
(paint-free) steel. For more information on bonding,
panel layout, and mounting of your Kinetix 6000 drive
system, refer to the Kinetix 6000 Multi-Axis Servo Drive
Installation Manual (publication 2094-IN001x-EN-P).
Ø 7.9 (0.31) TYP.
12.7
(0.50) TYP.
Ø 15.9 (0.62) TYP.
M6 x 1 holes
(6 Locations)
76.2
(3.0)
LIM
PRS
PR
LIM
PR/PRS
356 ±0.5
(14.03 ±0.020)
301 ±0.5
(11.86 ±0.020)
401 ±0.5
(15.79 ±0.020)
4.2
(0.16) REF
89.3 ±0.5
(3.51 ±0.020)
40.6
(1.60)
Ground
Stud
23.4
(0.92)
55.3
(2.18)
REF
Dimensions are in millimeters (inches)
