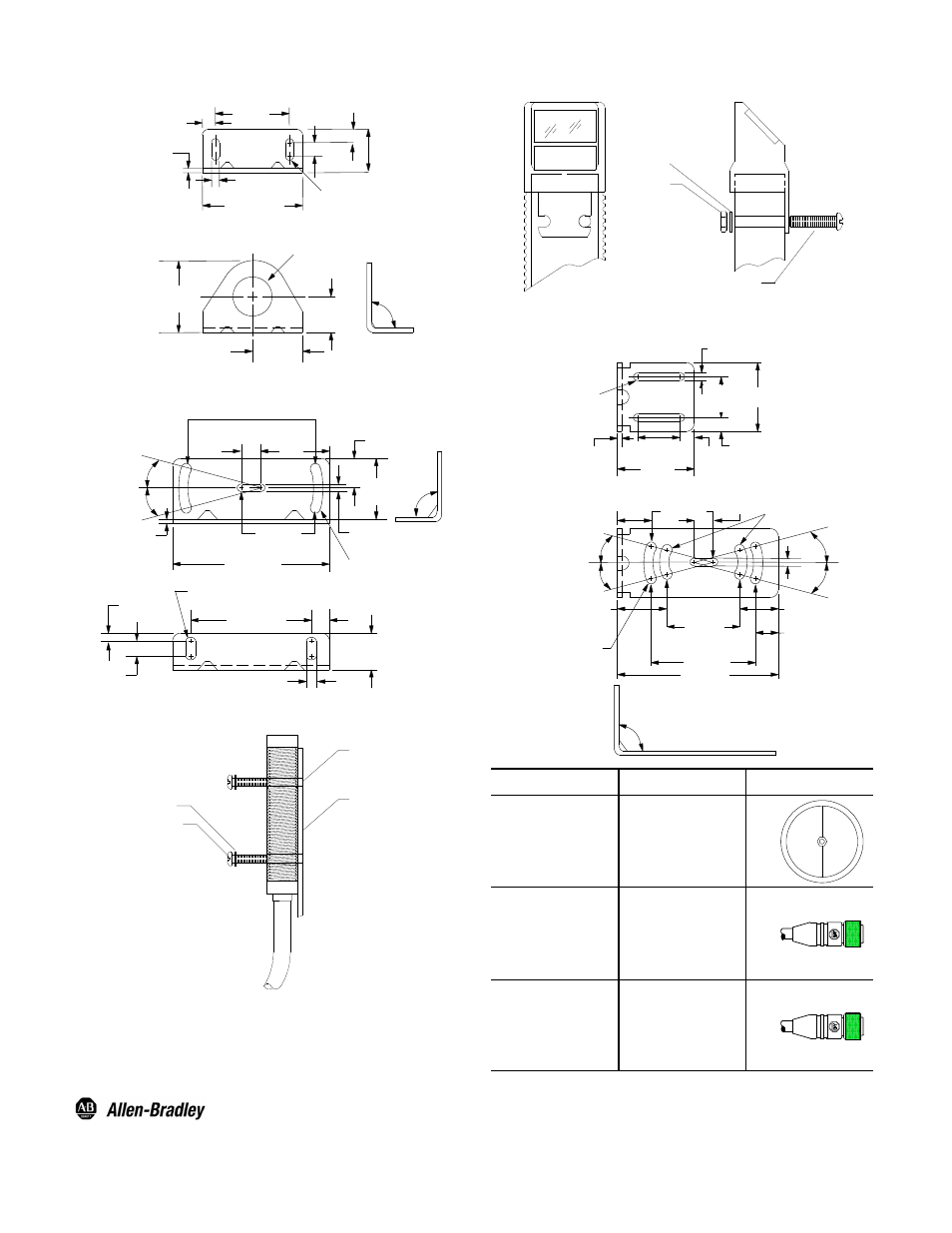

Single Hole Bracket #60- 2006
12.7 (0.50)
31.8
(1.25)
8 (0.34)
63.5 (2.50)
7.9
(0.31)
47.8
(1.88)
5.6 (0.219)
14 Gage
Cold Rolled
Steel (Painted)
Clearance for
#10-32 Hdw(M3)
(2 Slots)
49.3
(1.94)
25.4
(1.00)
26.0 (1.025)
Dia.
90
Tilt Mounting Bracket #60- 2007
3.8
(1.25)
Low Voltage DC
Control Mounting
15
15
31.8 (1.25)
66.8 (2.63)
4.4
(0.176)
13.3
(0.525)
30.2
(1.188)
6.4 (0.250)
AC/DC Control Mounting
57.2 (2.250)
Clearance for
#10-32Hdw
(M5) (3 Slots)
#18 Gage
Stainless Steel
41.3 (1.625) 12.7
(0.50)
13.9
(0.548)
4.4
(0.176)
5.8
(0.230)
3.4
(0.135)
Clearance for #8-32 Hdw (M3)(2 Slots)
Typical Bracket/Machine Mounting
#6 SS flat 9.6 (0.38)
OD washer
#6--32 SS screw
8in-lbs torque
max (2 places)
Either threaded
#6--32 hole or
#6--32 SS nut
Mounting bracket
or plate
Right Angle Mirror Assembly
#6 SS flat 9.6 (0.38)
OD washer
#6--32 x 3/4 (M3) SS pan head screw
8in-lbs torque max
#6--32 SS
Hex stop nut
Universal Mounting Bracket #60- 2008
Optional Mtg.
Brkt. #60-2007
15
15
90
41.3
(1.626)
AC/DC Control Mtg.
57.2 (2.25)
84.1 (3.31)
28.6
(1.124)
14.2
(0.56)
6.3
(0.248)
4.4
(0.176)
15
15
DC Control Mtg.
31.8 (1.25)
6.4
(0.25)
Clearance for
#8-32 HDW (M4)
(2 Slots)
20.06
(0.812)
Clearance
for #6-32 Hdw (M3)
(3 Slots)
34.9
(1.375)
4.4
(0.176)
25.4
(1.0) #16 Gage
Stainless
Steel
41.2
(1.662)
7.6
(0.30)
5.7
(0.225)
Clearance for
#8-32 Hdw(M4)
(2 Slots)
19
(0.75)
Description Catalog Number
Reflector, 0.76mm
(3in) diameter with
center mount hole
92- 39
2m (6.5ft) micro QD
Cordset (DC only)
1 Keyway
889D- F4AC- 2
2m (6.5ft) micro QD
Cordset (AC/DC
models)
2 Keyways
889R- F4AEA- 2
