Gsd file requirements, Wire the adapter – Rockwell Automation 1738-APB ArmorPoint PROFIBUS Adapter, Series A User Manual
Page 8
8
Publication
1738-IN015C-EN-E - February 2010
GSD File Requirements
Current functionality of PROFIBUS adapters requires GSD files. These files
are easy to install and are available online at:
www.ab.com/networks/gsd/.
Wire the Adapter

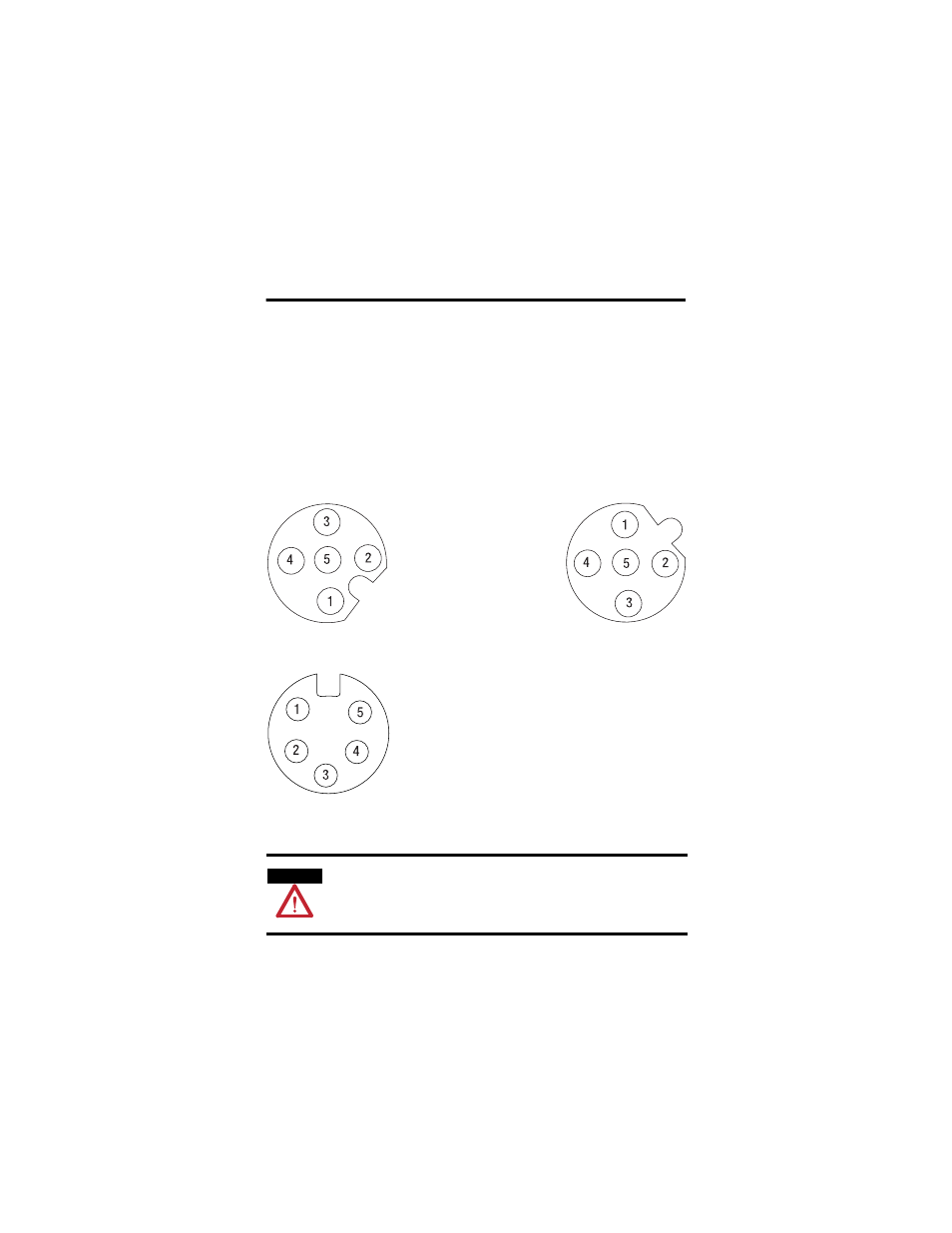

Refer to the illustrations for wiring instructions for the adapter.
PROFIBUS In, Male, 5-pin Micro (M12), Reverse Keyway
PROFIBUS Out, Female, 5-pin Micro (M12), Reverse Keyway
The recommended standard cordset for the PROFIBUS auxiliary connector
is 889N-F5AFC- (x), where x equals 6, 12, or 20 feet.
ATTENTION
Make sure all connectors and caps are securely tightened to
properly seal the connections against leaks and maintain IP67
requirements.
Male In
(View into Connector)
Pin 1 - +5VBUS
Pin 2 - A-Line
Pin 3 - GNDBUS
Pin 4 - B-Line
Pin 5 - Shield
43267a
Female Out
43267b
(View into Connector)
Pin 1 - User Power -
Pin 2 - Adapter Power -
Pin 3 - Protective GND
Pin 4 - Adapter Power +
Pin 5 - User Power +
43268
