Connect the fiber optic cables – Rockwell Automation 1756-Mxxxx ControlLogix SERCOS interface Module Installation Instructions User Manual
Page 6
6 ControlLogix SERCOS interface Module
Publication
1756-IN572G-EN-P - May 2005

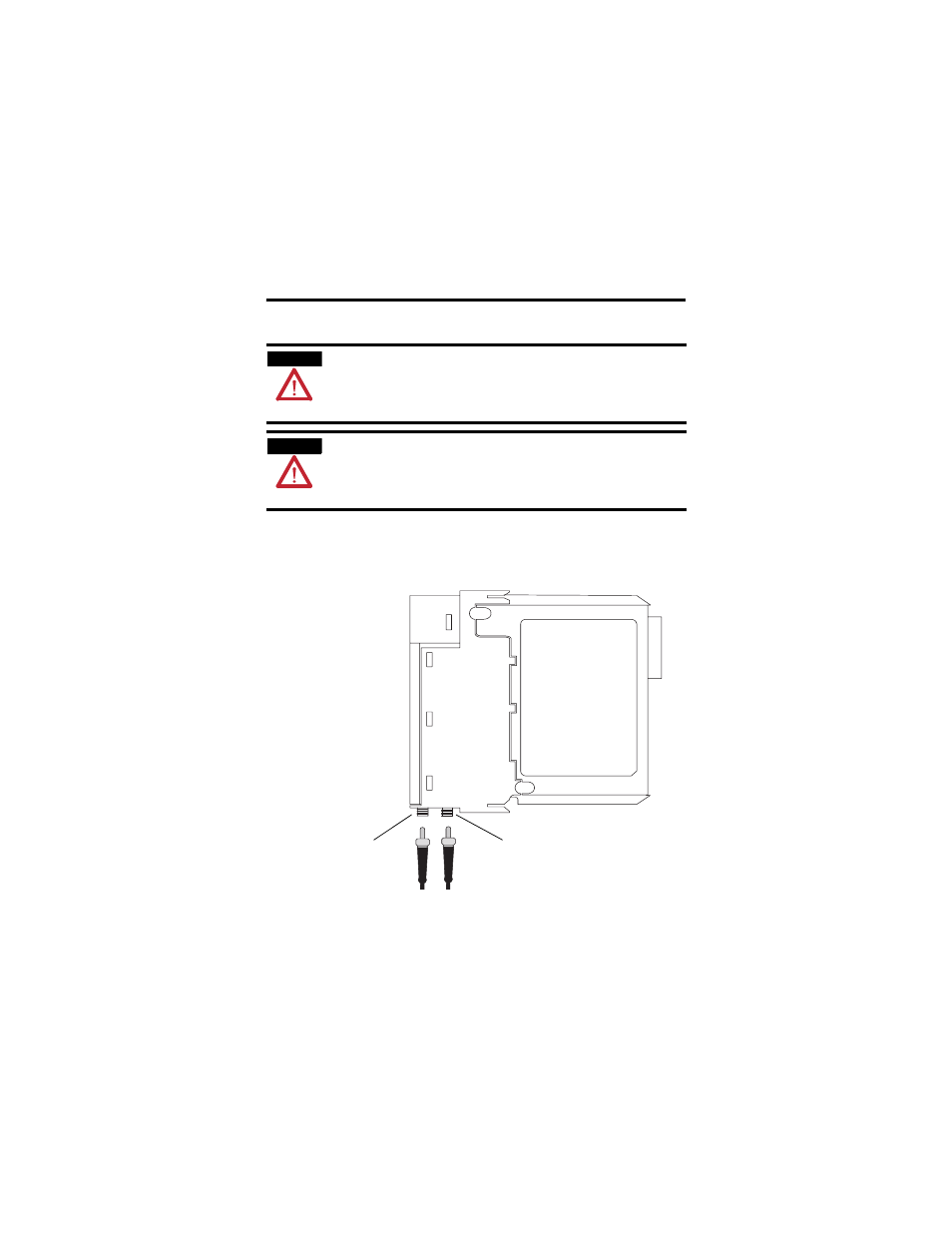

Connect the Fiber Optic Cables
ControlLogix SERCOS interface modules use fiber optics that are rated Class
1 for IEC LED safety classification. Under most viewing conditions, there is
no eye hazard.
1. Remove the protective end caps from the receiver and transmitter
ports.
ATTENTION
You must give a unique address to each drive on the SERCOS
ring. If you give 2 drives the same address on the same ring, both
drives respond to commanded motion. This could injure people
or damage equipment.
ATTENTION
Under certain conditions, viewing the optical port may expose
the eye to hazard. When viewed under some conditions, the
optical port may expose the eye beyond the maximum
permissible exposure recommended in ANSI Z136.2, 1993.
transmitter
receiver
