1734 POINT I/O EtherNet/IP Adapter 17
Publication 1734-IN042B-EN-P - October 2013
Interpret Status Indicators

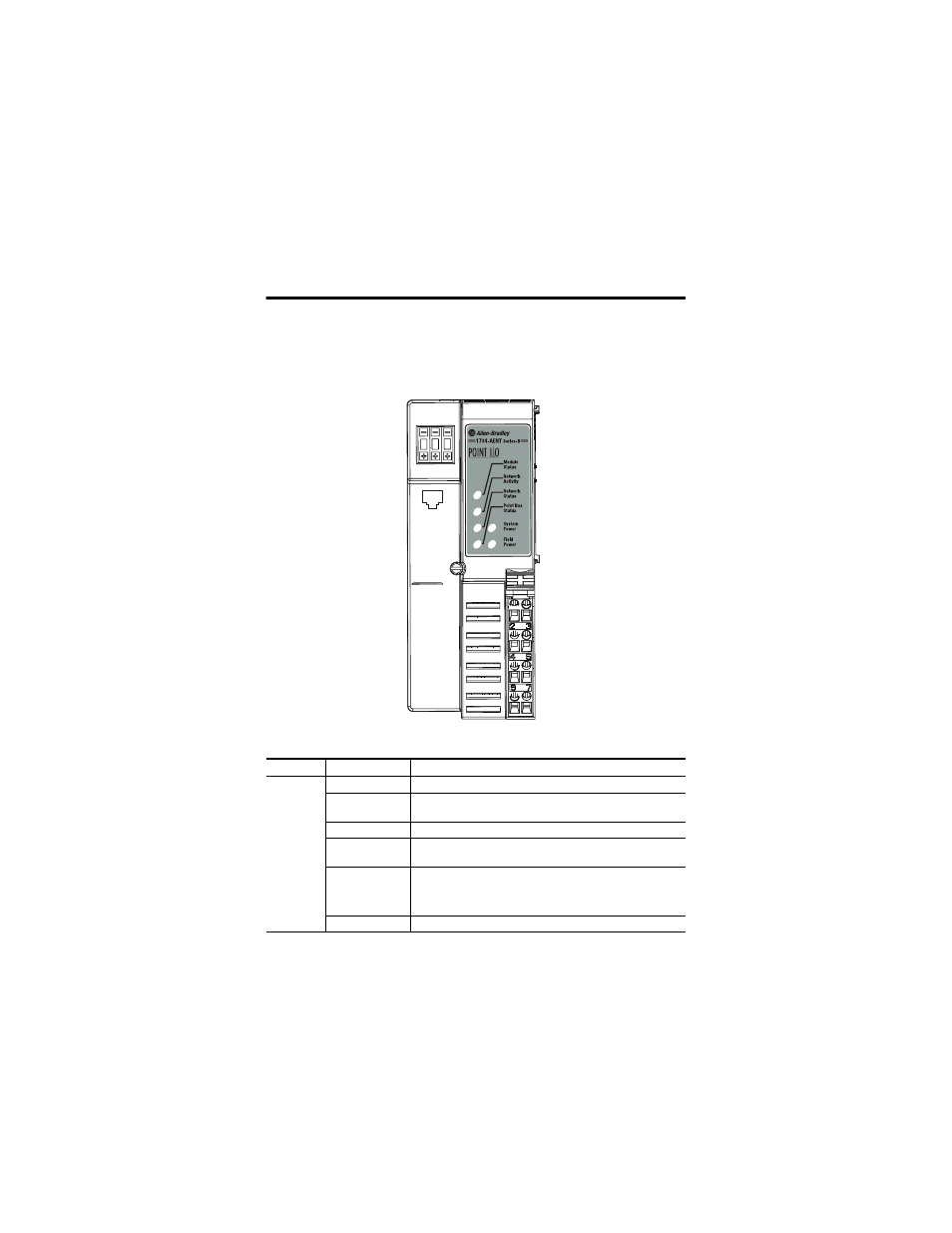

Refer to the following diagram and table for information on how to interpret the
status indicators.
POINT I/O EtherNet/IP Adapter, Series B
Indicator Status for Modules
Indicator
Status
Description
Module
status
Off
No power applied to device
Flashing green
Device needs commissioning due to missing, incomplete, or
incorrect configuration.
Solid green
Device is operating normally.
Flashing Red
Recoverable fault.
Complete firmware update, verify address switches.
Solid red
Unrecoverable fault has occurred:
• Self-test failure present (checksum failure, or RAMtest failure at
cycle power).
• Firmware fatal error.
Flashing red/green
Module self-test.
43264
0 2
0
System power
Field power
Module status
Network activity
Network status
POINTBus status
Chas Gnd
C
V
NC
Network address
thumbwheels
Ethernet RJ-45 connector
