Digital inputs status indicators, Digital outputs status indicators, Analog i/o status indicator – Rockwell Automation 1769-L23E-QB1B_QBFC1B_QBFC1B CompactLogix Packaged Controller Installation Instructions User Manual

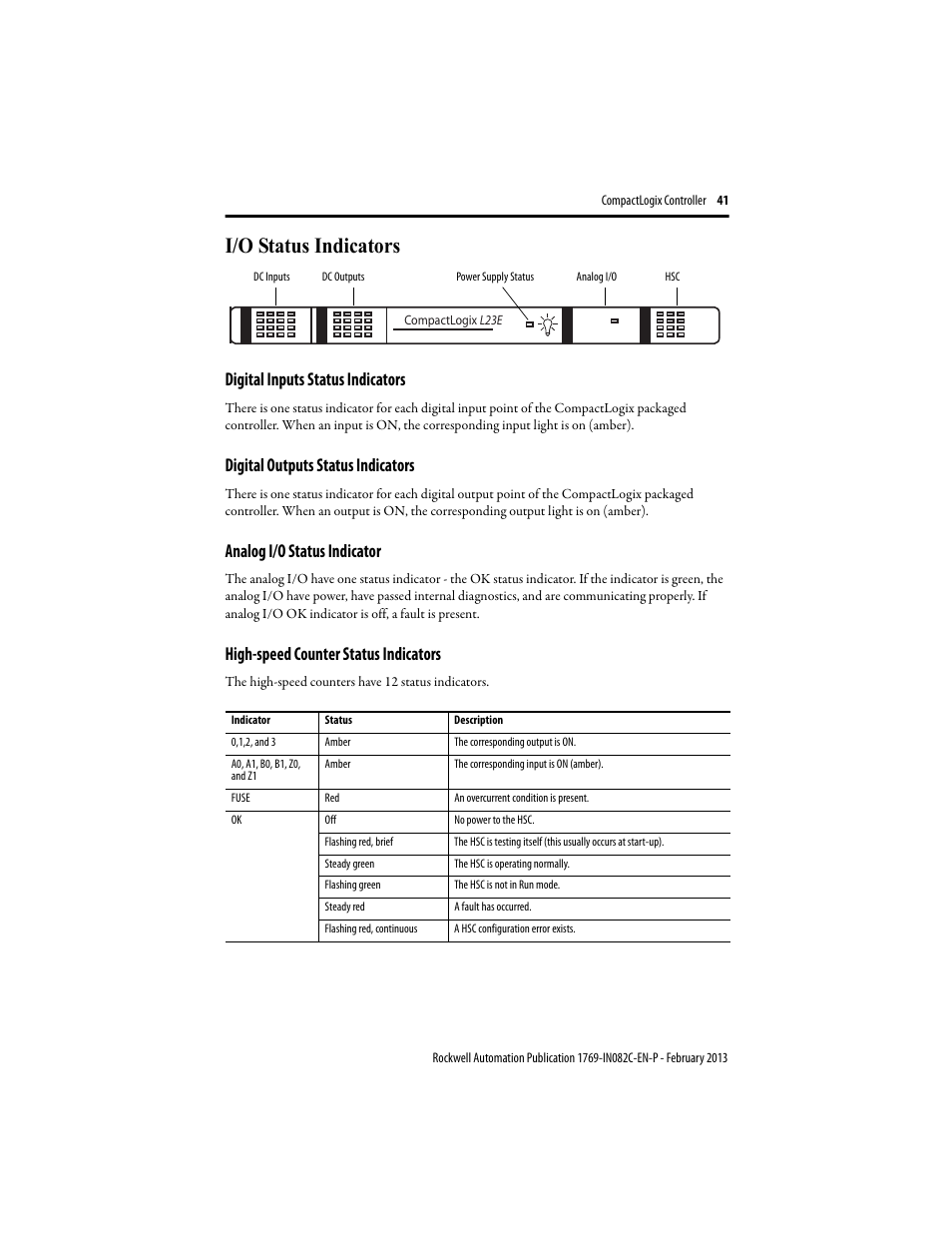

Page 41: High-speed counter status indicators, I/o status indicators
