FLEX I/O EtherNet/IP Adapters Installation Instructions 7
Publication 1794-IN082C-EN-P - October 2007
Environmental Specifications
Certifications

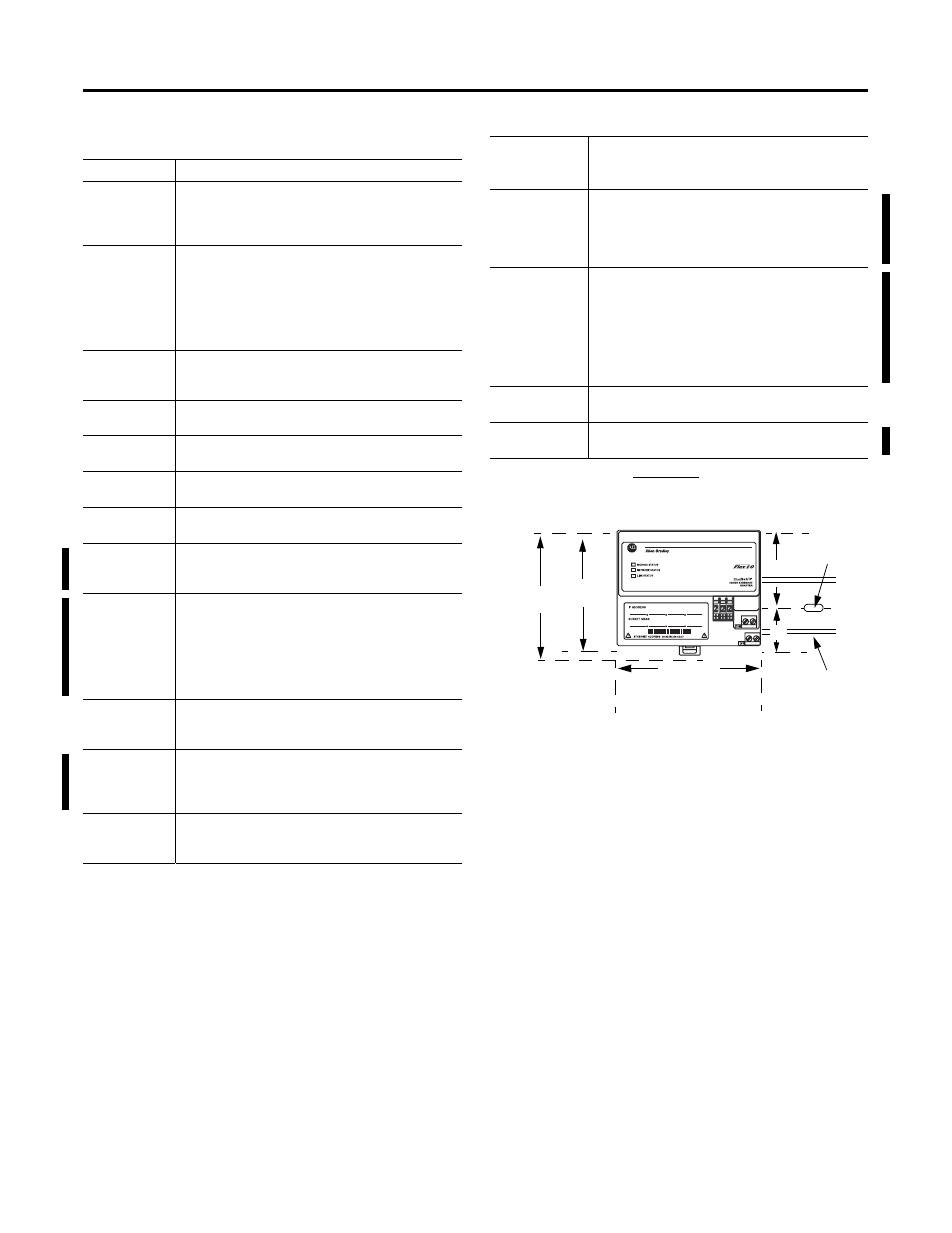

Mounting Dimensions
Flex I/O, Allen-Bradley, ControlLogix, Rockwell Automation, RSLogix 5000, and RSLinx are trademarks
of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Attribute
Value
Temperature,
operating
IEC 60068-2-1 (Test Ad, Operating Cold),
IEC 60068-2-2 (Test Bd, Operating Dry Heat),
IEC 60068-2-14 (Test Nb, Operating Thermal Shock):
0…55 °C (32…131 °F)
Temperature,
nonoperating
IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating
Cold),
IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry
Heat),
IEC 60068-2-14 (Test Na, Unpackaged Nonoperating
Thermal Shock):
–40…85 °C (–40…185 °F)
Relative
humidity
IEC 60068-2-30 (Test Db, Unpackaged Nonoperating
Damp Heat):
5…95% noncondensing
Vibration
IEC60068-2-6 (Test Fc, Operating):
5 g @ 10…500 Hz
Shock, operating IEC60068-2-27 (Test Ea, Unpackaged shock):
30 g
Shock,
nonoperating
IEC60068-2-27 (Test Ea, Unpackaged shock):
50 g
Emissions
CISPR 11:
Group 1, Class A
ESD immunity
IEC 61000-4-2:
6 kV contact discharges
8 kV air discharges
Radiated RF
immunity
IEC 61000-4-3:
10 V/m with 1 kHz sine-wave 80% AM from 80…2000
MHz
10 V/m with 200 Hz 50% Pulse 100% AM at 900 MHz
10 V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz
3 V/m with 1 kHZ sine-wave 80% AM from
2000…2700MHz
EFT/B immunity
IEC 61000-4-4:
±4 kV at 5 kHz on power ports
±2 kV at 5 kHz on communication ports
Surge transient
immunity
IEC 61000-4-5:
±1 kV line-line (DM) and ±2 kV line-earth (CM) on power
ports
±2 kV line-earth (CM) on communication ports
Conducted RF
immunity
IEC 61000-4-6:
10V rms with 1 kHz sine-wave 80% AM from 150
kHz…80 MHz
Certification
(when product
is marked
(1)
(1)
See the Product Certification link at for Declarations of Conformity, Certificates and
other certification details.
Value
c-UL-us
UL Listed Industrial Control Equipment, certified for
US and Canada (See UL file E65584)
UL Listed for Class I, Division 2, Groups A, B, C and D
Hazardous locations, certified for US and Canada (See
UL file E194810)
CE
European Union 2004/108/EEC EMC Directive,
compliant with:
EN 61326; Meas./Control/Lab., Industrial
Requirements
EN 61000-6-2; Industrial Immunity
EN 61000-6-4; Industrial Emissions
EN61131-2; Programmable Controllers (Clause 8, Zone
A & B)
C-Tick
Australian Radiocommunications Act compliant with
AS/NZS CISPR 11, Industrial Emissions
EtherNet/IP
ODVA conformance tested to EtherNet/IP
specifications
mm
(in.)
A = DIN rail.
B = Secure DIN rail approximately every 200 mm (7.87 in.).
(3.4)
87
(3.7)
94
1794-AENT
(3.4H x 3.7W x 2.7D)
87H x 94W x 69D
30
(1.2)
50
(2.2)
A
B
(3.2)
80
