Place the label, If you see the message – Rockwell Automation F1770-KFC(D)15 INSTL INSTR FLASH FIRMWARE KIT User Manual
Page 8
8
Flash Firmware Kit
Publication 1770-5.9 - May 1998
When the download is complete, you see the following message:
Code Download into KFCD Flash Memory Succeeded
If you see the message:
NVS transfer failure. Download aborted
go to the troubleshooting section on page 9.
If the upgrade:
• progressed as outlined in this section, go to the next section,
“Place the Label”, to continue with the upgrade.
•did not progress as outlined in this section, go to the
troubleshooting section on page 9.
Place the Label
To indicate the module has been upgraded to phase 1.5 firmware,

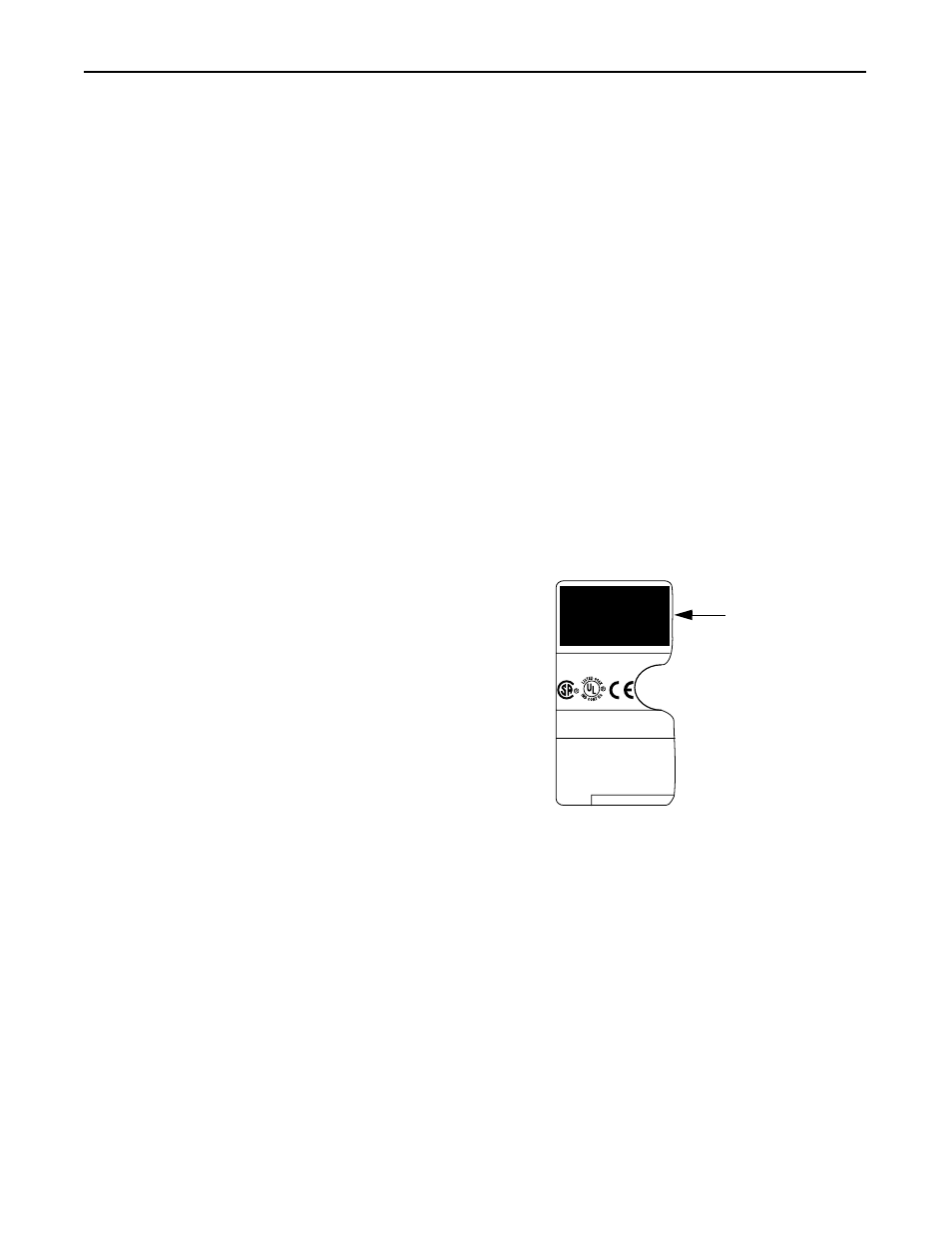

place the patch label as shown. The illustration indicates where the
label should be placed. It is not an illustration of what the label looks
like.
Important: Placing the new label on the module is very important
because the model number is now different. If the label
is not properly updated, the module could be improperly
repaired or replaced.
CATALOG NO.
SERIES
AMPS
HERZ
REV
VOLTS
DATE
PART NO.
MADE IN CANDA BY
DYNAPRO SYSTEMS INC.
COPYRIGHTED CODE CONTAINED
HEREIN
COPYRIGHT
ALLEN-BRADLEY 1994
Patch Label
40937
