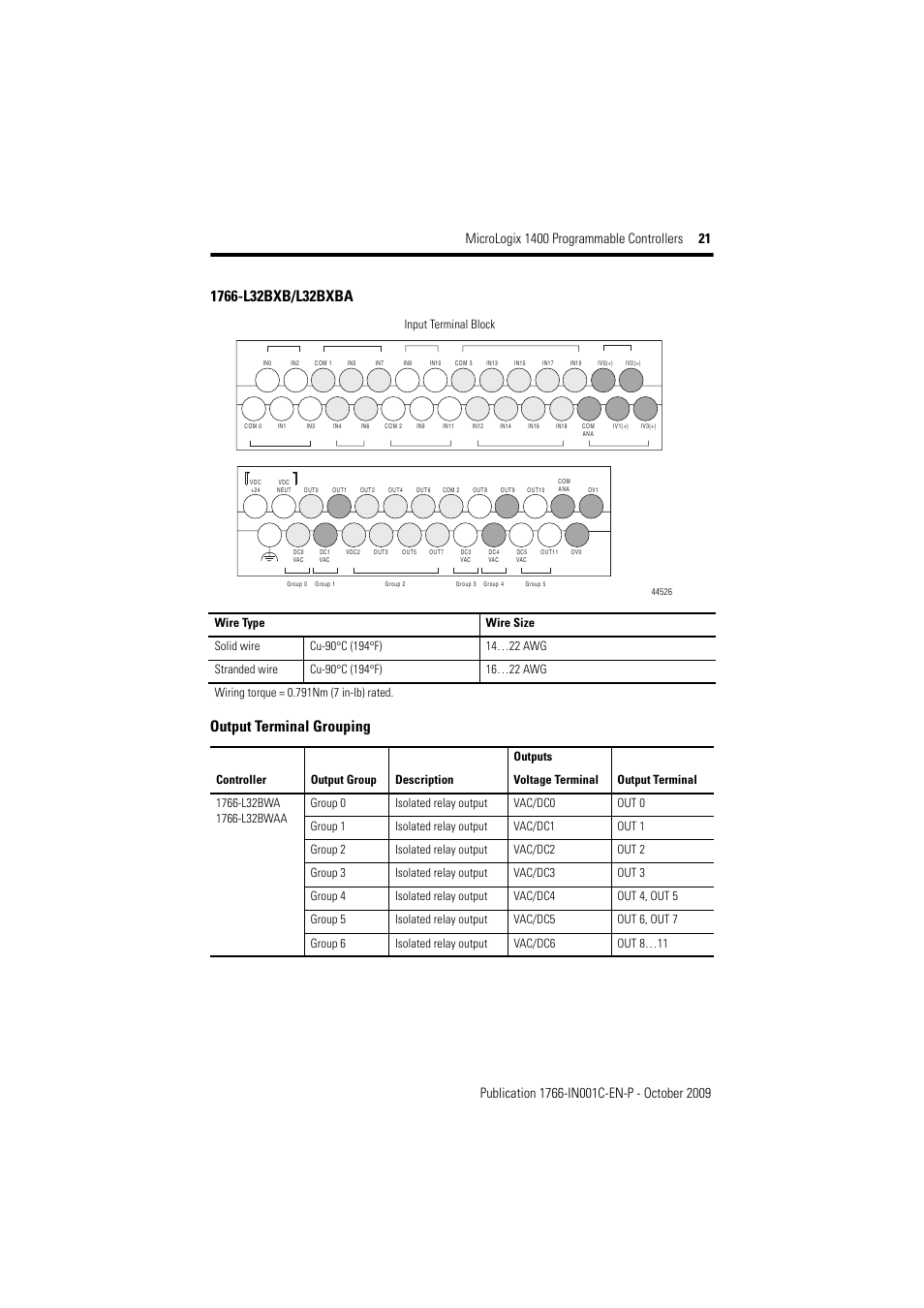

Output terminal grouping – Rockwell Automation 1766-L32xxx MicroLogix 1400 Programmable Controllers Installation Instructions User Manual
Page 21
