16 CompactBlock Guard I/O DeviceNet Safety Modules
Publication
1791DS-IN002C-EN-P - April 2009

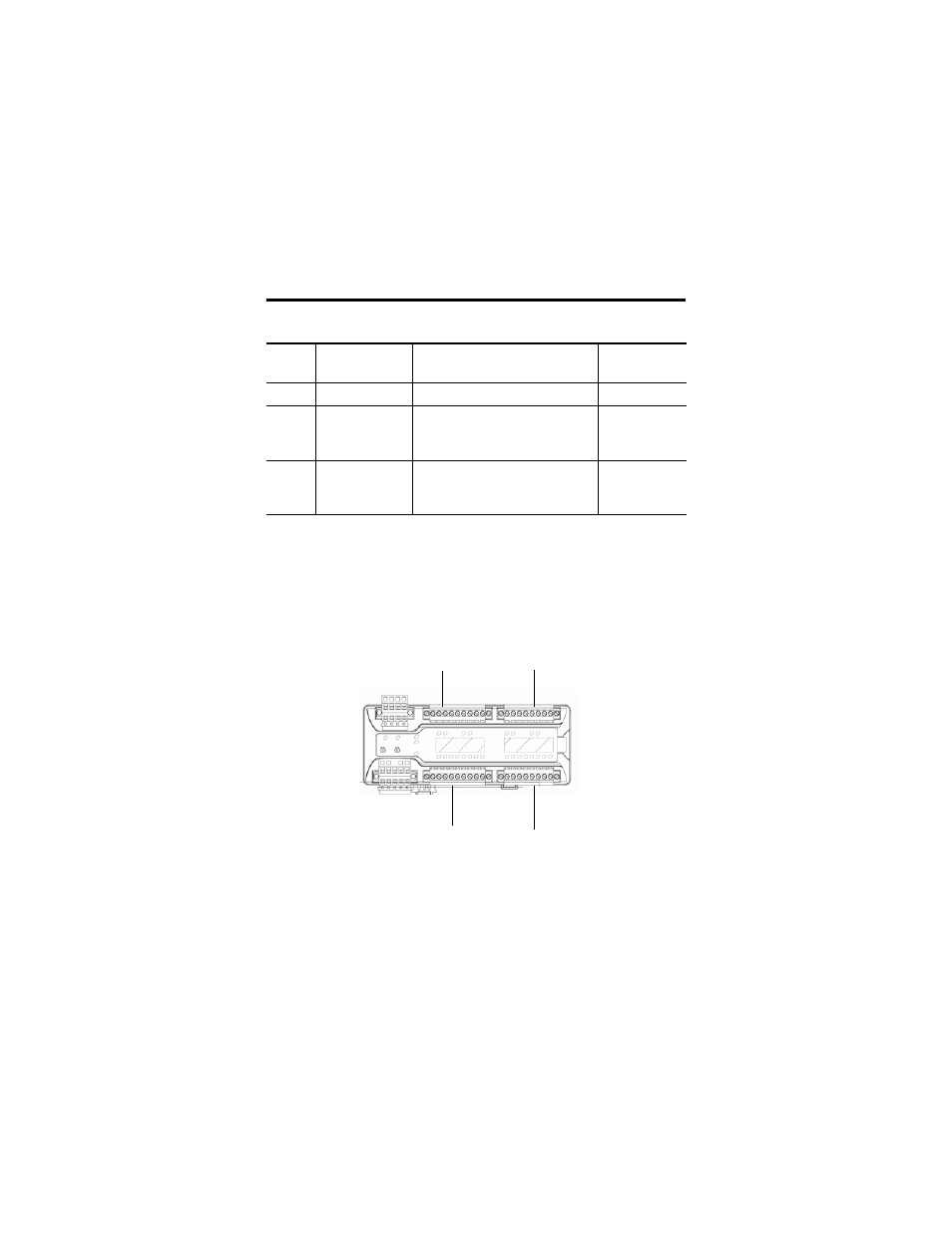

Terminal Positions
See the figure and table for terminal positions. For wiring diagrams, see the
user manual that covers these modules.
Configuration Lock Indicator
(1)
State
Status
Description
Recommended
Action
Off
No configuration
Invalid configuration data.
None
Solid
yellow
Locked
Valid configuration, locked by a
network configuration tool, such as
RSNetWorx for DeviceNet software.
None
Flashing
yellow
Not locked
Valid configuration, owned by a
network configuration tool, such as
RSNetWorx for DeviceNet software.
None
(1)
Not applicable to GuardLogix software.
18 19 20 21 22 23 23 25 26
27 28 29 30 31 32 33 34
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17
