PICO™ Programming
I 2 - - - - - - - - SQ6
Q6 - - - - - - - -

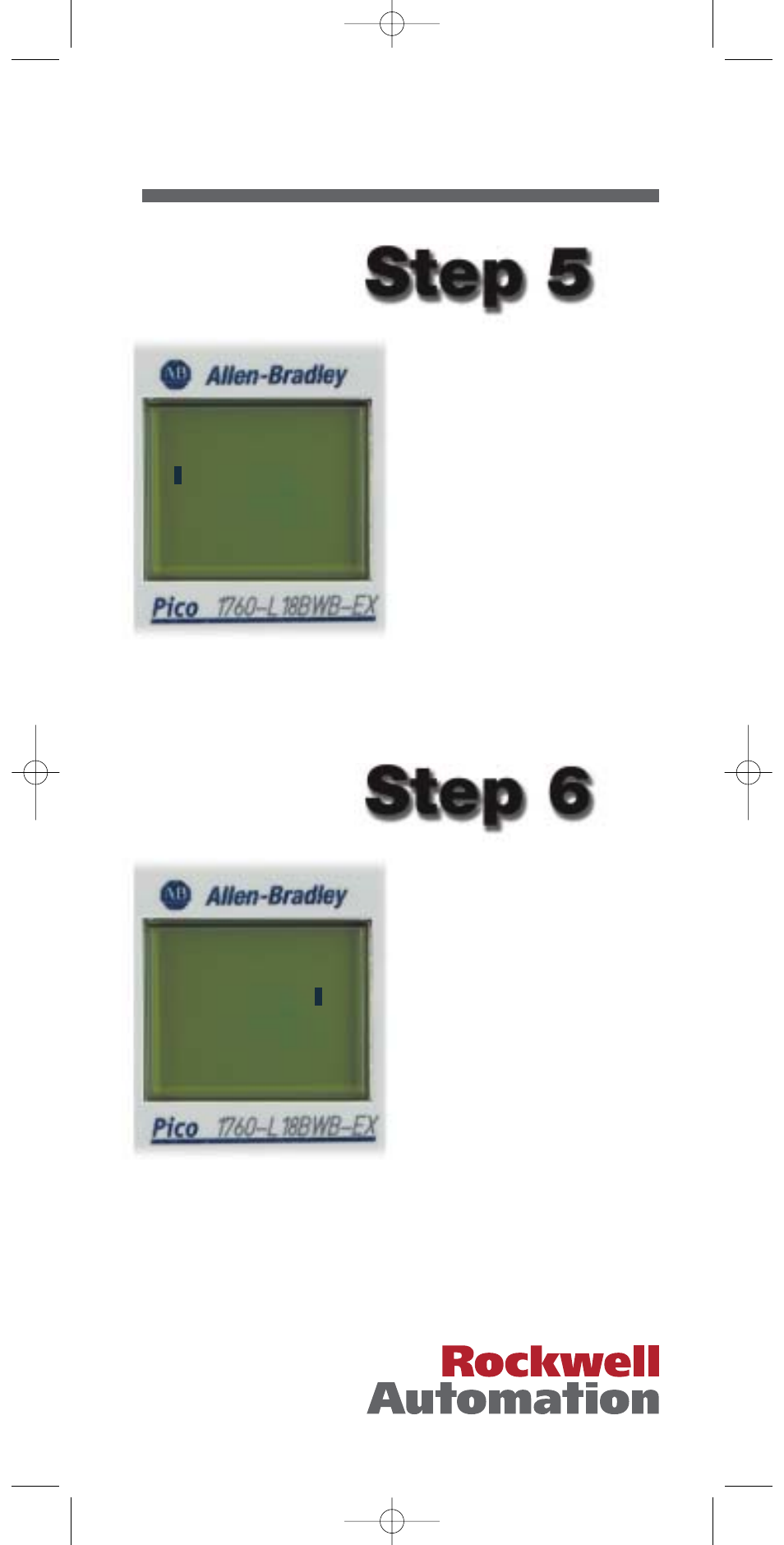

Your screen should look like
this at the end of Step 6.
Your screen should look like
this at the end of Step 5.
I 2 - - - - - - - - SQ6
Using an output contact
to start a timer
Press the OK button to inset
the I1 input. While on the
flashing “
I ” press P2 until I
changes to “Q”. Press P3.
Change the flashing “1” to
“6” by pressing the P2
button. Press the OK button.
Press the Alt button to insert
the rung lines and the P3
button three times.
Adding a latched output
instruction
Press P3 three times. Next
press the OK button. You
should see a flashing “Q”.
Press P1 once. The cursor
should move to the flashing
bracket. Press P2 twice to
change the bracket to “S”
(set). Press P3 twice to move
the cursor to the flashing
“1”, followed by pressing P2
to change the 1 to a 6. Press
the OK button.
