AC (120V) Isolated Output Module, 16 Outputs
7
Publication 1771Ć5.21 -February 1997
You make connections to the module through the 1771-WN field
wiring arm shipped with the module. The arm pivots on the chassis
to connect with the terminals on the front of the module (as shown
below). The wiring arm allows the module to be removed from the
chassis without disconnecting wiring.
1. Make certain all power is removed from the module before
making wiring connections.
2. Swing the wiring arm up into position on the front of the module.
The locking tab on the module will secure it into place.
3. Make your connections to the field wiring arm as shown below.
(Use the label on the front of the wiring arm to identify your
wiring.)

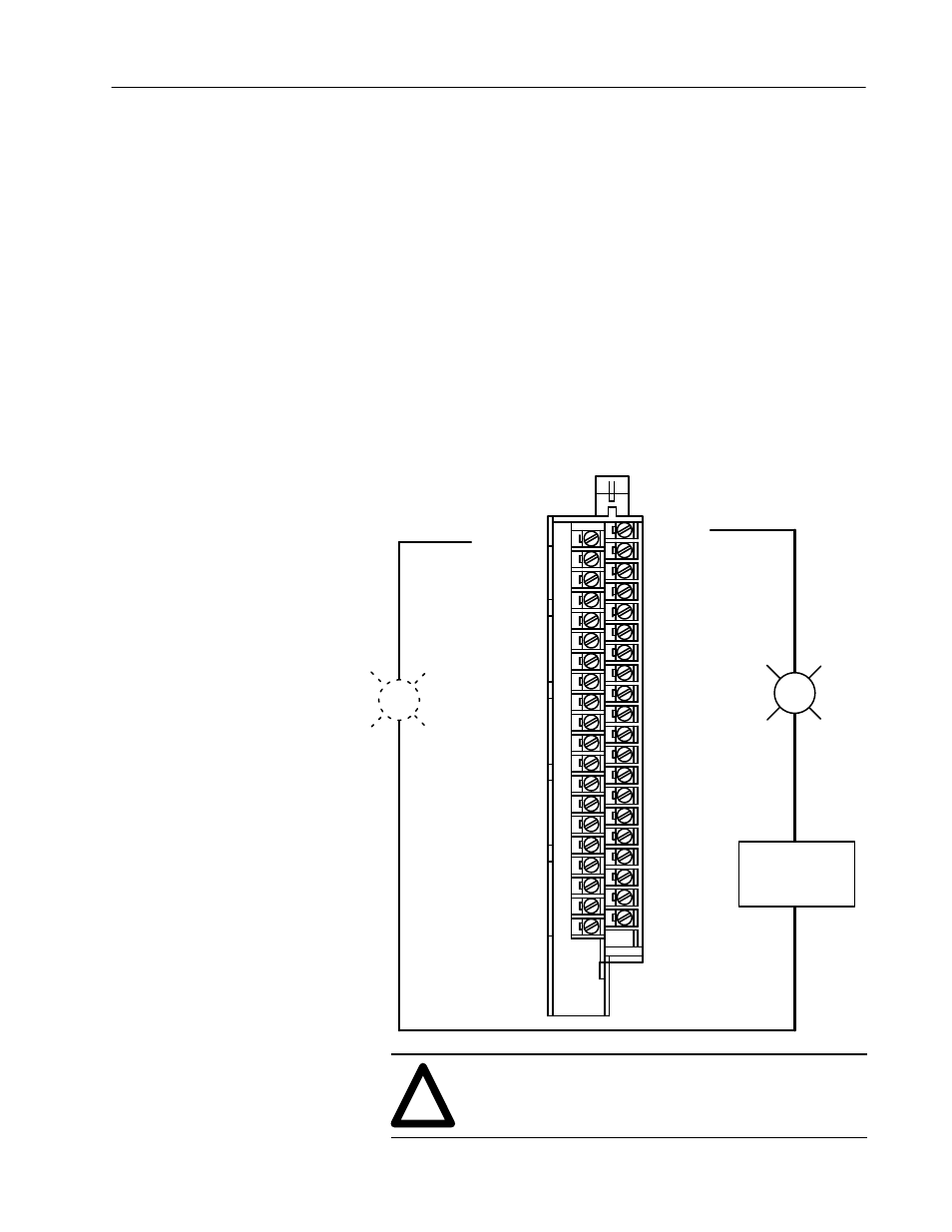

Connecting Wiring for the 1771ĆOD16/B Isolated Output Module
Output 0
Output 1
Output 2
Output 3
Output 4
Output 5
Output 6
Output 7
Output 10
Output 11
Output 12
Output 13
Output 14
Output 15
Output 16
Output 17
L1
ac High
ac Low
L1 Ć 0
L1 Ć 1
L1 Ć 2
L1 Ć 3
L1 Ć 4
L1 Ć 5
L1 Ć 6
L1 Ć 7
L1 Ć 10
L1 Ć 11
L1 Ć 12
L1 Ć 13
L1 Ć 14
L1 Ć 15
L1 Ć 16
L1 Ć 17
Not Used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
120V ac
Supply
L1
L2
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Load
Load
Alternate
Load
Location
10542ĆI
!
ATTENTION: The field wiring arm terminal
identification number is not the same as the number of
the bit which controls that output.
Connect the Wiring to the
Module
