Rockwell Automation 1768-PA3_PB3 CompactLogix Power Supplies Installation Instructions User Manual
Page 18

18 1768 CompactLogix Power Supplies
Publication 1768-IN001B-EN-P - July 2006

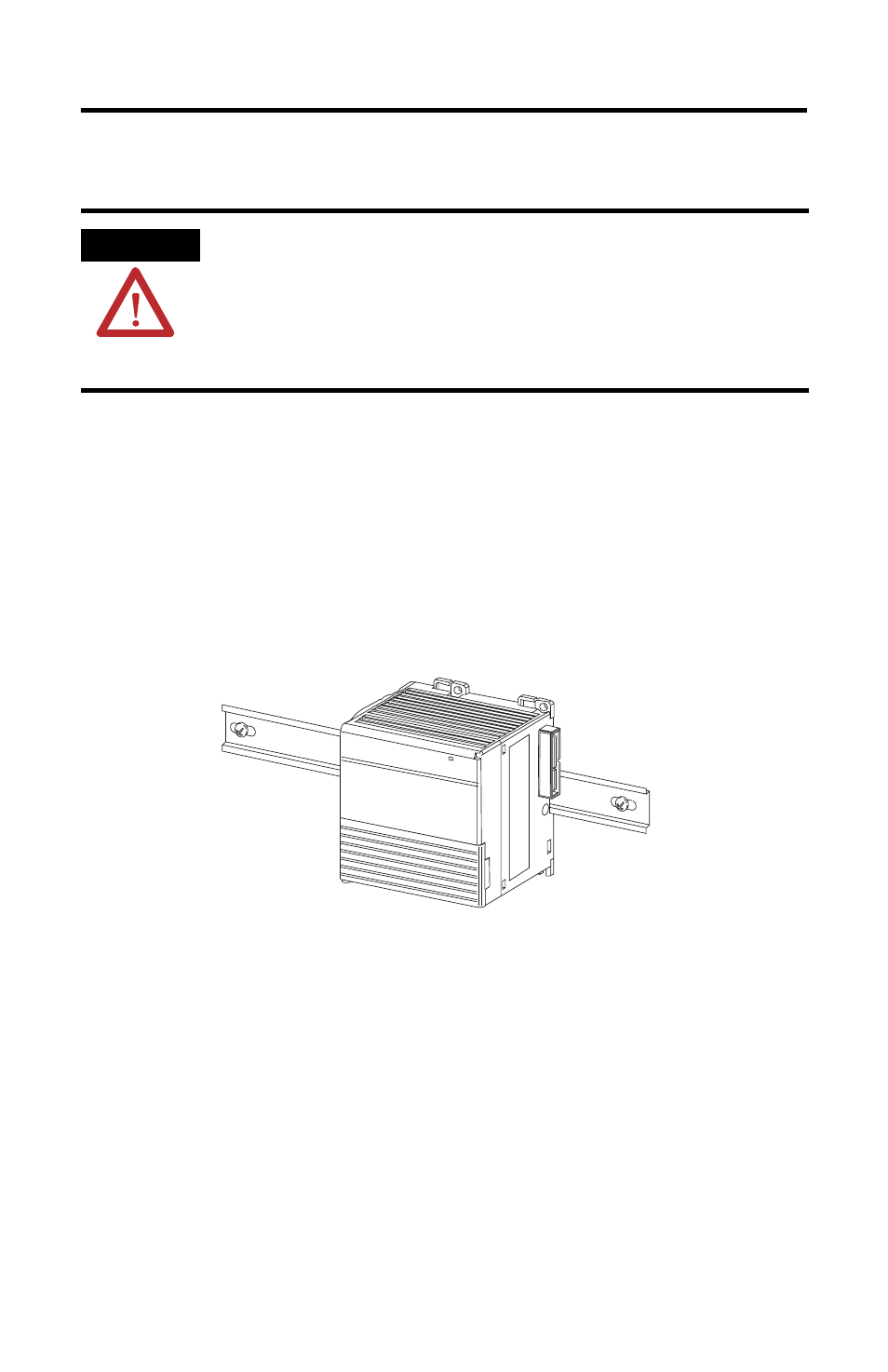

Mount the Power Supply to a DIN Rail
The power supply can be mounted using the following DIN rails:
• 35 x 7.5 mm (EN 50 022 - 35 x 7.5)
• 35 x 15 mm (EN 50 022 - 35 x 15)
1. Close the DIN rail latches.
2. Press the DIN rail mounting area of the power supply against the DIN rail.
The latches will momentarily open and close, locking into place.
The DIN rail mount of the power supply is now complete.
ATTENTION
This product is grounded through the DIN rail to chassis ground. Use
zinc-plated yellow-chromate steel DIN rail to assure proper grounding. The use
of other DIN rail materials (for example, aluminum and plastic) that can
corrode, oxidize, or are poor conductors, can result in improper or intermittent
grounding. Secure DIN rail to mounting surface approximately every 200 mm
(7.87 in.) and use end-anchors appropriately.
