Interpret status indicators – Rockwell Automation 1738-AENTR, Series B ArmorPOINT I/O Dual Port EtherNet/IP Adapter User Manual
Page 11

1738 ArmorPOINT I/O Dual Port EtherNet/IP Adapter 11
Publication 1738-IN030A-EN-P - July 2013
Interpret Status Indicators

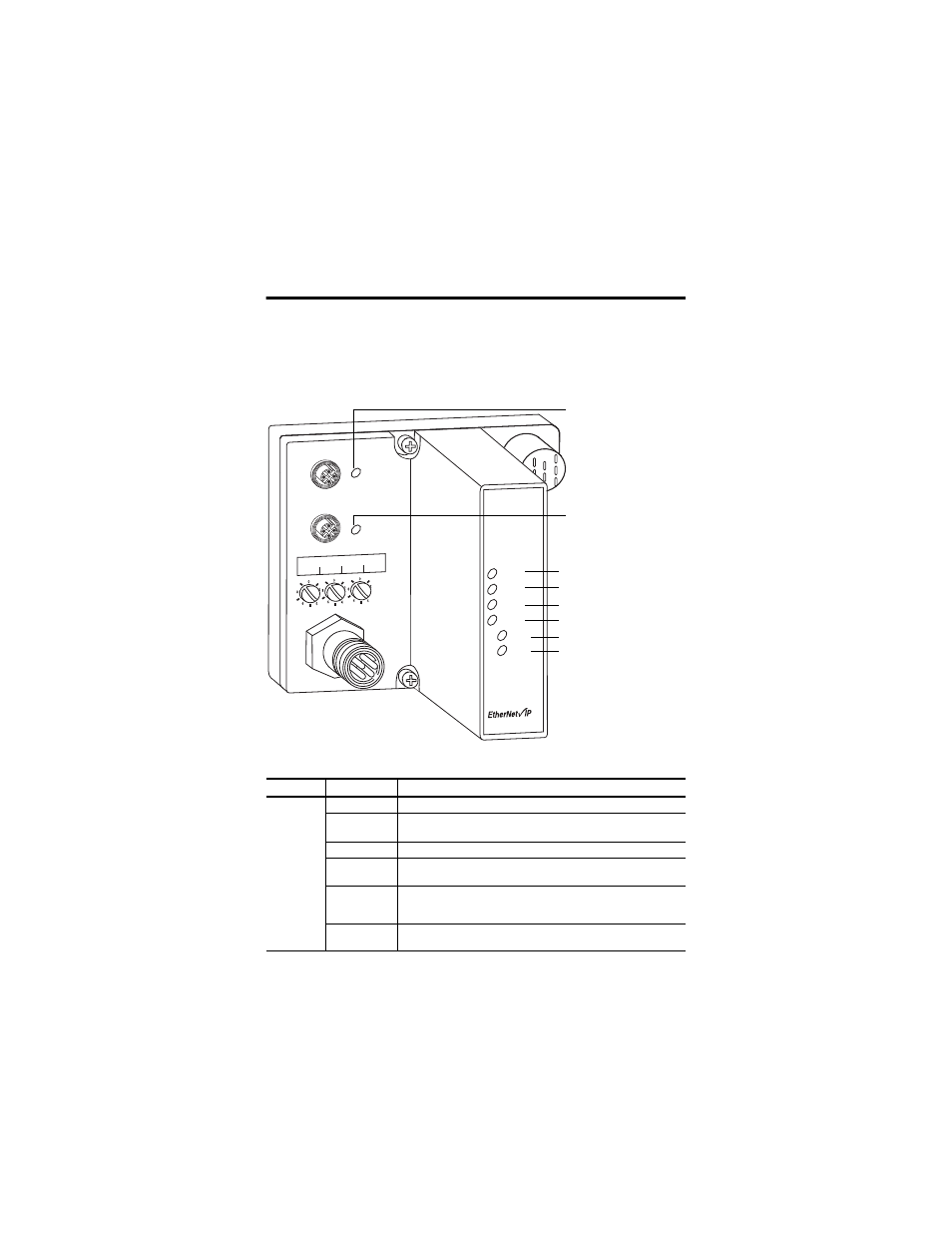

Refer to the following diagram and table for information on how to interpret the
status indicators.
ArmorPOINT I/O Dual Port EtherNet/IP Adapter, Series B
Indicator Status for Modules
Indicator
State
Description
Adapter
status
Off
No power applied to device
Flashing green
Device needs commissioning due to missing, incomplete, or
incorrect configuration.
Solid green
Device operating normally
Flashing red
Recoverable fault.
Complete firmware update, verify address switches.
Solid red
Unrecoverable fault:
• Self-test failure (checksum failure, RAM test failure at cycle power)
• Firmware fatal error).
Flashing
red/green
Module self-test
Adapter Status indicator
Network Activity indicator
Network Status indicator
System Power indicator
Adapter Power indicator
POINTBus Status
1738-AENTR
Series B
EtherNet I/P
Adapter
Status
Network
Activity
Network
Status
PointBus
Status
System
Power
Adapter
Power
conformance tested
™
PWR
IP ADDRESS
Link 2
Activity/
Status
Link 1
Activity/
Status
44830
Link 1 Activity/Status
indicator
Link 2 Activity/Status
indicator
