Rockwell Automation 1769-L31 CompactLogix Controller Installation Instructions User Manual
Page 8
8 1769-L31 CompactLogix Controller
Publication
1769-IN069C-EN-P - May 2008

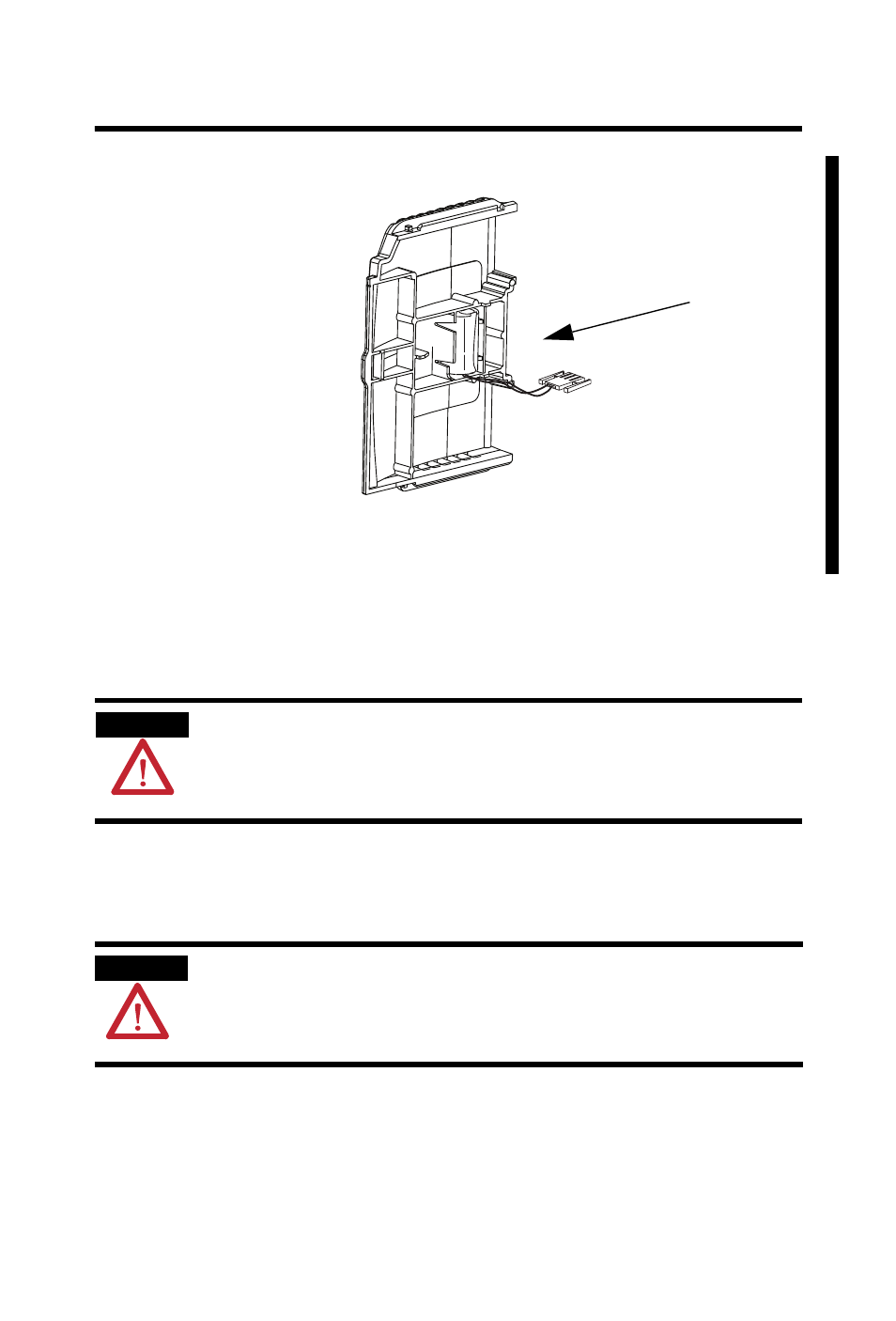

3. Insert the battery into the door, as shown.
4. Slide the battery door back until it clicks into position.
Install a 1784-CF64 or 1784-CF128 Industrial CompactFlash Card
(optional)
The optional industrial CompactFlash card provides nonvolatile memory for
a CompactLogix controller. The card is not required for controller operation.
Follow this procedure to install the card.
1. Push the locking tab to the right.
ATTENTION
Do not remove the CompactFlash card while the controller is reading from or
writing to the card, as indicated by a flashing green CF status indicator. This
could corrupt the data on the card or in the controller, as well as corrupt the
latest firmware in the controller.
WARNING
When you insert or remove the CompactFlash Card while power is on, an
electrical arc can occur. This could cause an explosion in hazardous location
installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
