8 MicroLogix 1762-OB8 Solid-State 24V DC Source Output Module
Publication 1762-IN008B-EN-P - July 2013
Field Wiring Connections
Grounding the Module
This product is intended to be mounted to a well-grounded mounting surface such as a metal
panel. Refer to Industrial Automation Wiring and Grounding Guidelines, Allen-Bradley
publication 1770-4.1, for additional information.
Output Wiring

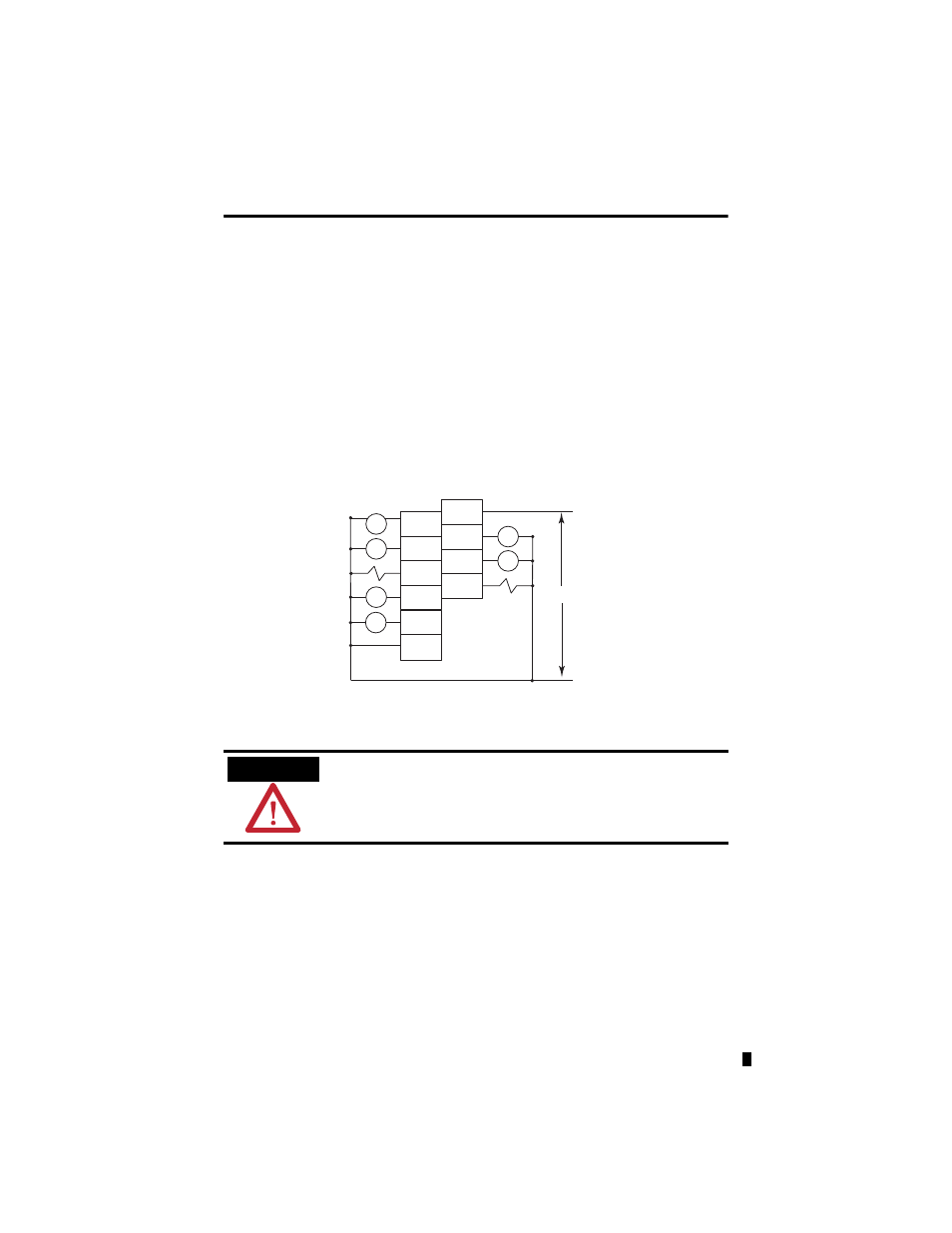

Basic wiring of the 1762-OB8 is shown below.
A write-on label is provided with the module. Mark the identification of each terminal with
permanent ink, and slide the label back into the door.
ATTENTION
Be careful when stripping wires. Wire fragments that fall into a module
could cause damage when power is applied. Once wiring is complete,
ensure the module is free of all metal fragments.
+DC
24V DC (source)
-DC
OUT 6
OUT 4
OUT 2
OUT 0
OUT 7
OUT 5
OUT 3
OUT 1
+VDC
CR
CR
CR
CR
CR
CR
DC COM
