6 MicroLogix 1762-OB8 Solid-State 24V DC Source Output Module
Publication 1762-IN008B-EN-P - July 2013

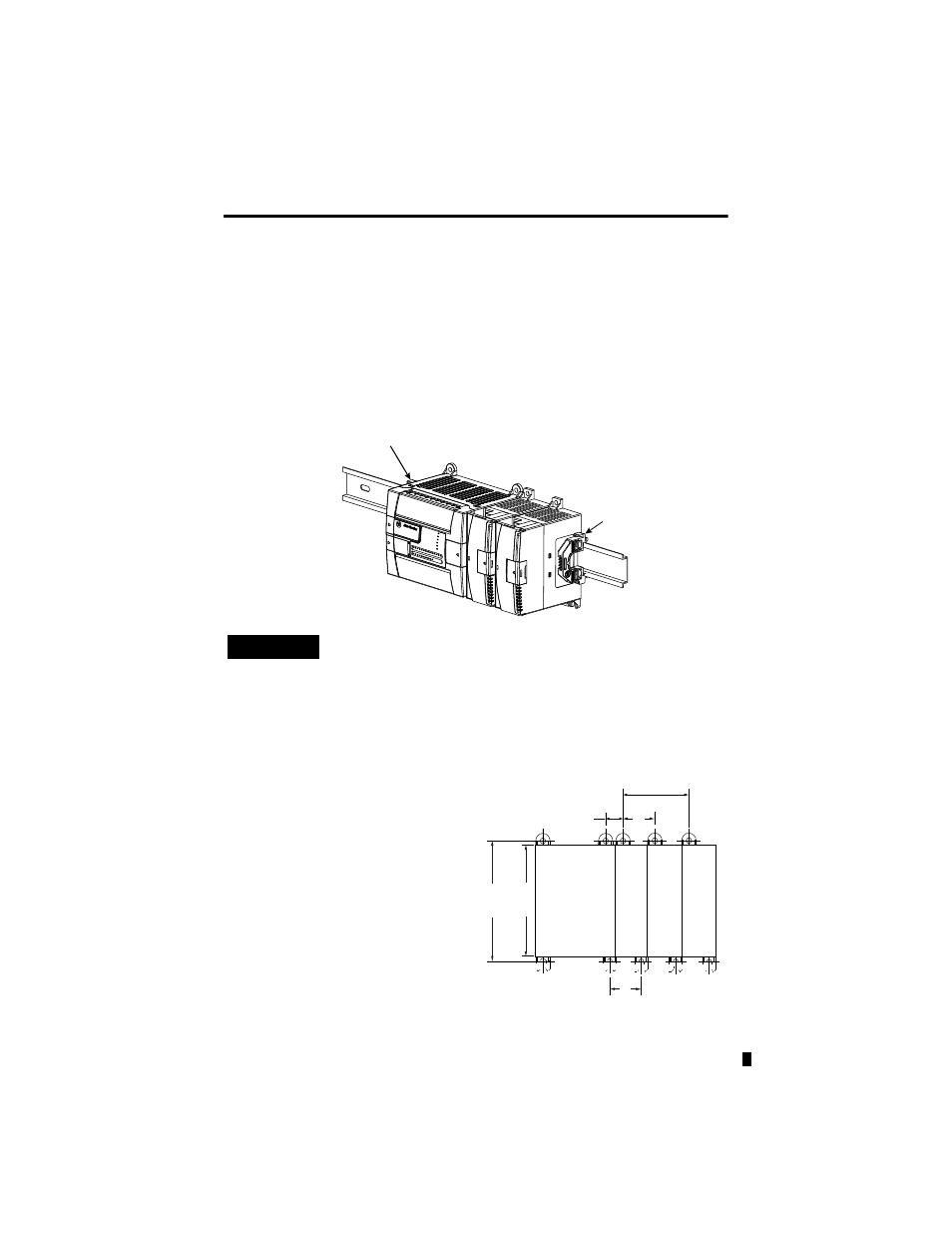

DIN Rail Mounting
The module can be mounted using the following DIN rails: 35 x 7.5 mm
(EN 50 022 - 35 x 7.5) or 35 x 15 mm (EN 50 022 - 35 x 15).
Before mounting the module on a DIN rail, close the DIN rail latch. Press the DIN rail
mounting area of the module against the DIN rail. The latch will momentarily open and lock
into place.
Use DIN rail end anchors (Allen-Bradley part number 1492-EA35 or 1492-EAH35) for
vibration or shock environments.
Panel Mounting
Use the dimensional template shown below to mount the module. The preferred mounting
method is to use two M4 or #8 panhead screws per module. M3.5 or #6 panhead screws may also
be used, but a washer may be needed to ensure a good mechanical contact. Mounting screws are
required on every module.
TIP
For environments with greater vibration and shock concerns, use the panel
mounting method described below, instead of DIN rail mounting.
End Anchor
End Anchor
90
(3.54)
100
(3.94)
40.4
(1.59)
40.4
(1.59)
14.5
(0.57)
For more than two modules: (number of modules - 1) x 40.4 mm (1.59 in.)
NOTE: All dimensions are in mm (inches).
Hole spacing tolerance: ±0.4 mm (0.016 in.).
Mic
ro
Lo
gix 1200
Contro
ller
MicroLogix 1
200
Expansion I/
O
MicroLogix 1200
Expan
si
on I/
O
MicroLog
ix 1200
Expa
nsion I/O
