Compact 1769-OF8V Analog Output Module 11
Publication 1769-IN066D-EN-P - June 2010

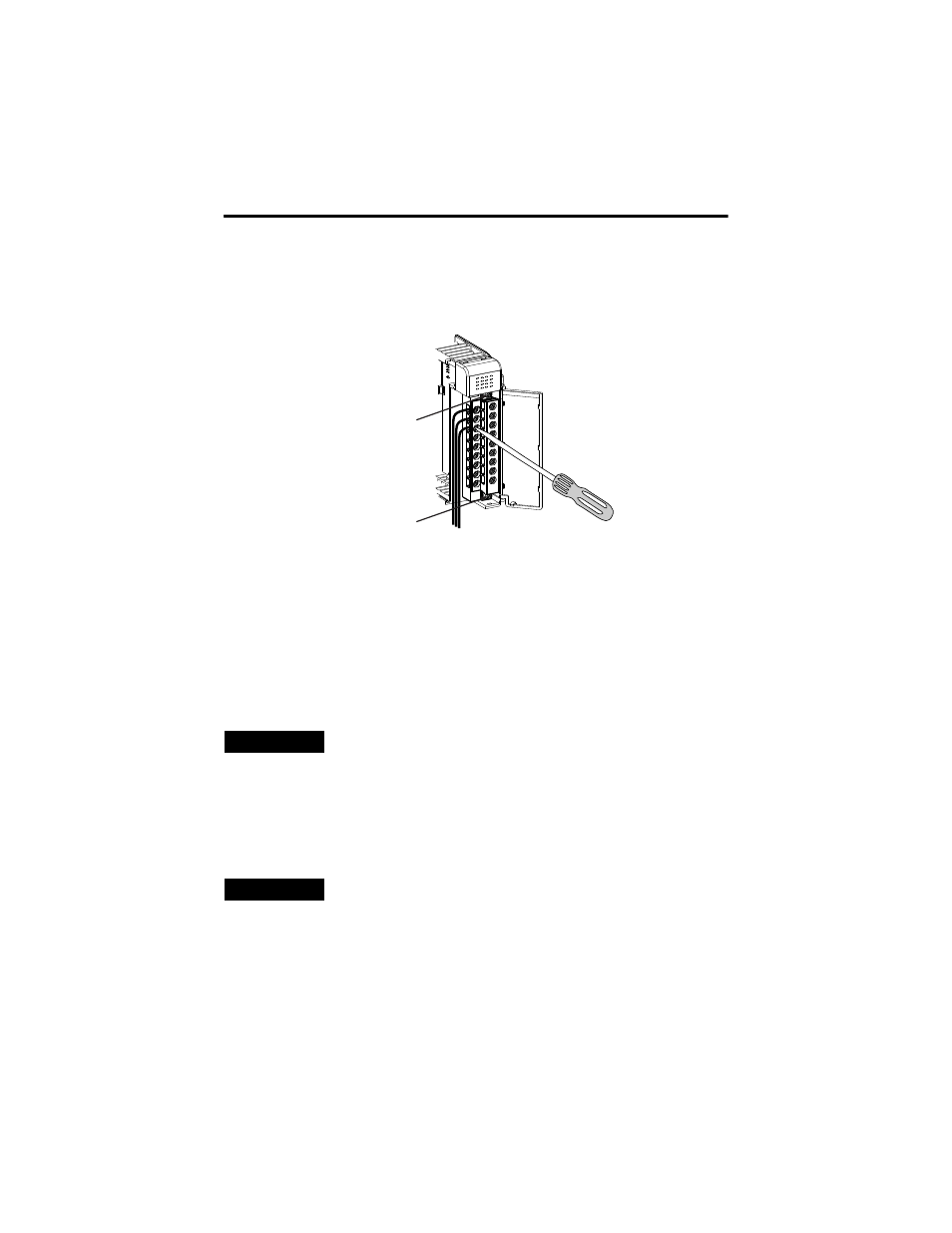

Removing the Finger-Safe Terminal Block
To remove the terminal block, loosen the upper and lower retaining screws. The terminal
block will back away from the module as you remove the screws. When replacing the terminal
block, torque the retaining screws to 0.46 Nm (4.1 in-lbs).
Wiring the Finger-Safe Terminal Block
When wiring the terminal block, keep the finger-safe cover in place.
1. Loosen the terminal screws to be wired.
2. Route the wire under the terminal pressure plate. You can use the bare wire or a spade
lug. The terminals will accept a 6.35 mm (0.25 in.) spade lug.
3. Tighten the terminal screw making sure the pressure plate secures the wire.
Recommended torque when tightening terminal screws is 0.68 Nm (6 in-lbs).
TIP
The terminal screws are non-captive. Therefore, it is possible to use a
ring lug [maximum 1/4 inch o.d. with a 0.139 inch minimum i.d. (M3.5)]
with the module.
TIP
If you need to remove the finger-safe cover, insert a screw driver into
one of the square, wiring holes and gently pry the cover off. If you wire
the terminal block with the finger-safe cover removed, you will not be
able to put it back on the terminal block because the wires will be in the
way.
wiring the
finger-safe
terminal block
upper retaining screw
lower retaining screw
