POINT I/O Protected Sink Output Module 7
Publication 1734-IN585C-EN-E - December 2005
Install the Mounting Base
To install the mounting base on the DIN rail, proceed as follows.
1. Position the mounting base vertically above the installed units
(adapter, power supply, or existing module).
2. Slide the mounting base down, allowing the interlocking side
pieces to engage the adjacent module or adapter.
3. Press firmly to seat the mounting base on the DIN rail.
The mounting base snaps into place.
ATTENTION
POINT I/O is grounded through the DIN rail to chassis
ground. Use zinc-plated yellow-chromate steel DIN rail to
assure proper grounding. The use of other DIN rail
material (for example, aluminum and plastic) that can
corrode, oxidize, or are poor conductors, can result in
improper or intermittent grounding.
Secure DIN rail to mounting surface approximately every
200 mm (7.8 in.).

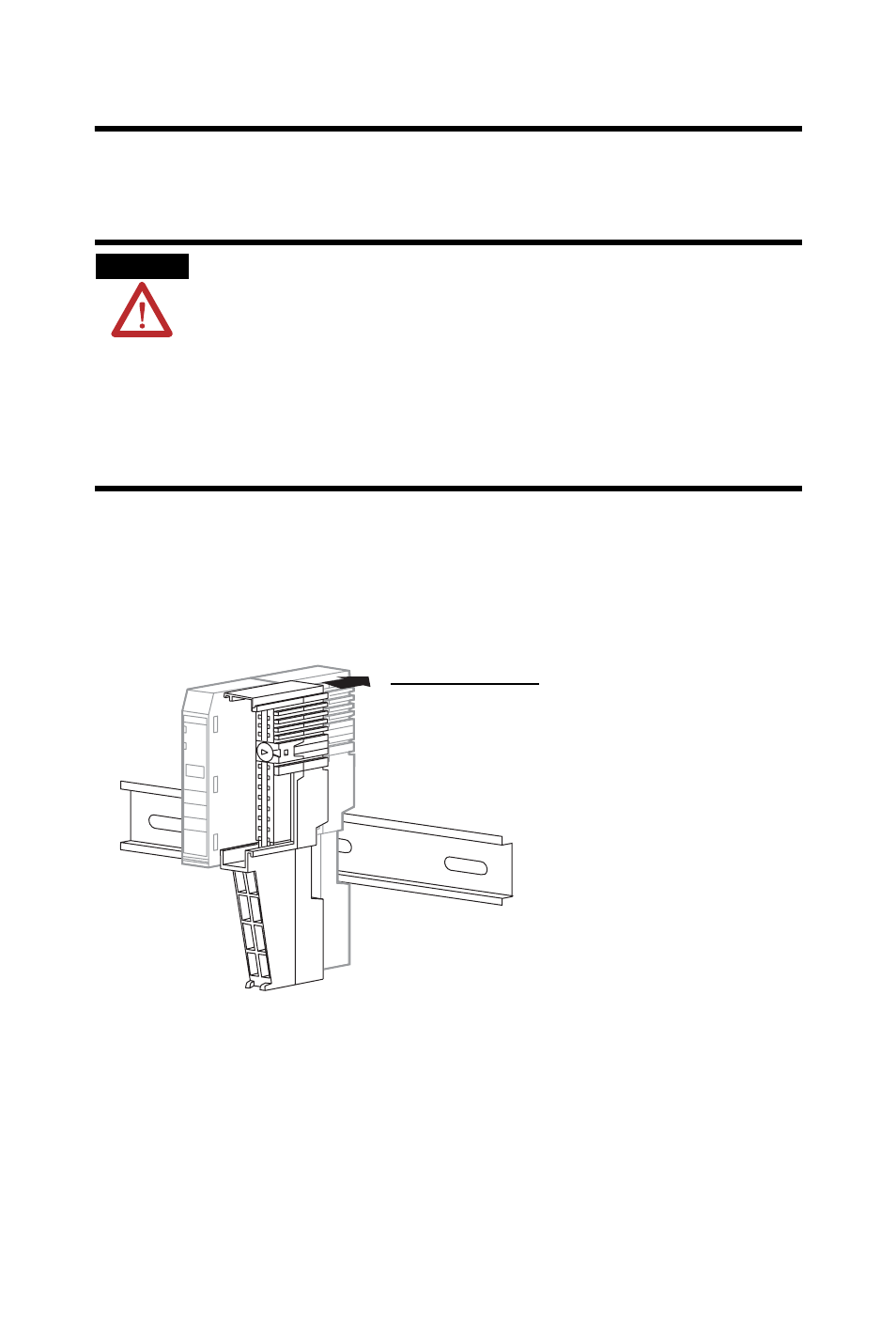

Slide the mounting base to
allow the interlocking side
pieces to engage the
adjacent module or
adapter.
31586
