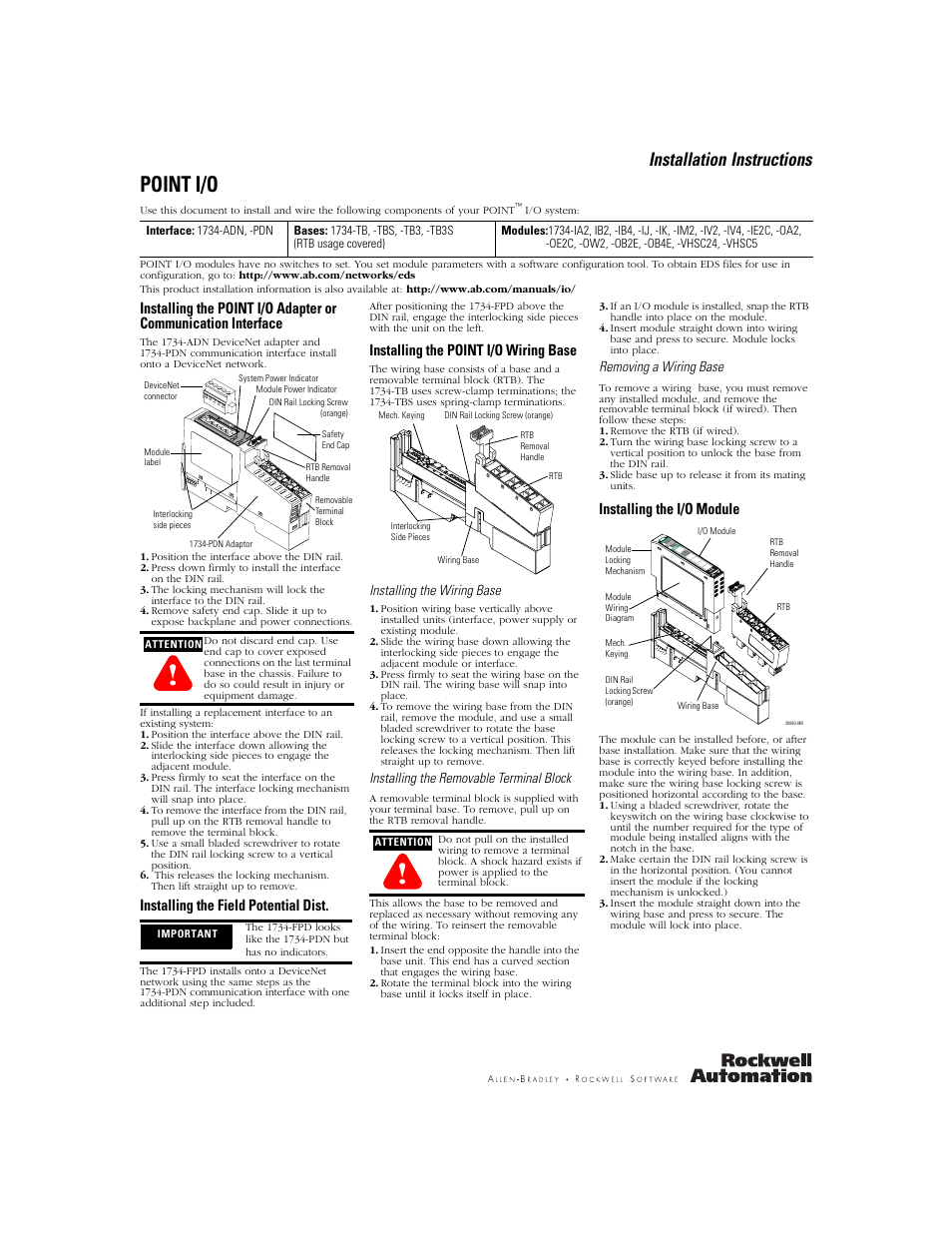

Rockwell Automation 1734 Point I/O Installation Instructions User Manual
Point i/o, Installation instructions, Installing the field potential dist
Table of contents
Document Outline
- POINT I/O
- Installing the POINT I/O Adapter or Communication Interface
- Installing the Field Potential Dist.
- Installing the POINT I/O Wiring Base
- Installing the I/O Module
- Wiring Diagrams
- Wiring Diagrams
- Specifications
- 1734-TB, -TBS, -TB3 and -TB3S Specifications
- 1734-ADN Specifications
- 1734-PDN Specifications
- 1734-FPD Specifications
- 1734-AC Input Modules (1734-IA21, -IM22)
- 1734-AC Output Modules1 (1734-OA2)
- 1734 DC Input Sink Modules1 (1734-IB2, -IB4)
- 1734 DC Input Source Modules1 (1734-IV2, -IV4,)
- 1734 DC Electronically Protected Output Modules (1734-OB2E, -OB4E)
- 1734 Analog Modules (1734-IE2C, -OE2C)
- 1734 Relay Module (1734-OW2)
- 1734-Counter Modules (1734-IJ, -IK)
- 1734-Very High Speed Counter Modules (1734-VHSC24, -VHSC5)
- European Communities (EC) Directive Compliance
