10 POINT I/O 24V dc Digital Diagnostics Input Module
Publication
1734-IN029A-EN-E - January 2007
Slide the Mounting Base Until Side Pieces Engage
3. Press firmly to seat the mounting base on the DIN rail until the
mounting base snaps into place.
31586

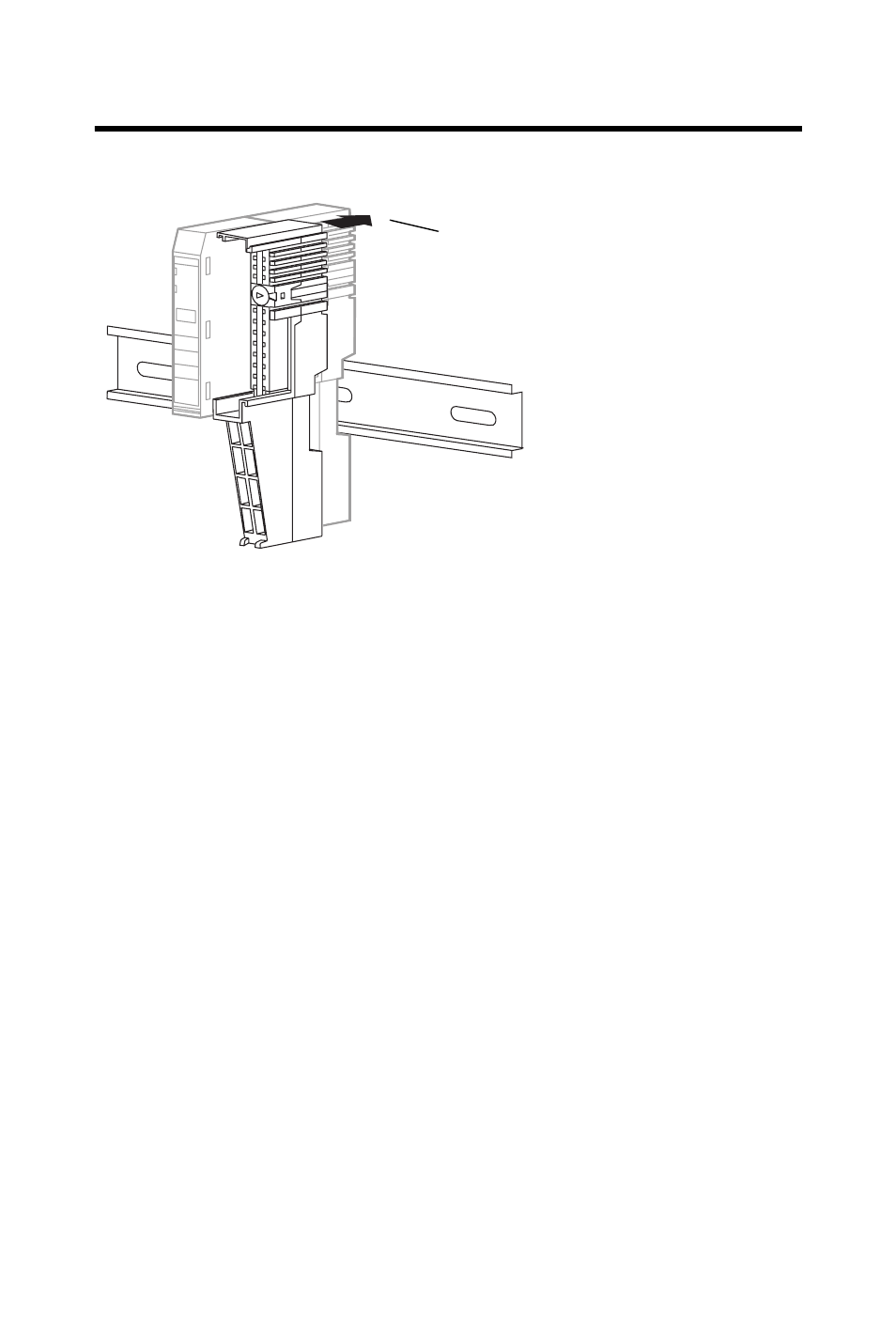

Slide the mounting base until the
interlocking side pieces engage the
adjacent module or adapter.
