8 Remote I/O Scanner
Publication 1747-IN060D-EN-P - November 2002
Required Tools and Equipment
Have the following tools and equipment ready:
•
medium blade screwdriver
•
termination kit (the package, containing resistors and a ring lug, which was
included with the scanner)
•
approximately 38 cm (15 inches) of #20 AWG wire for grounding the drain
shield to the SLC chassis (for Series A retrofits)
•
adequate length of RIO communication cable (Belden™ 9463) for your
specific application
Installation
Make sure you have set the DIP switch properly before installing the scanner.

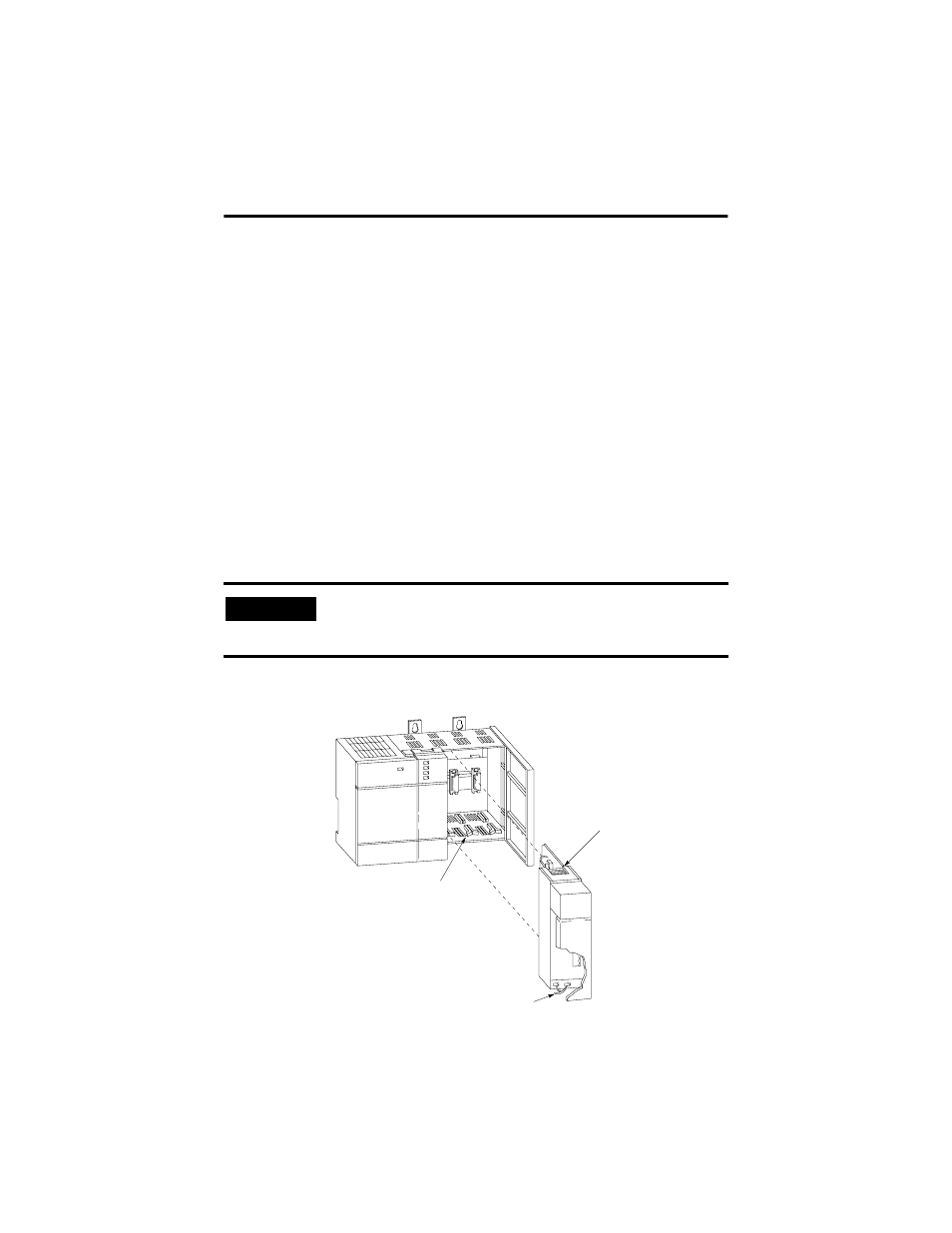

Insertion
IMPORTANT
Before installation, make sure that your modular SLC power
supply has adequate reserve current capacity. The scanner
requires 600 mA at 5V dc.
Card Guide
Module Release
Cable Tie
