3. Installation Guidelines
How to mount the Overlockers to the truss?
To mount the overlocker to the truss, handle as follow :
1. Open the fixation handle. (image 3-30)
2. Hook the clamp around the tube.
The trigger automatically shuts the clamp.
3. Close the fixation handle and secure it by turning the hand screw. (image 3-31)

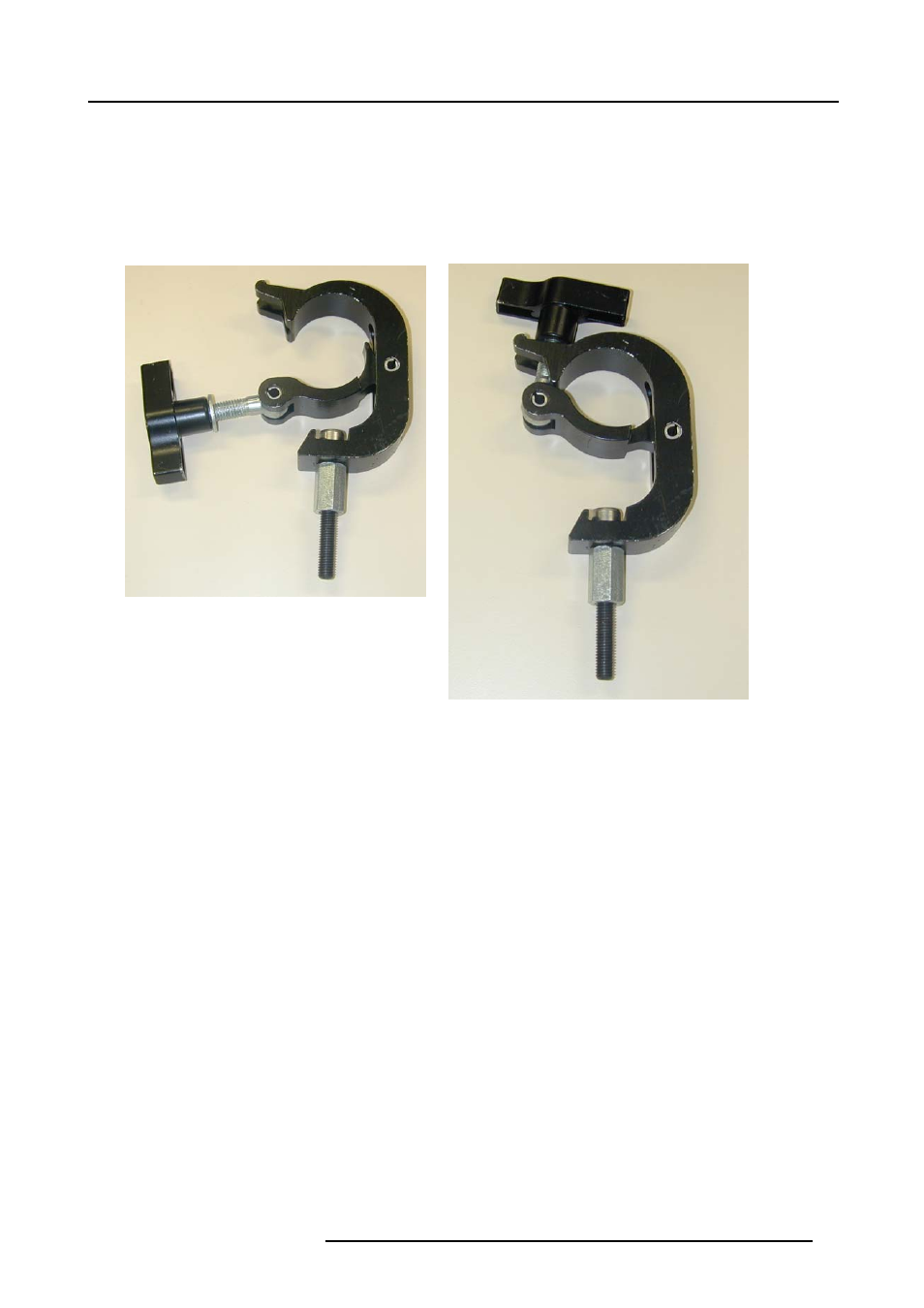

Image 3-30
Opening the rigging clamp
Image 3-31
Closing the rigging clamp
