3–2 Install and Connect I/O Adapter Module and I/O Modules
Publication 1772Ć10.1 - March 1996

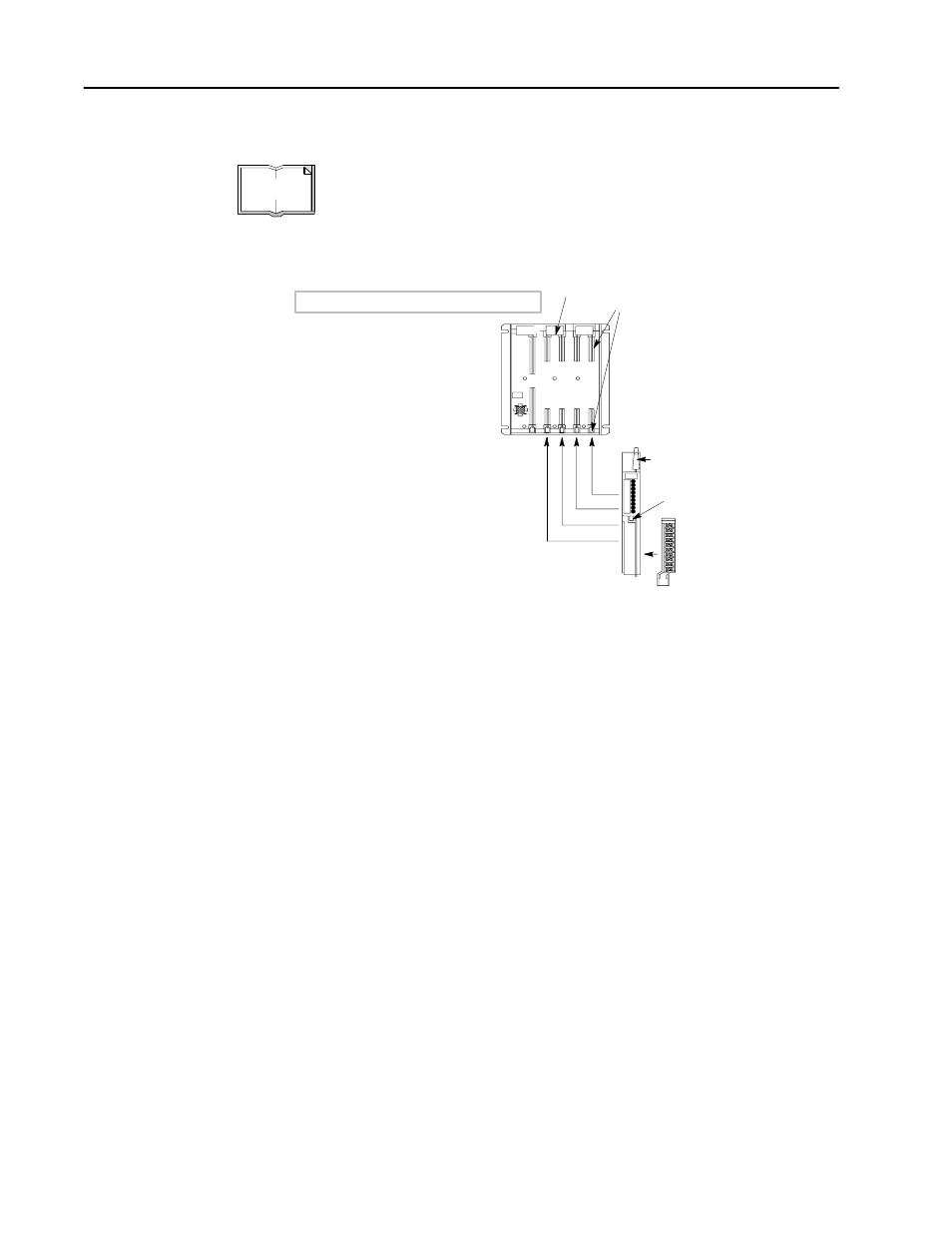

Install I/O Modules
32 I/O
Field Wiring
Arm
Module Extraction Tab
Wiring Arm
Locking Tab
I/O Module
Modules
Guides
Install each I/O module.
a
Use the locking latch to secure the module in place.
Module
Locking
Latch
b
Snap the field wiring arms for each I/O module onto the
horizontal bar of the I/O chassis and connect it to the module.
For more
information...
Specific wiring information for each type of I/O module is contained in the product
data publication for that specific module. Therefore, refer to the appropriate product
data publication when you follow these steps.
c
d
e
Remove the terminal cover from each wiring arm and connect
the wires between the I/O devices and the wiring arm terminals.
Connect the power and ground wires.
Use tie wraps to gather the wires at each wiring arm, then bundle
the wires so the arms can pivot freely.
f
Replace the terminal covers and label the terminal status indicators appropriately.
