FLEX Integra 16 Sink Input Module 7
Publication 1793-5.8 - December 1999

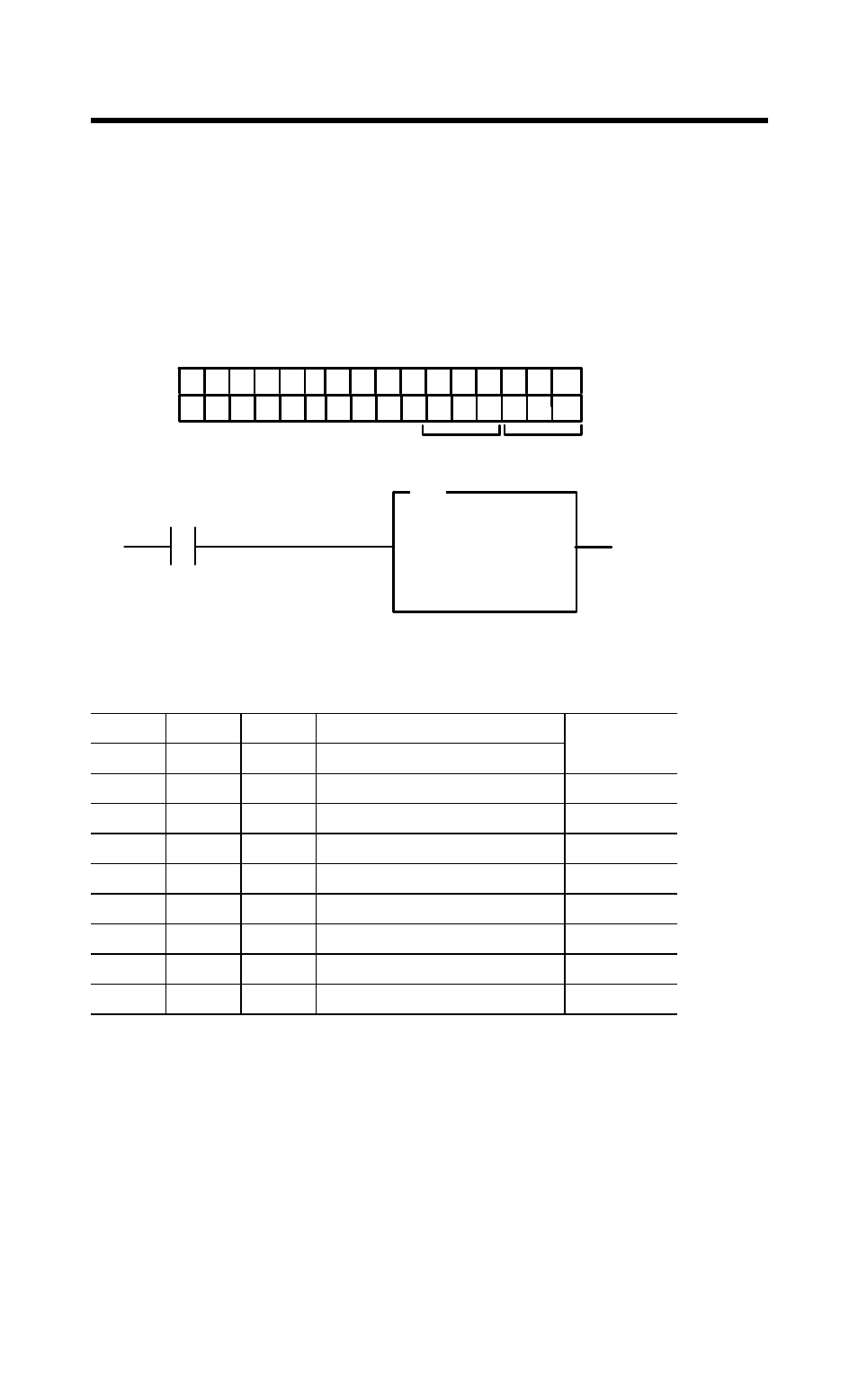

Setting the Input Delay Time
You can select the input delay time (DT) for channels 00 thru 011, and
channels 12-15. Select the input delay time by setting the corresponding
bits in the output image table (complementary word) for the module.
For example, to set a delay time of 4ms for an input module at address rack
1, module group 0, set bits05, 04, 03, 02, 01 and 00 as shown below.
Input Delay Times
Important: Input and output wiring must be in accordance with Class I,
Division 2 wiring methods and in accordance with the
authority having jurisdiction.
02 01 00 Filter Time for Inputs 00-11
Selected
Filter Time
05 04 03 Filter Time for Inputs 12-15
0 0 0 Filter Time 0 (default) 250
μs
0 0 1 Filter Time 1 500
μs
0 1 0 Filter Time 2 1ms
0 1 1 Filter Time 3 2ms
1 0 0 Filter Time 4 4ms
1 0 1 Filter Time 5 8ms
1 1 0 Filter Time 6 16ms
1 1 1 Filter Time 7 32ms
15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00
1 0 0
= 44 Octal or 36 decimal
Write delay time on system startup.
Write DT to complement
of input module.
Fill File
Source
Destination
Length
3
#O:010
1
I:000
00
FLL
O:010
Dec.
41335B
1 0 0
DT 00-11 DT 12-15
