Rockwell Automation 1734-IE8C Installation Instructions - Manual (Page 8)

8 POINT I/O 8 Channel High Density Current Input Modules
Publication 1734-IN033B-EN-P - November 2010
Install the Mounting Base
To install the mounting base on the DIN rail, proceed as follows:
1. Position the mounting base vertically above the installed units
(adapter, power supply or existing module).
2. Slide the mounting base down allowing the interlocking side pieces to
engage the adjacent module or adapter.
3. Press firmly to seat the mounting base on the DIN rail. The mounting
base will snap into place.
4. To remove the mounting base from the DIN rail, remove the module,
and use a small bladed screwdriver to rotate the base locking screw to
a vertical position. This releases the locking mechanism. Then lift
straight up to remove.

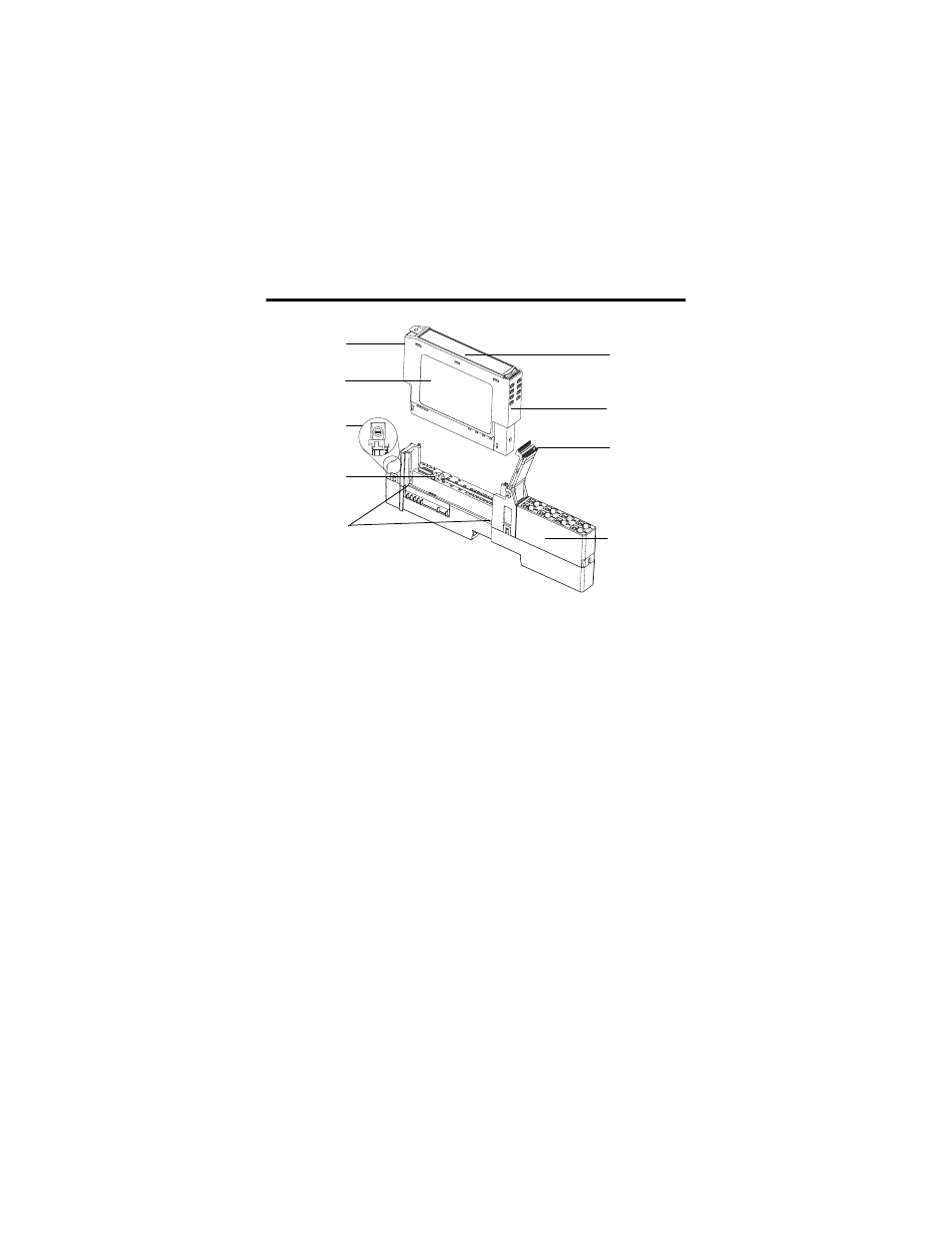

44221
1734-TOP or
1734-TOPS
one-piece
terminal base
with screw or
spring clamp
Insertable
I/O module
Slide-in
writable label
Handle
Module locking
mechanism
Interlocking
side pieces
DIN rail locking
screw (orange)
Module wiring
diagram
Mechanical
keying (orange)
