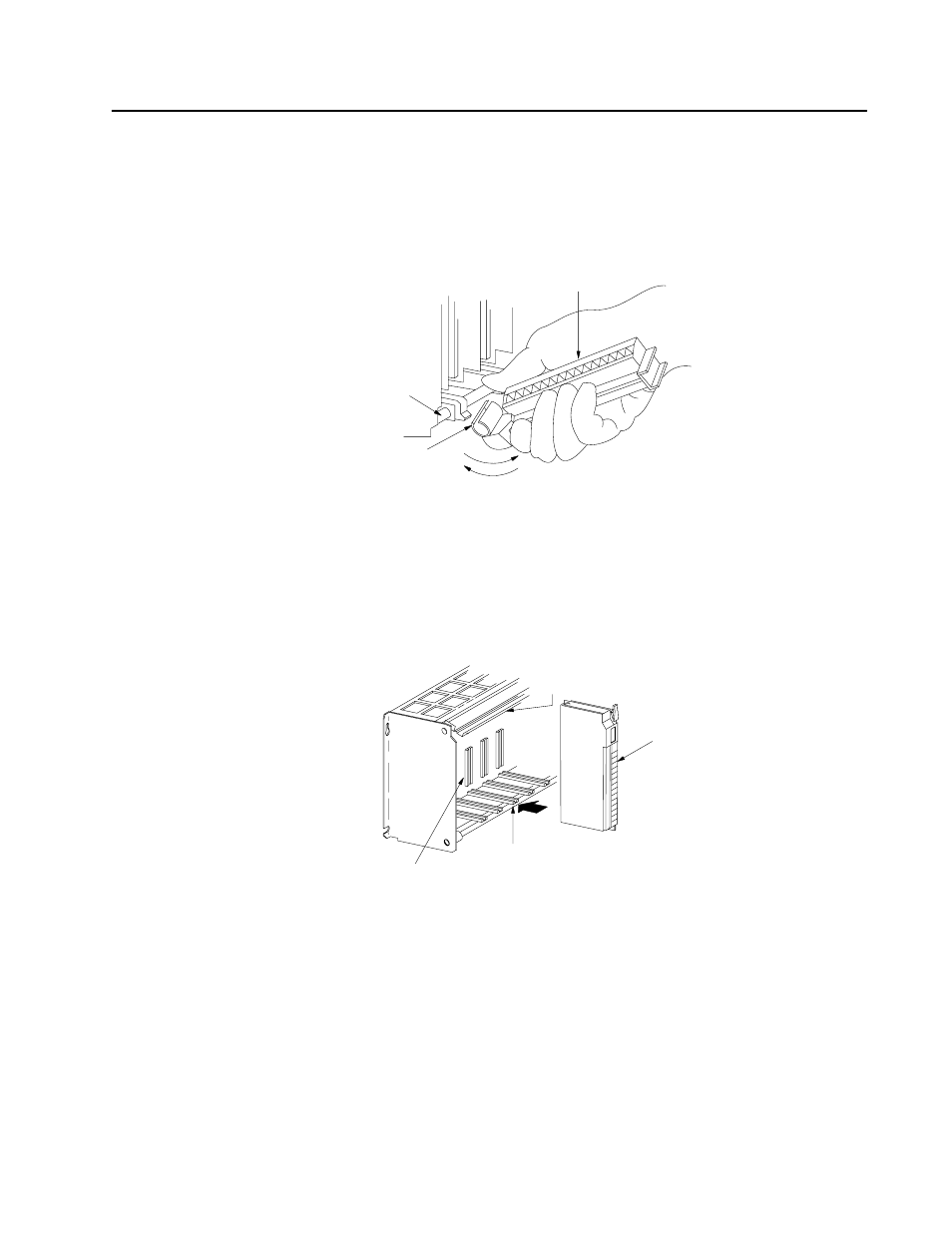

Step

2

Publication 1772Ć10.2 - March 1996

Install I/O Modules

Install Field Wiring Arms

horizontal

bar

CĆshaped

bracket

remove

install

wiring arm

Install I/O Modules

I/O module

locking bar

card guides

corresponding keyed slot
