Step
6
Publication 1772Ć10.2 - March 1996
Connect Programming
Terminal

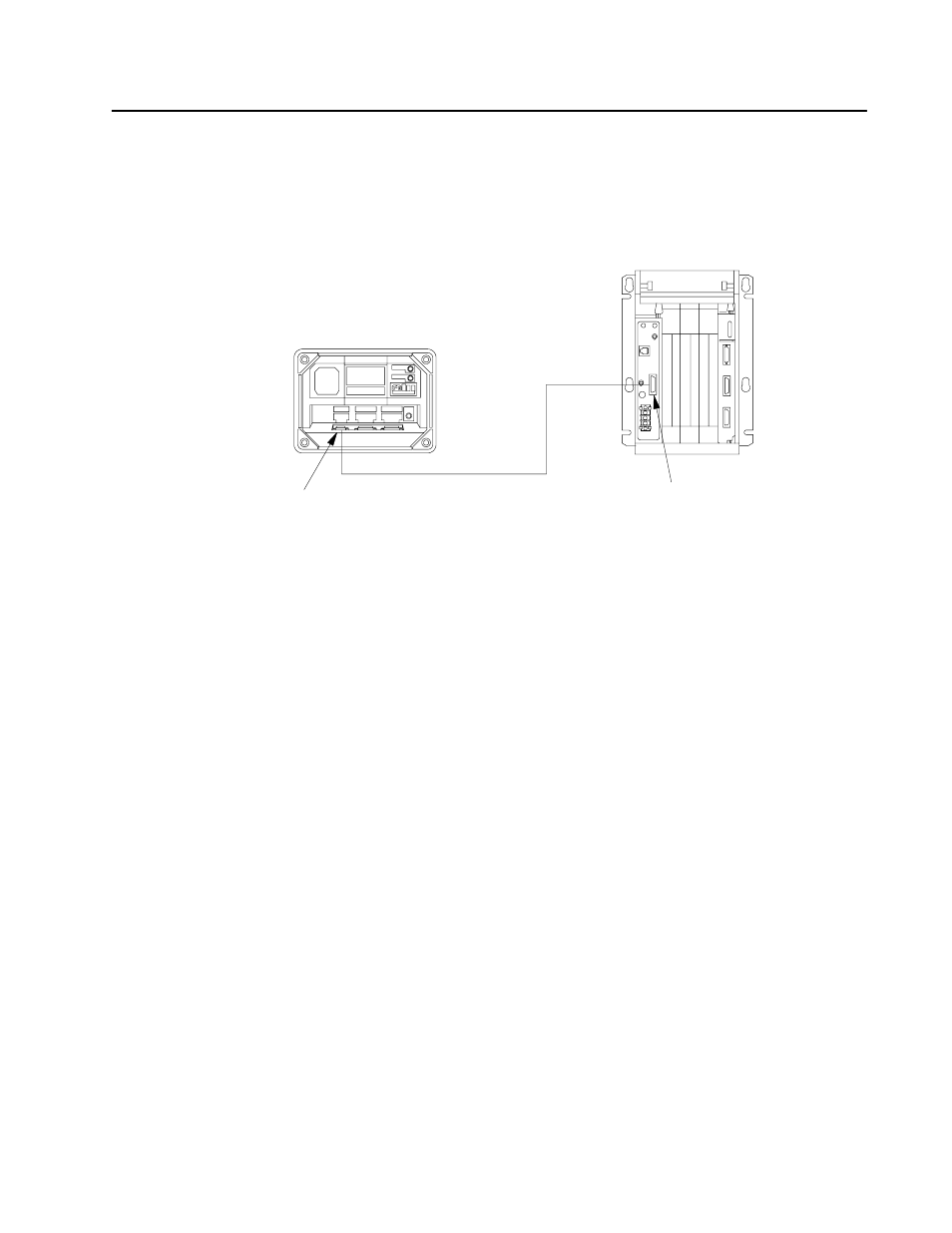

Channel A
Industrial Terminal
(rear view)
Program Panel
Interconnect Cable
Interface
MiniĆPLCĆ2/02, Ć2/16, Ć2/17
PLCĆ2 Family
cat. no. 1772ĆTC
10 ft (3.05 cm)
Turn the power switch on the front of the terminal to the OFF position
and plug the ac power cord into the terminal.
a
If your processor has a power supply, plug the ac power cord into
the ac power source.
b
Connect one end of the 1772ĆTC Interconnect Cable to Channel A
at the back of the terminal and connect the other end to the socket
labelled INTFC at the front of the processor.
c
Place the PLCĆ2 family keytop overlay onto the keyboard and turn
the power switch on the front of the terminal to the ON position.
d
Turn the power switch of the processor to the ON position and
press the keys [1] [1] on the terminal keyboard.
e
