Rockwell Automation 1786-RPFS ControlNet Modular Repeater Short-distance Fiber Module Installation Instruction User Manual
Page 9

ControlNet Modular Repeater Short-distance Fiber Module 9
Rockwell Automation Publication 1786-IN012B-EN-P - November 2010

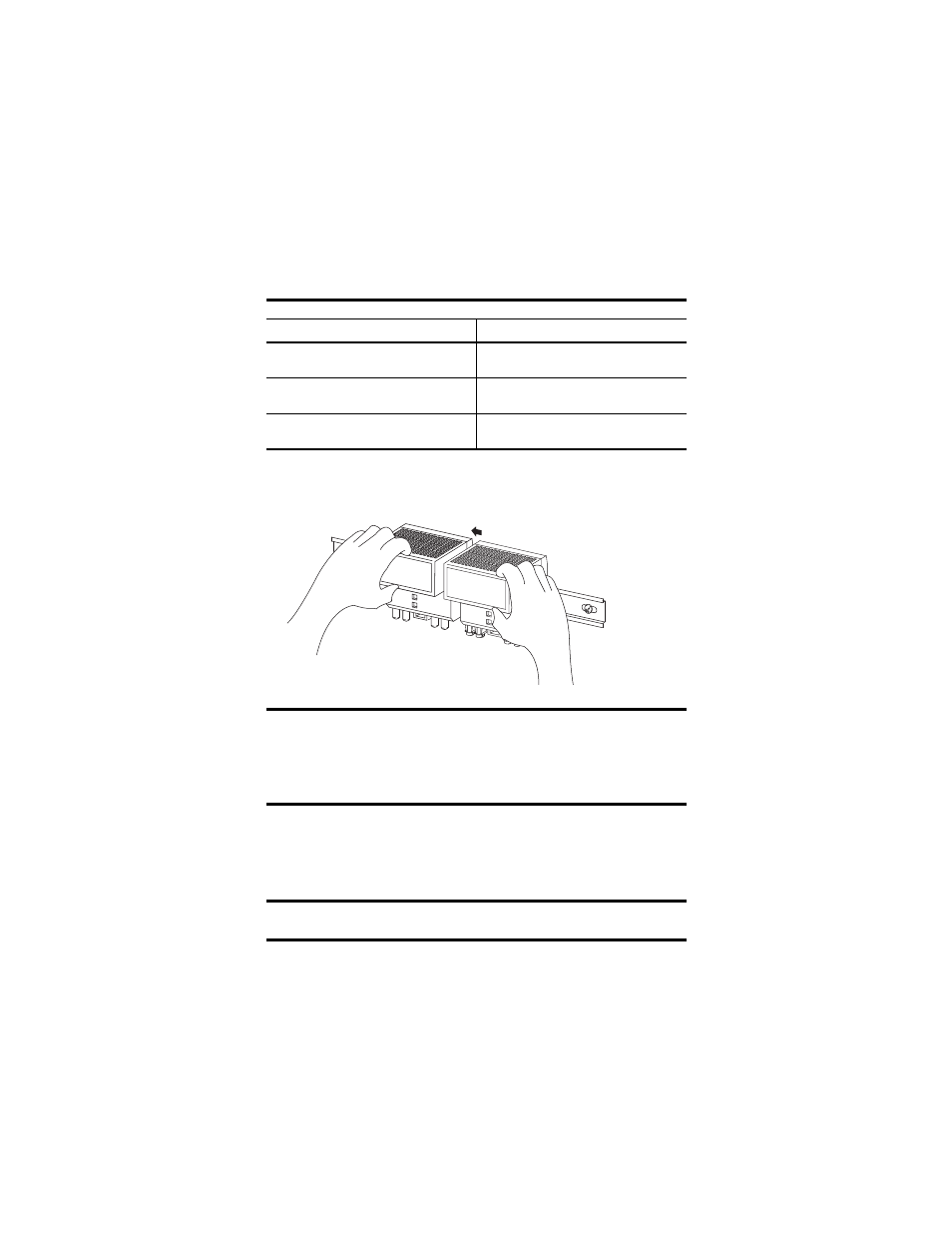

4. If applicable, slide the module to the left to mate with the repeater
adapter or another repeater module.
You can attach a maximum of four modules to the repeater adapter, or, the
number of modules whose total power consumption does not exceed
1.6 A @ 5V DC, whichever occurs first.
If
Then
You will use a channel
Remove the protective cap from the
channel.
You will not use a channel
Keep the protective cap on to protect the
channel from dust.
You place the module in storage
Keep the protective cap on to protect the
channel from dust.
IMPORTANT
Make certain that you secure the adapter and repeater modules
with DIN-rail anchors. If you do not, loss of communication or
module damage may result.
Consult with your local distributor for attenuation specifications
before you purchase your fiber media components.
IMPORTANT
If you exceed the module or power limit, you may damage the
repeater adapter and modules.
30077
