Troubleshoot the module – Rockwell Automation 1786-RPFS ControlNet Modular Repeater Short-distance Fiber Module Installation Instruction User Manual
Page 11
ControlNet Modular Repeater Short-distance Fiber Module 11
Rockwell Automation Publication 1786-IN012B-EN-P - November 2010

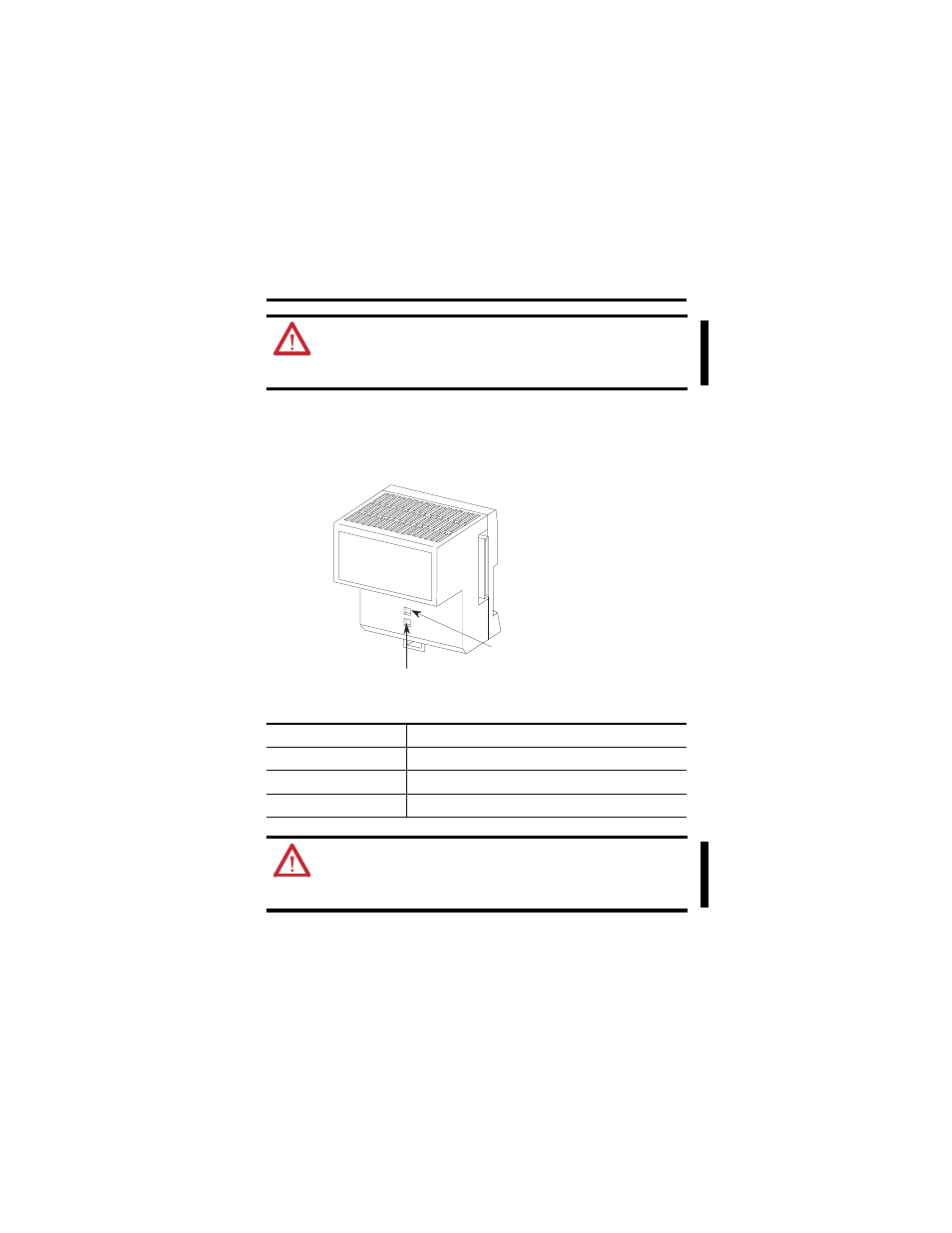

Troubleshoot the Module
Use the channel 1 or 2 status indicators to check module status and troubleshoot
the module.
ATTENTION: Under certain conditions, viewing the optical port
may expose the eye to hazard. When viewed under some
conditions, the optical port may expose the eye beyond the
maximum permissible exposure recommendations
Indicator
Probable Cause
Off
Repeater not connected to the power supply.
Green
Channel is operating normally.
Flashing Green
No activity on the channel.
ATTENTION: Class 1 laser product. Laser radiation is present when
the system is open and interlocks bypassed. Only trained and qualified
personnel should be allowed to install, replace, or service this
equipment.
30081
Channel 1 Status
Channel 2 Status
