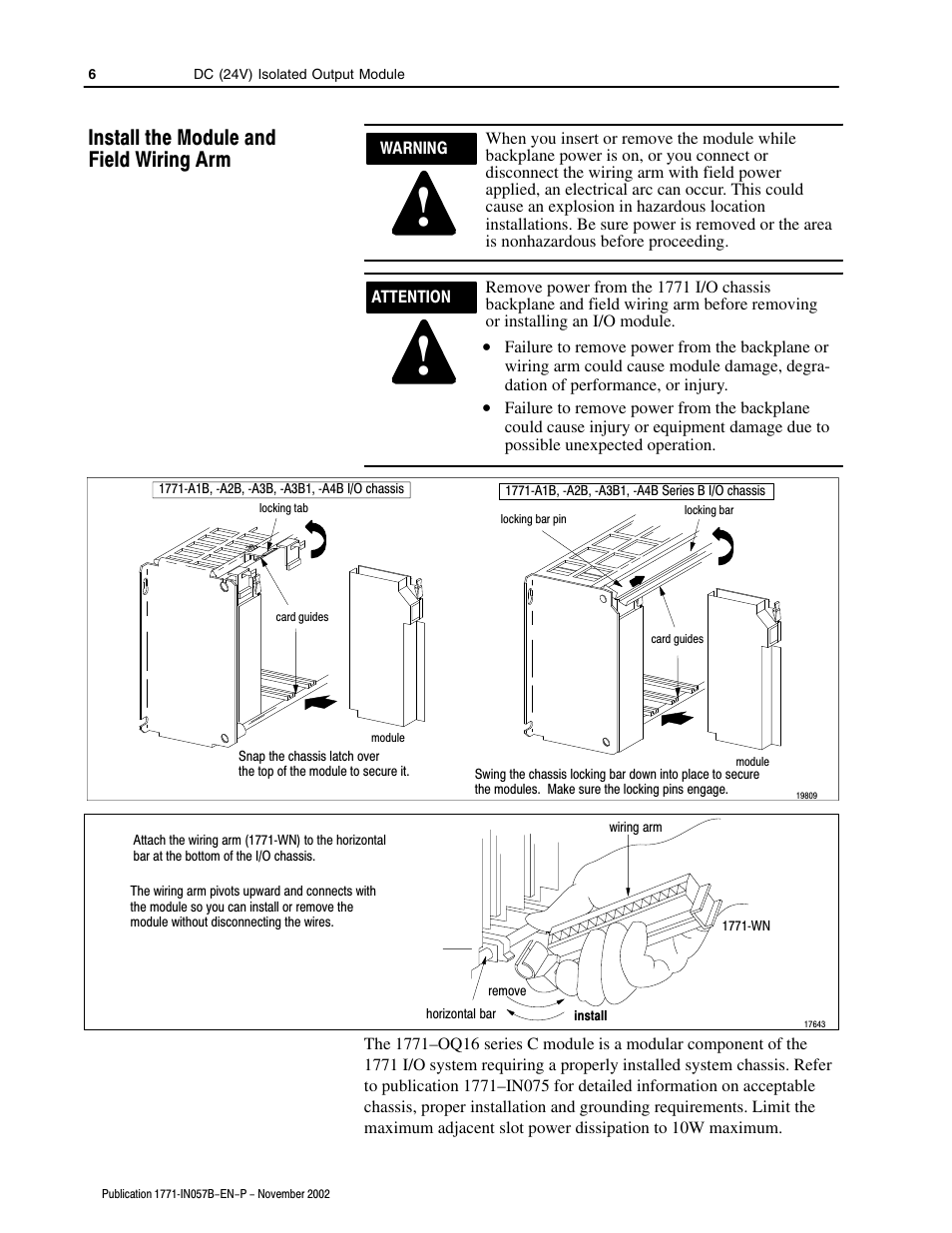

Install the module and field wiring arm – Rockwell Automation 1771-OQ16/C Isolated Output Module Installation Instr User Manual
Page 6
