8 Compact™ 16-Point 100 to 240V ac Solid State Output Module

Publication 1769-IN061A-EN-P - December 2001

Field Wiring Connections

Grounding the Module

This product is intended to be mounted to a well-grounded mounting surface such
as a metal panel. Additional grounding connections from the module’s mounting
tabs or DIN rail (if used), are not required unless the mounting surface cannot be
grounded. Refer to Industrial Automation Wiring and Grounding Guidelines,
Allen-Bradley publication 1770-4.1, for additional information.

Output Wiring

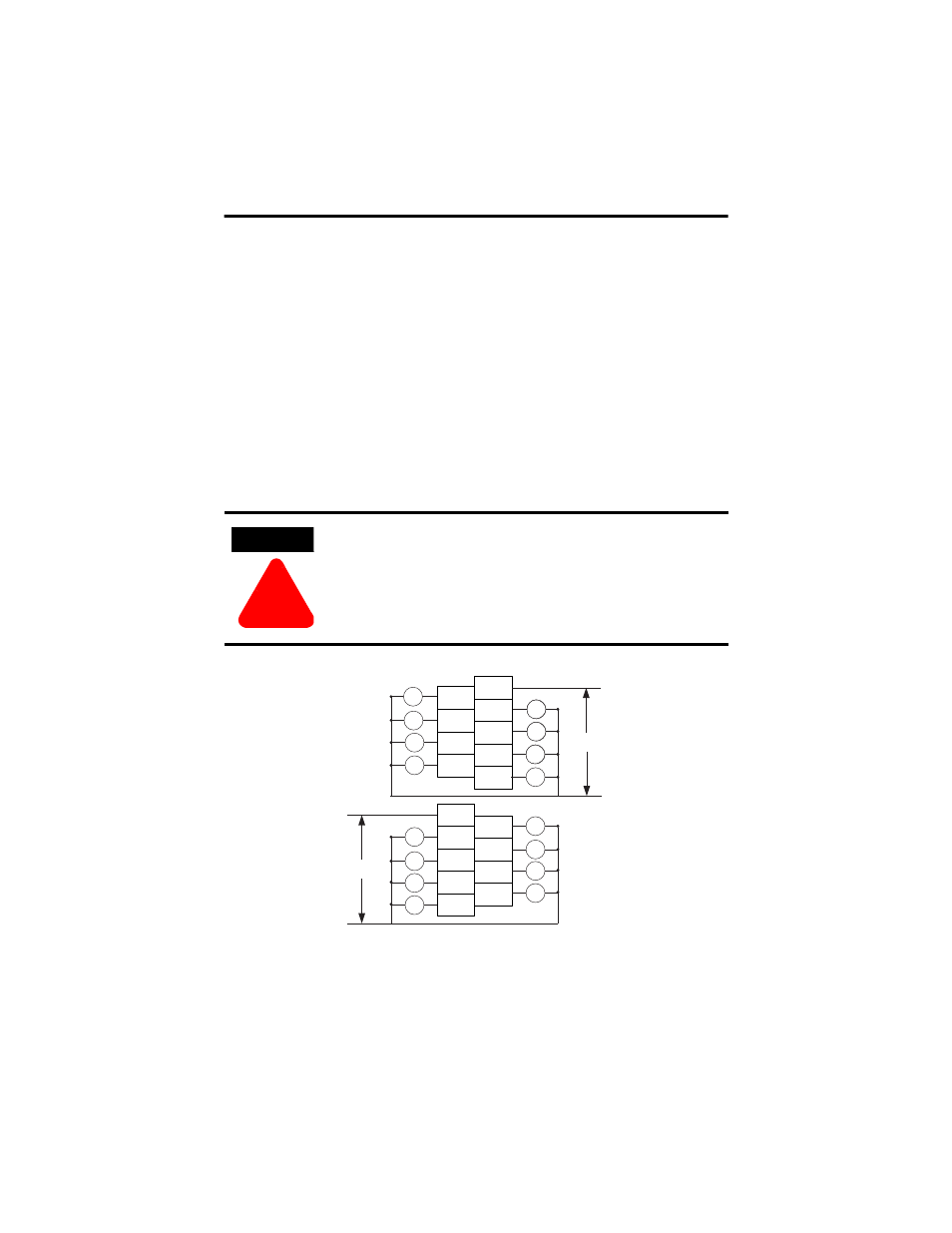

Basic wiring

(1)

of output devices to the 1769-OA16 is shown below.

ATTENTION

Be careful when stripping wires. Wire fragments that fall into a
module could cause damage at power up. Once wiring is
complete, ensure the module is free of all metal fragments.

(1)

Surge Suppression - Connecting surge suppressors across your external load will extend the life of the triac outputs. For
additional details, refer to

Industrial Automation Wiring and Grounding Guidelines

, Allen-Bradley publication 1770-4.1.

100 to 240V ac

OUT10

OUT 8

VAC 2

OUT6

OUT4

OUT11

OUT 9

OUT 7

OUT 5

OUT 3

100 to 240V ac

VAC 1

OUT 1

OUT 0

OUT 2

OUT 12

OUT 14

OUT 13

OUT 15
