Connect one end of the cable to each 1394-dclm – Rockwell Automation 1394-DCLM DC Link Module User Manual
Page 5

Publication 1394-5.11 December 1999
Installing Your 1394 DC Link Module
5
2. Connect one end of the cable to each 1394-DCLM.

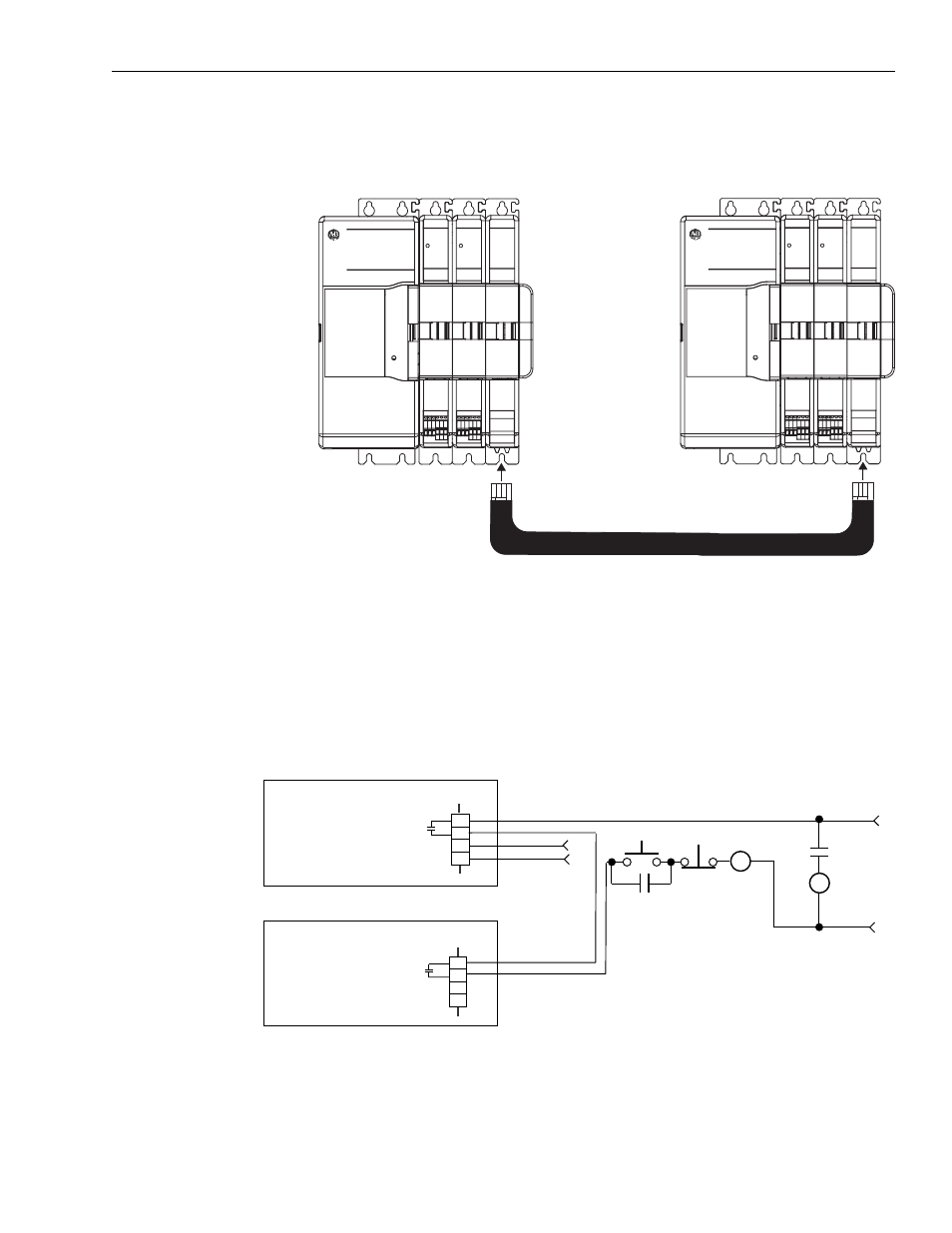

Figure 7
Connecting the Communication Cable to the 1394-DCLMs
3. Secure the cable to the 1394-DCLMs with the screws provided
(4M x 10) using 12-15 lb-in. of torque.
4. Modify the start/stop circuit so system 2 (slave DC link) is wired
in series to system 1 (master DC link). Figure 8 illustrates GMC
or GMC Turbo system modules connected together.
Figure 8
Start/Stop Circuit for Systems Connected Together
Cable End
DC Link
Module
1394 Digital Servo Controller
System Module
Allen-Bradley
DC Link
Module
1394 Digital Servo Controller
System Module
Allen-Bradley
Cable End
24V AC/DC
or
120V AC,
50/60 HZ
STOP
START
CR1
CR1
CR1
M1
DRIVE O.K. RELAY
RATED AT 115VAC, 24VDC,
1A INDUCTIVE
24
25
26
27
DRIVE O.K. RELAY
RATED AT 115VAC, 24VDC,
1A INDUCTIVE
24
25
26
27
1394 SYSTEM MODULE 1
1394 SYSTEM MODULE 2
TB2
TB2
GMC or GMC Turbo
Input Wiring Board
GMC or GMC Turbo
Input Wiring Board
