Variable Depth, Flange Operated Circuit Breaker Mechanisms 10
4e
Circuit Breaker Installation (Cont'd)
Publication 1494V-IN105E-EN-P - September 2014 PN-242292 DIR 10000787413 (Version 04)
90 - 130 lb-in
40 - 60 lb-in
22 lb-in
Go to Page 11 to assemble connecting rod and springs to handle
Cont'd
14 Attach toggle adjustment plate.
10
11
13
140G-N; 140MG-N

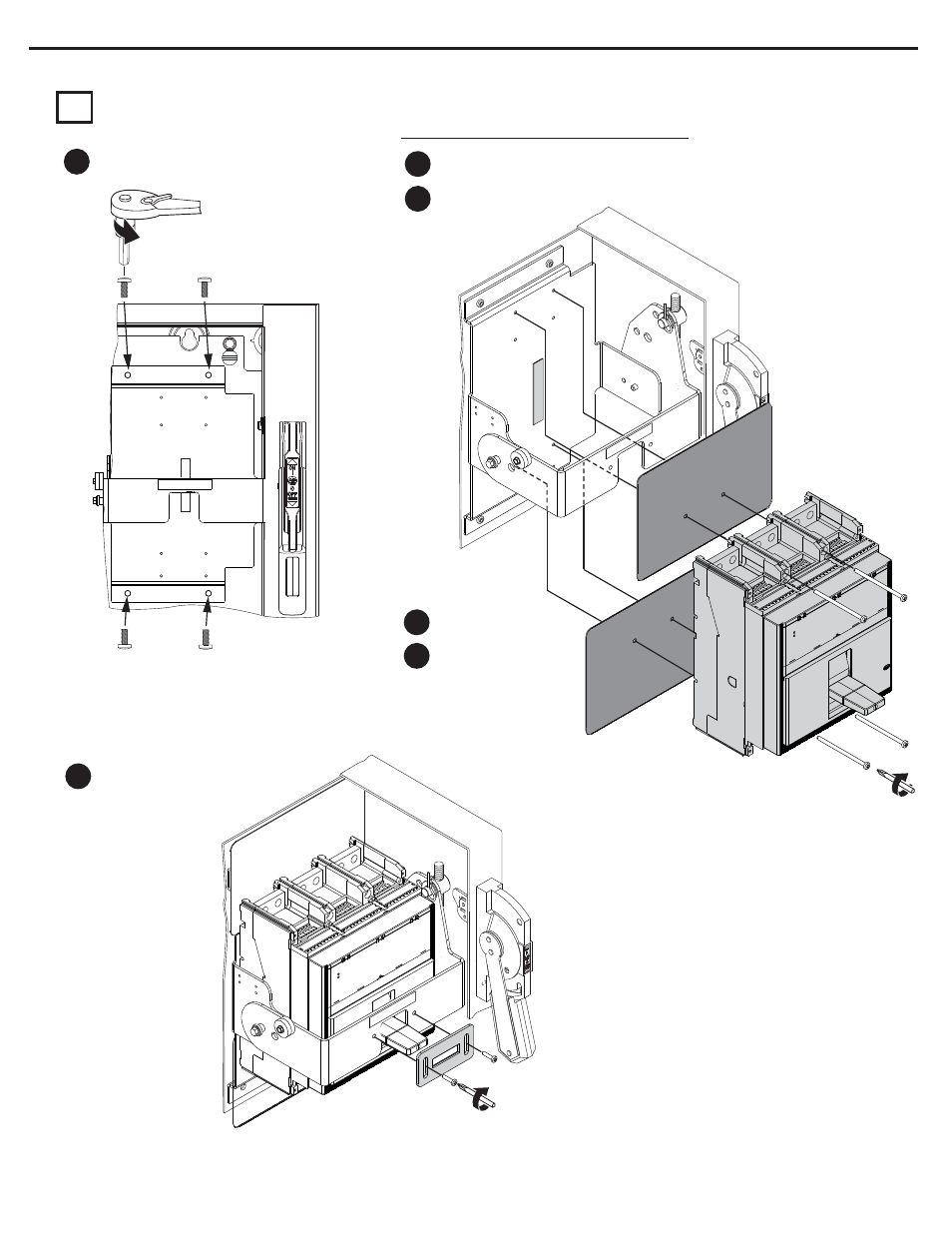

9 Install circuit breaker operating
mechanism into panel.
L
Install insulation barrier (provided with lugs).
Remove liner from two-sided tape.
Align holes on insulation barrier with holes on operating mechanism.
12 Press firmly in place.
Install circuit breaker
onto insulation barrier
and mechanism.
TA
P
E
