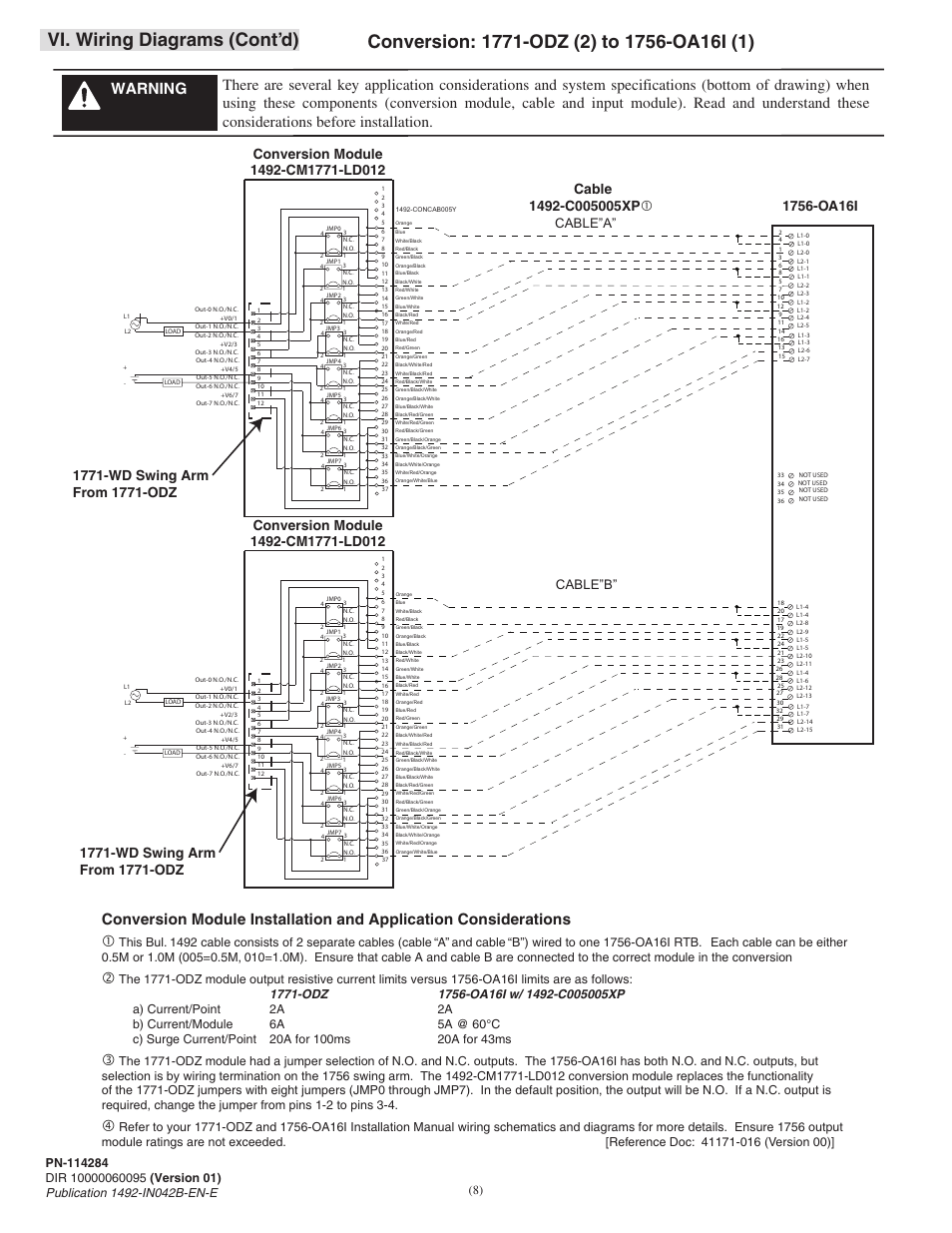

Vi. wiring diagrams (cont’d), Cable”a, Cable”b – Rockwell Automation 1492-CM1771-LD0012 Field Wire Conversion Module User Manual
Page 8
