Installation, cont’d, Outside right side panel 40-75, Hp/460v drives – Rockwell Automation 1397 Enhanced Field Supply - 3010, 3020 User Manual
Page 5
1397 Enhanced Field Supply Card
5
1397-5.24 March, 2005
Outside Right Side Panel
40-75
HP/230V Drives
75-150
HP/460V Drives
100-150
HP/230V Drives
200-300
HP/460V Drives
Retaining
Screw
Retaining
Screw
Retaining
Screw
Retaining
Screw
400-600
HP/460V Drives
Retaining
Screw
Retaining
Screw
Retaining
Screw
Retaining
Screw
1.5-30
HP/230V Drives
3-60
HP/460V Drives
Retaining
Screw
Retaining
Screw
Retaining
Screw
Retaining
Screw
Retaining
Screw
Retaining
Screw
Retaining
Screw
Retaining
Screw
❏
5

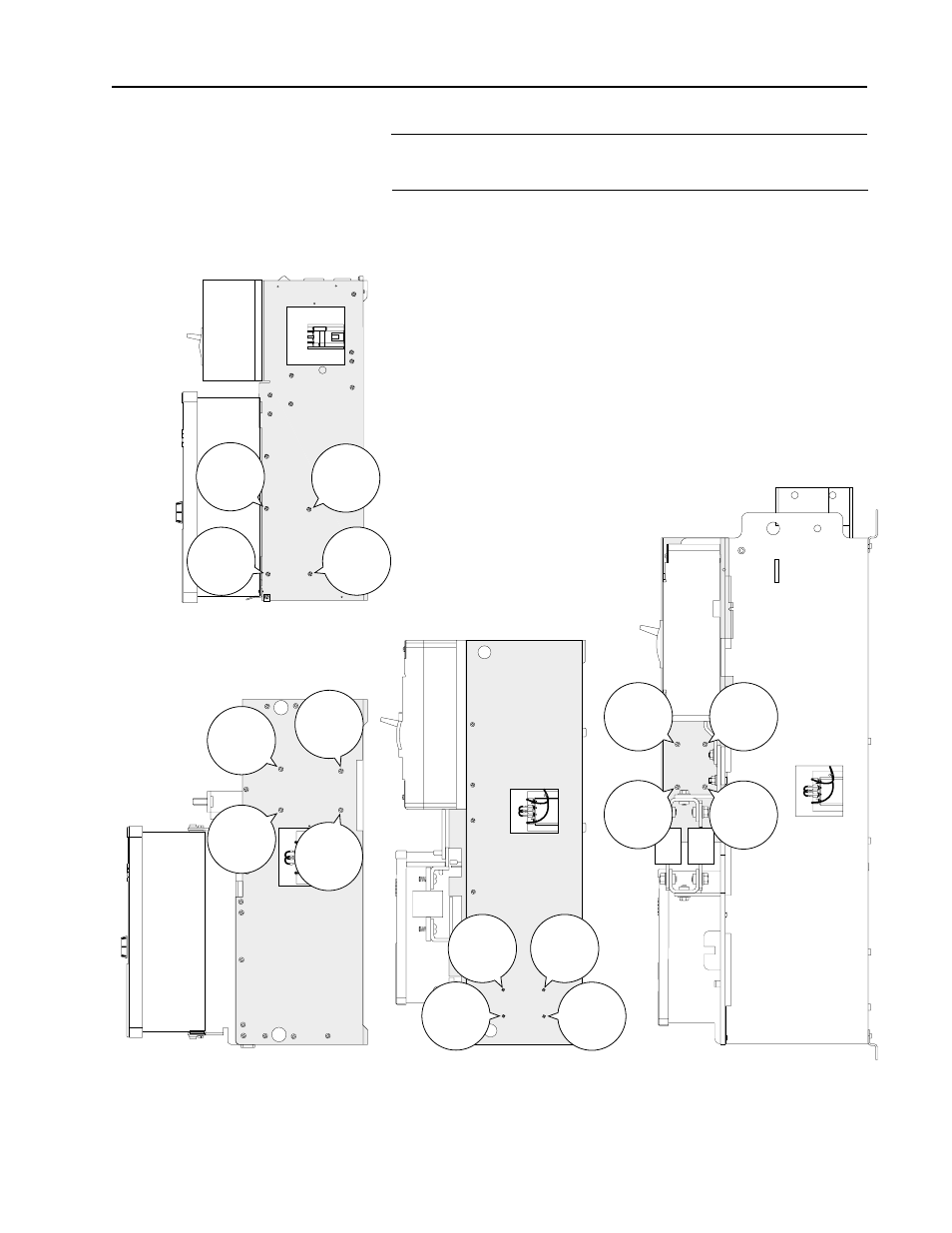

To remove either the Fixed or Regulated Field Supply, remove
the (4) retaining screws from the outside right side panel.
Installation, Cont’d
