4
1336 PLUS II Firmware Download Module

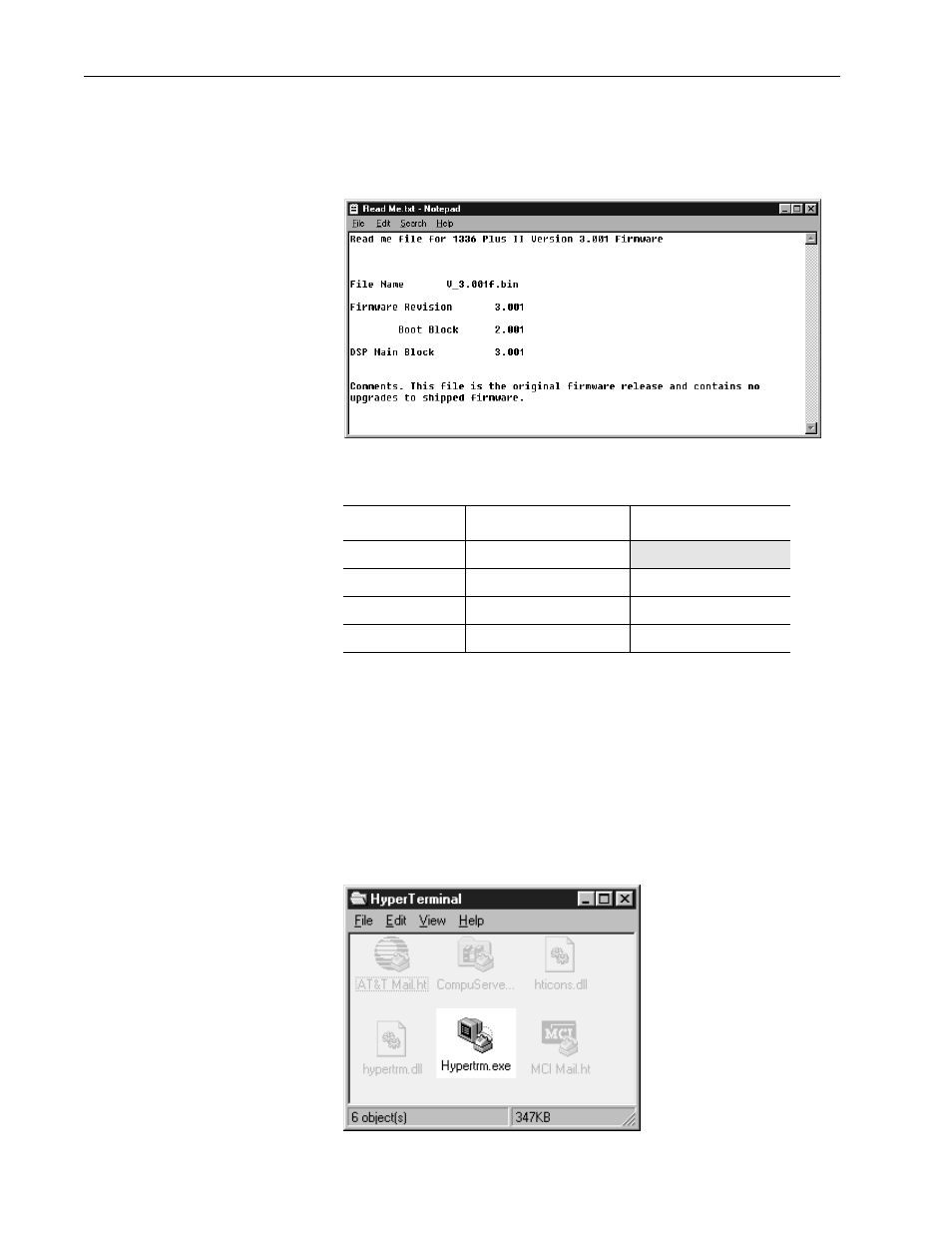

9. Locate the readme file on your computer using Windows Explorer.
“Double-click” on the file to open/view it. The file information will be
displayed on the screen, along with any notes concerning software
changes or installation tips.
Record the information below and close the window.
Establishing
Communications with the
Drive
Setting Up the Communications Program
10.Start the XMODEM communications program. The following examples
demonstrate the use of HyperTerminal (supplied with Windows 95
operating system). Other programs will be similar.
From the Start menu, choose:
“Programs -> Accessories -> HyperTerminal”
11.With the Hyperterminal window active, double click the Hypertrm.exe
icon
Item
Readme File Information
Current Drive Firmware
(will be completed in Step 15)
File Name
Firmware Revision
Boot Block
DSP Main Block
