Figure 2.3 • overall dimensions – Rockwell Automation 1519 MV DRIVE HARMONIC FILTER PF CORRECTION UNIT User Manual
Page 15
1519-5.0 – May 1998
Physical Layout and Component Identification
2-5

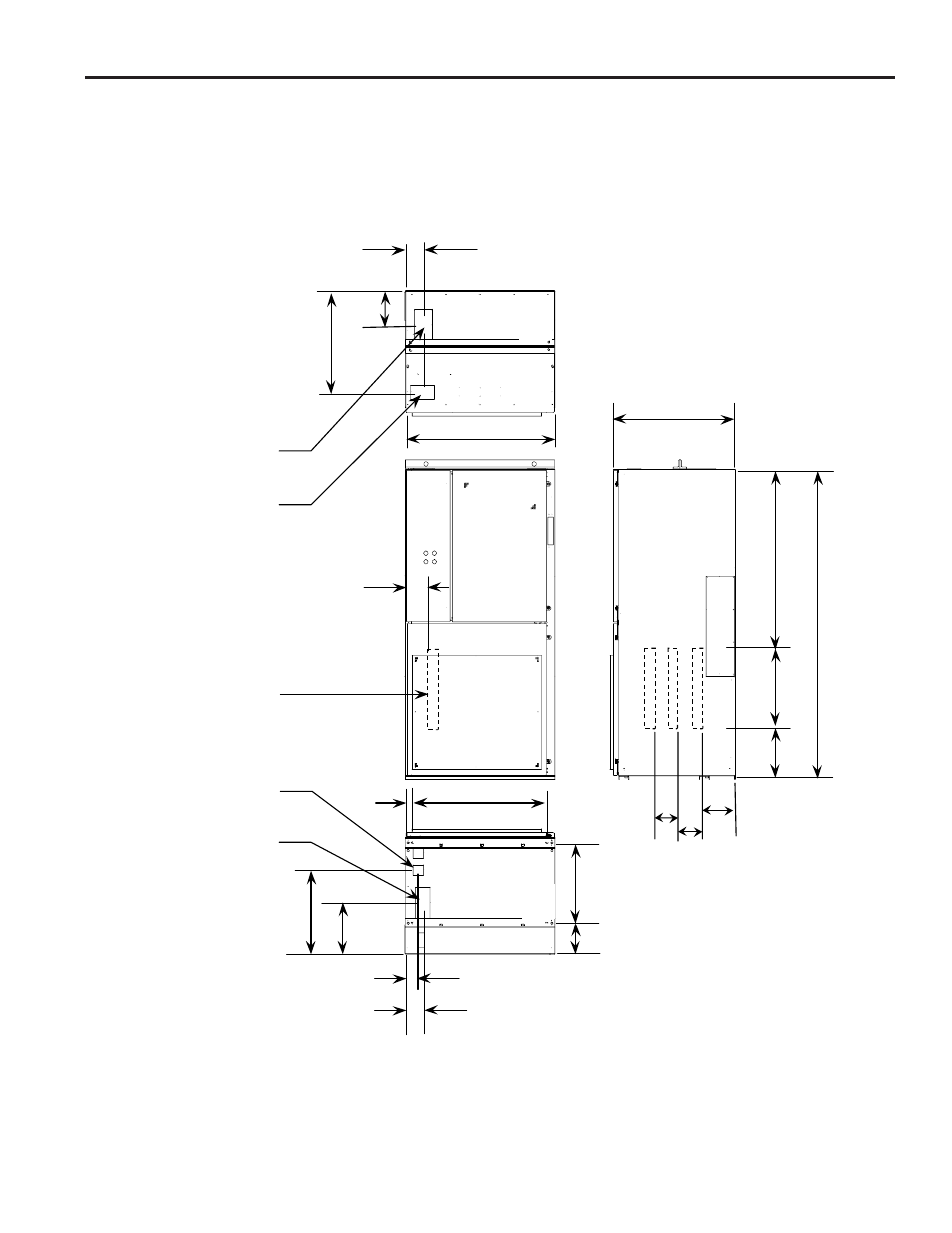

Figure 2.3
Overall Dimensions
Note:
Dimensions are in inches (mm).
+
+
+
+
+
+
+
30.1 (765)
10.4 (264)
16 (406)
19 (482)
56 (1422)
91 (2311)
23.7 (602)
9.3 (236)
Anchor Holes
44 (1118)
5.4 (137)
4.6 (117)
4.25 x 9 (108 x 229)
Power Cable Opening
3 x 6 (76 x 152)
Control Wire Opening
Customer Terminals
3 x 3 (76 x 76)
Control Wire Opening
4.25 x 9 (108 x 229)
Power Cable Opening
2.3
(58)
39.4 (1001)
Anchor Holes
4 (102)
5 (127)
12
(305)
6.5
(165)
6.5
(165)
36 (914)
15.5 (394)
25 (635)
