Allen-Bradley, a Rockwell Automation Business, has been helping its customers improve
productivity and quality for more than 90 years. We design, manufacture and support a
broad range of automation products worldwide. They include logic processors, power and
motion control devices, operator interfaces, sensors and a variety of software. Rockwell is
one of the world’s leading technology companies.
Allen-Bradley Headquarters, 1201 South Second Street, Milwaukee, WI 53204 USA, Tel: (1) 414 382-2000 Fax: (1) 414 382-4444
• Prompt information on price and availability • Quick turnaround on approval drawings Quick Information
Turnaround
Complete and Detailed
Product Documentation All Allen-Bradley Configured Drives are supplied
with complete, order-specific drawings and standard
instruction manuals. Special documentation and test requirements will also be supplied as requested.
Support publications are available to assist in custom
configuration and ordering special drive packages.
Flexible Packaging and
Option Choices The Configured Drives Program allows you to order
specifically configured drives packages that exceed the
offerings of a standard drive product. The expanded
options list includes control, communications, power,
packaging and documentation. Packaging is available
in NEMA Type1 or 4/12 enclosures. The capabilities of this program range from supplying
simple, commonly requested pre-engineered options to
more complex, specifically engineered requirements.
Publication 1305-1.3 – August 1997. Supersedes March 1996

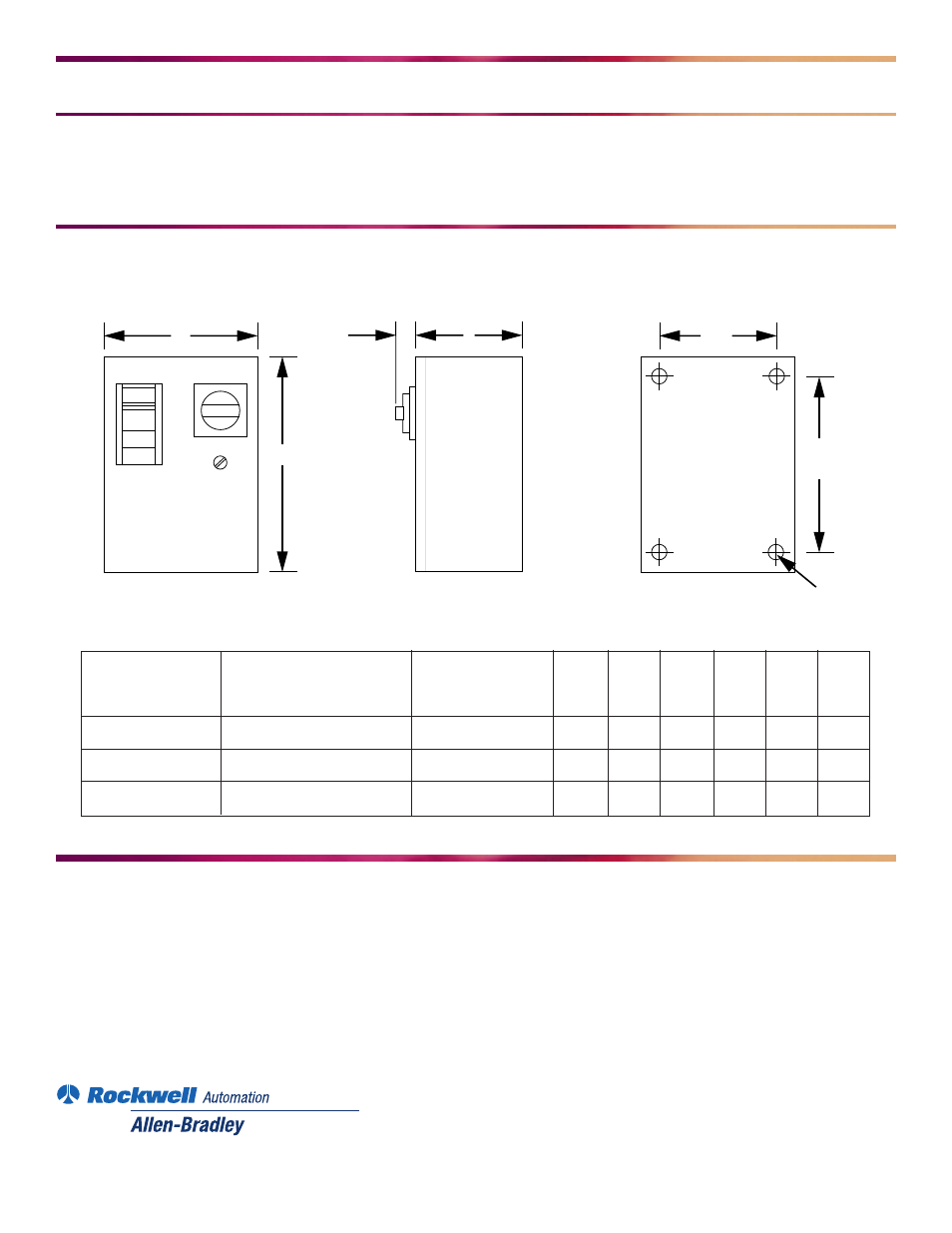

A
B
D
G
4 Mounting holes
E C H➀
SIDE VIEW FRONT VIEW BACK VIEW
➀
HIM
Option Combinations Special Rule #1 – A B C D E G H
Not Covered By Any Option Combination Height Width Depth Dia. ➀
Special Rule #1 That Includes Bypass mm mm mm mm mm mm mm
(inches) (inches) (inches) (inches) (inches) (inches) (inches)
1/2 – 1 HP – 350 400 232.7 315 177.8 6.4 40.5
(13.78) (15.75) (9.16) (12.4) (7.0) (0.25) (1.594)
2 – 5 HP 208/230V 1/2 – 2 HP 609.6 406.4 223.7 571.5 368.3 12.7 40.5
380/460V 1/2 – 3 HP (24) (16) (8.81) (22.5) (14.5) (0.5) (1.594)
– 208/230V 3 HP 762 609.6 300 723.9 571.5 12.7 40.5
380/460V 5 HP (30) (24) (11.81) (28.5) (22.5) (0.5) (1.594)
➀ Disconnect switch or circuit breaker operating handle
