Rockwell Automation Publication 1608P-UM003A-EN-P - September 2013 9
Installation Chapter 2
Electrical Terminations The ProDySC must be installed by a qualified electrician, in compliance with all
local and national electric codes. The ProDySC input (line) and output (load)
terminals are located behind the right door. Terminal details are shown in
Figure 5 on page 12 .
Accessing Terminations For top entry remove the top gland plate, shown in Figure 2 , to access input and
output terminals. This plate may be removed for drilling or punching holes for
conduit. Alternate bottom entry should utilize the bottom gland plate shown in
Figure 1 . Access to the communications port is above the front doors, as shown in
Figure 6 on page 13 . A separate conduit knock-out is provided for top entry of
communications conductors, as shown in Figure 2 .
Note: When punching or drilling holes for conduit fittings, take care to avoid
dropping metallic particles inside the enclosure. Metallic contamination will void
the product warranty.

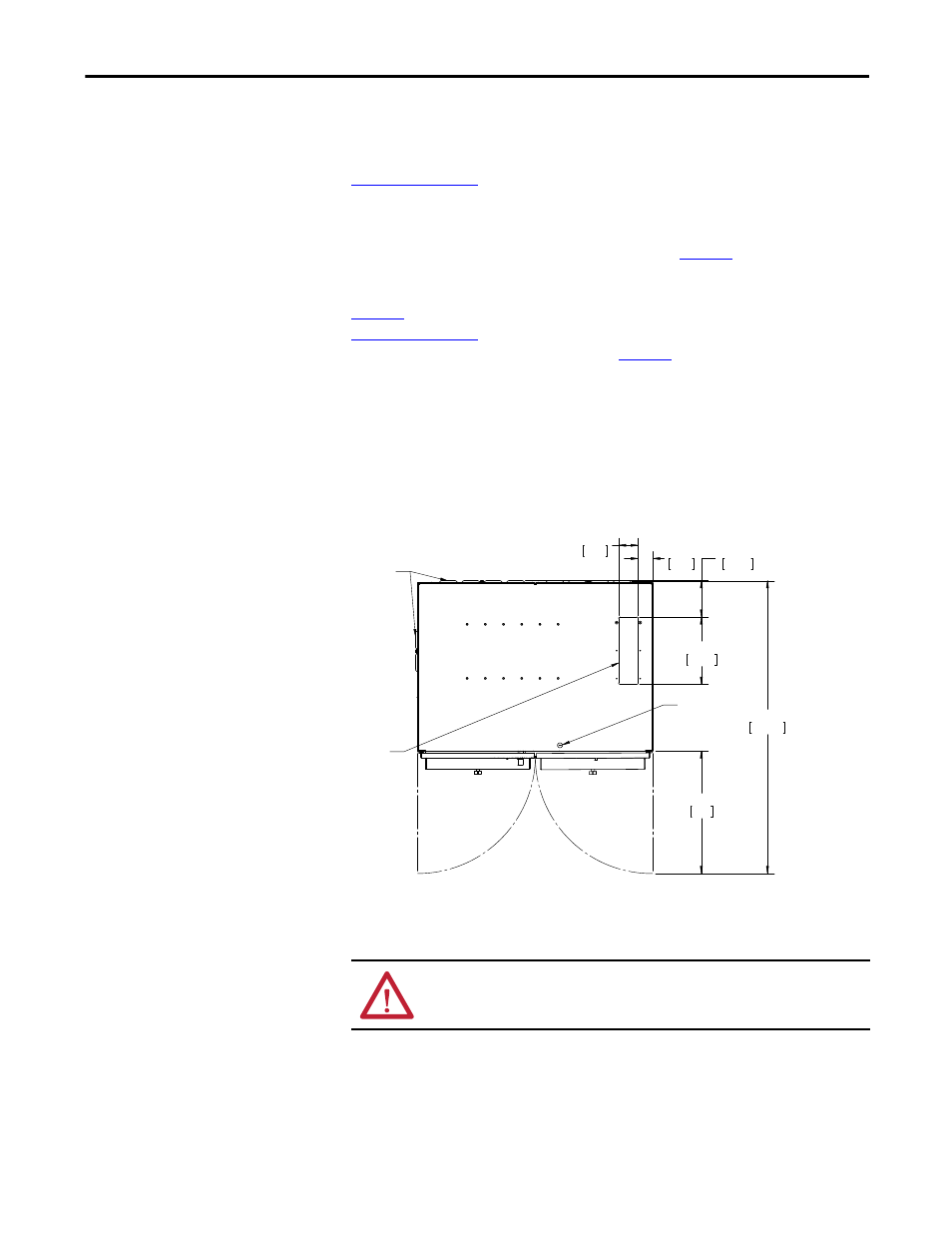

Figure 2 - Top Conductor Entry
$5($
5(&200(1'('
)25723
&21'8,7(175<
6+2:1:,7+287
&29(5
0,1,080
>@&/($5$1&(
72%(0$,17$,1('
)5206,'($1'%$&.
/289(5('9(176
)253523(5&22/,1*
'2256:,1*
,2.12&.287
WARNING: Metallic particles inside the enclosure will void the warranty.
