Bulletin 1400
Power Monitoring Products
Instruction Sheet
3
Use the following table to change the default configuration.
8 7 6 5 4 3 2 1
SW1
(1 = On)
not used
set=1
RIO rack address 0–63 (00–77 octal)
8 7 6 5 4 3 2 1
SW2
(1 = On)
not
used
set=1 last
rack
0=no
1=yes last rack
6 5
0 0=hold
0 1=low
1 0=high
1 1=hold data rate
4 3
0 0=57.6kBaud
0 1=115kBaud
1 0=230kBaud
1 1=230kBaud group number
2 1
0 0=group 0
0 1=group 2
1 0=group 4
1 1=group 6

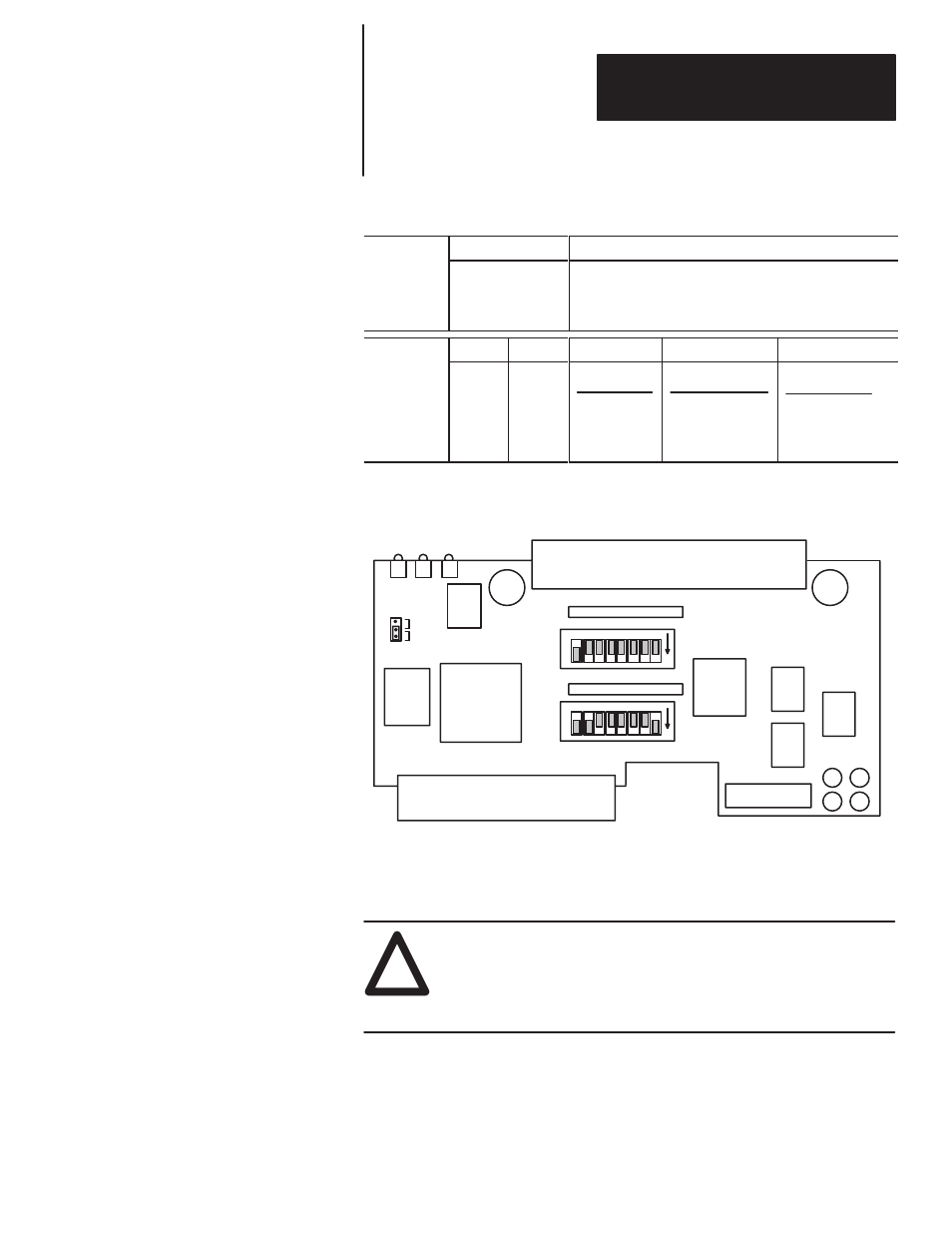

Figure 2
Communications Card Jumper and Switch Locations
J1
RS 485
RS 232
SW2
SW1
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
1. Make sure that all power to the Powermonitor Display/Block Module
is off.
!
ATTENTION: Voltages may still be present when supply power
is turned off to the unit. The unit will generally be powered by
one source and monitoring another source. Turn off or
disconnect all voltages applied to the unit. Failure to do so may
result in personal injury or death.
2. If field retrofitting a Powermonitor Display/Block Module, first remove
the communications port cover plate on the rear cover of the
Powermonitor Display/Block Module.
Reinstalling (or Field
Retrofitting) the
Communications Card
