Connecting Power and Equipment to the UPS
1. Hardwire the UPS (see Hardwiring).
2. Connect equipment to the UPS.
3. Turn on all connected equipment. To use the UPS as a master on/off switch, be sure that all
connected equipment is switched ON.
4. Press the button on the front panel to power up the UPS.
• The battery charges to 90% capacity during the first three hours of normal operation. Do not
expect full battery run capability during this initial charge period.
O PTIONS
q External Battery Pack (1609-PXBP)
q Rail Installation Kit (1609-PRK1)
q Isolation Transformer (1609-5000CCT)

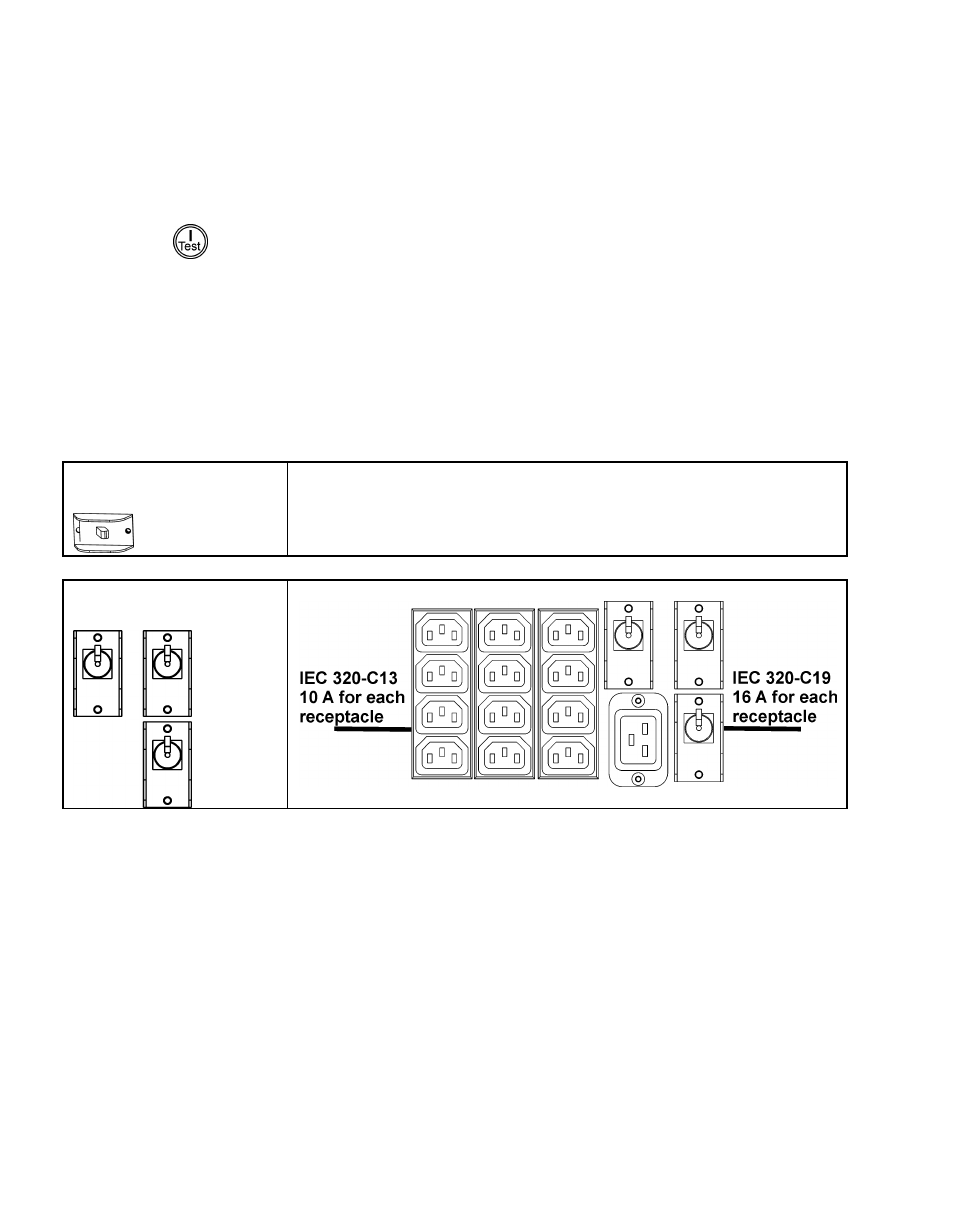

C IRCUIT B REAKERS
Input Circuit Breaker
8000/10000 VA The UPS is protected from extreme overloads when in ON position.
The breaker must be on for the UPS to operate.
Output Circuit Breaker
8000/10000 VA
